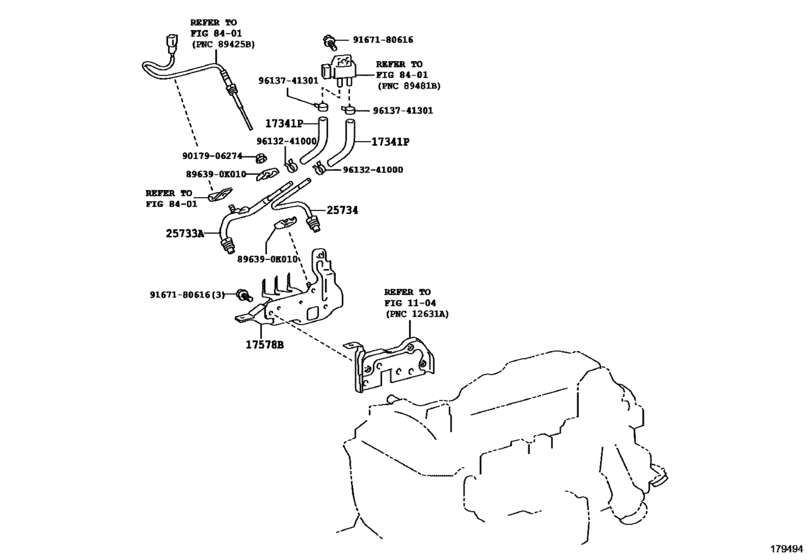

| 17341-11460 |
Hose, Air |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 17578-11050 |
Clamp, Pipe |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 17696-11020 |
Bracket, Gas Filter |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25706-0E010 |
Pipe Sub-Assy, Vacuum Transmitting, No.1 |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25733-0E010 |
Pipe, Vacuum, No.1 |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25734-0E010 |
Pipe, Vacuum, No.2 |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25761-11010 |
Hose, Vaccum Transmitting, No.1 |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25771-11030 |
Hose, Vaccum Transmitting, No.2 |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25781-11010 |
Hose, Vacuum Transmitting, No.3 |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25781-11020 |
Hose, Vacuum Transmitting, No.3 |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25804-11010 |
Valve Set, Vacuum Control |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25804-11020 |
Valve Set, Vacuum Control |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25860-30070 |
Valve Assy, Vacuum Switching |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 25860-30160 |
Valve Assy, Vacuum Switching |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 89639-0K010 |
Wire, Brake Control |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 90179-06274 |
Nut |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 90466-07002 |
Clamp Or Clip(For Air Hose) |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 90917-11038 |
Filter, Gas, No.1 |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 90999-92002 |
Air Hose (300 mm) |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 91671-80616 |
BOLT FLANGE |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 96132-41000 |
Clip, No.1(For Idle-Up Hose) |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
| 96137-41301 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Vacuum Piping ([01.2017 - ] (1701- )1GDFTV) |
