GDH201

Toyota HIACE · 2017 · 3,172 parts · 182 categories

3,172 items

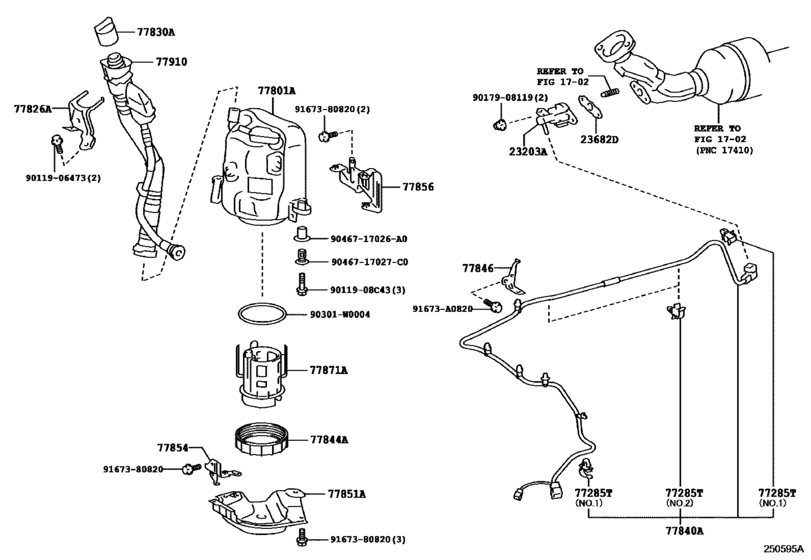

Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV) 24

#	OEM	Part name
23203	23203-11020	Injector Set, Urea
23203	23203-11021	Injector Set, Urea
23682	23682-11010	Gasket, Nozzle Holder
77285	77285-26140	Clamp, Urea Tube, No.1
77285	77285-26150	Clamp, Urea Tube, No.1
77801	77801-26030	Tank Sub-Assy, Urea
77826	77916-26010	Support, Urea Tank Filler Pipe, No.1
77830	77830-60010	Cap Assy, Urea Tank
77840	77840-26020	Tube Assy, Urea W/heater
77844	77844-60010	Retainer, Urea Pump Gage
77846	77846-26010	Bracket, Urea Tube, No.1
77851	77851-26020	Protector, Urea Tank
77854	77854-26010	Bracket, Urea Tank Protector, Front No.1
77856	77856-26010	Bracket, Urea Tank Protector, Rear No.1
77871	77871-26010	Pump, Urea
77910	77910-26020	Pipe Assy, Urea Tank Filler
90301	90301-W0004	RING O
91673	91673-A0820	BOLT FLANGE
9011908	90119-08C43	New Genuine Part
9011906473	90119-06473	BOLTWWASHER
9017908119	90179-08119	NUT
9046717026	90467-17026-A0	Clip, No.1(For Front Fender Seal)
9046717027	90467-17027-C0	Clip, No.2(For Front Fender Seal)
9167380820	91673-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
23203-11020	Injector Set, Urea	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
23203-11021	Injector Set, Urea	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
23682-11010	Gasket, Nozzle Holder	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77285-26140	Clamp, Urea Tube, No.1	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77285-26150	Clamp, Urea Tube, No.1	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77801-26030	Tank Sub-Assy, Urea	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77830-60010	Cap Assy, Urea Tank	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77840-26020	Tube Assy, Urea W/heater	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77844-60010	Retainer, Urea Pump Gage	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77846-26010	Bracket, Urea Tube, No.1	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77851-26020	Protector, Urea Tank	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77854-26010	Bracket, Urea Tank Protector, Front No.1	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77856-26010	Bracket, Urea Tank Protector, Rear No.1	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77871-26010	Pump, Urea	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77910-26020	Pipe Assy, Urea Tank Filler	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
77916-26010	Support, Urea Tank Filler Pipe, No.1	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
90119-06473	BOLTWWASHER	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
90119-08C43	New Genuine Part	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
90179-08119	NUT	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
90301-W0004	RING O	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
90467-17026-A0	Clip, No.1(For Front Fender Seal)	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
90467-17027-C0	Clip, No.2(For Front Fender Seal)	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
91673-80820	Bolt (For Transmission Control Cable Bracket)	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
91673-A0820	BOLT FLANGE	Urea Tank & Tube ([01.2017 - ] (1701- )1GDFTV)
