GDH201

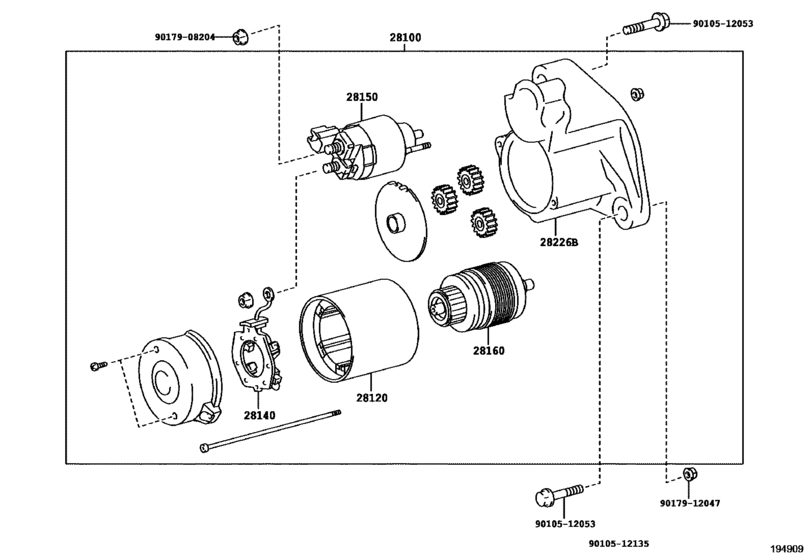

Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) 11
| # | OEM | Part name |
|---|---|---|
| 28100 | 28100-11190 | Starter Assy |
| 28120 | 28120-0L180 | Yoke Assy, Starter |
| 28140 | 28140-0L180 | Holder Assy, Starter Brush |
| 28150 | 28150-40090 | Switch Assy, Magnet Starter |
| 28160 | 28160-37100 | Armature Assy, Starter |
| 28226 | 28226-0L180 | Starter Kit, Repair Service |
| 9010512053 | 90105-12053 | Bolt (For Rear Differential Carrier) |
| 9010512135 | 90105-12135 | Bolt(For Rear Transaxle Case Cover) |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| 9017912047 | 90179-12047 | Nut(For Front Stabilizer Link) |
| OEM | Part name | Category |
|---|---|---|
| 28100-11190 | Starter Assy | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 28120-0L180 | Yoke Assy, Starter | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 28140-0L180 | Holder Assy, Starter Brush | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 28150-40090 | Switch Assy, Magnet Starter | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 28160-37100 | Armature Assy, Starter | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 28226-0L180 | Starter Kit, Repair Service | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 90080-18070 | NUT, WWASHER | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 90105-12053 | Bolt (For Rear Differential Carrier) | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 90105-12135 | Bolt(For Rear Transaxle Case Cover) | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 90179-08204 | Nut | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
| 90179-12047 | Nut(For Front Stabilizer Link) | Starter ([12.2016 - ] 12V 2.0KW (1612- )1GDFTV) |
