Search › Model › GDH201

GDH201

Toyota HIACE · 2017 · 3,172 parts · 182 categories

3,172 items

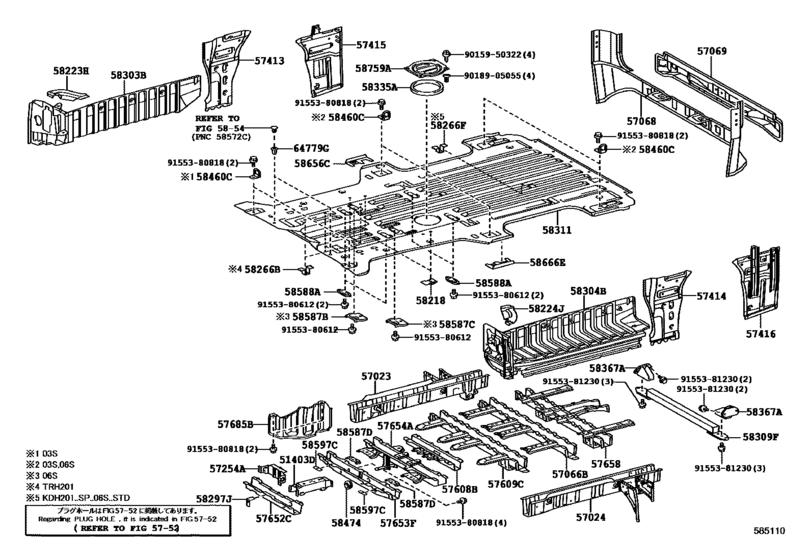

Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D) 42

#	OEM	Part name
51403	51403-26330	Bracket Sub-Assy, Engine Rear Mounting
57023	57023-26650	Member Sub-Assy, Rear Side, Rh
57024	57024-26660	Member Sub-Assy, Rear Side, Lh
57066	57066-26121	Member Sub-Assy, Rear Floor Cross, No.6
57068	57068-26230	Member Sub-Assy, Rear Floor Rear Cross, Inner
57069	57069-26140	Member Sub-Assy, Rear Floor Rear Cross, Outer
57254	57254-26041	Reinforcement, Engine Rear Mounting Member
57413	57405-26A80	Rail, Floor Side, Center Rh
57414	57406-26500	Rail, Floor Side, Center Lh
57415	57415-26210	Rail, Floor Side, Rear Rh
57416	57416-26160	Rail, Floor Side, Rear Lh
57608	57608-26301	Member Sub-Assy, Rear Floor Cross, No.4
57609	57609-26182	Member Sub-Assy, Rear Floor Cross, No.5
57652	57652-26120	Member, Rear Floor Cross, No.1
57653	57663-26031	Member, Rear Floor Cross, No.2
57654	57607-26A30	Member, Rear Floor Cross, No.3
57658	57067-26101	Member, Rear Floor Cross, No.7
58218	58218-26010	Plate, Seat Floor Panel
58223	58223-26071	Reinforcement, Floor Panel Side, Rh
58224	58224-26091	Reinforcement, Floor Panel Side, Lh
58266	58266-95J00	Bracket, Fuel Tube Clamp
58297	58297-26020	Retainer, Floor Clamp
58303	58303-26240	Step Sub-Assy, Rear Floor, Rh
58304	58304-26450	Step Sub-Assy, Rear Floor, Lh
58311	58311-26F81	Pan, Rear Floor
58335	58335-26030	Seal, Rear Floor Side Service Hole Cover
58460	58460-33010	Striker Assy, Luggage Hold Belt
58474	58474-26010	Cover, Inspection Hole
58587	58587-26060	Plate, No.3 Seat Leg Space Pocket, No.1 Rh
58587	58587-26080	Plate, No.3 Seat Leg Space Pocket, No.1 Lh
58587	58587-26010	Plate, No.3 Seat Leg Space Pocket, No.1
58588	58588-26010	Plate, No.3 Seat Leg Space Pocket, No.2
58597	58597-26030	Plate, Seat Track Set
58656	58656-26020	Plate, Rear Floor, Center Lower No.2 Rh
58666	58666-26010	Plate, Rear Floor, Center Lower No.2 Lh
58759	58759-26010	Cover, Fuel Tank Inspection Hole
64779	64779-26020	Clip(For Front Floor Carpet)
9015950322	90159-50322	SCREW WWASHER
9018905055	90189-05055	GROMMET
9155380612	91553-80612	BOLT FLANGE
9155380818	91553-80818	BOLT FLANGE
9155381230	91553-81230	BOLT FLANGE

OEM	Part name	Category
51403-26330	Bracket Sub-Assy, Engine Rear Mounting	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57023-26650	Member Sub-Assy, Rear Side, Rh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57024-26660	Member Sub-Assy, Rear Side, Lh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57066-26121	Member Sub-Assy, Rear Floor Cross, No.6	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57067-26101	Member, Rear Floor Cross, No.7	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57068-26230	Member Sub-Assy, Rear Floor Rear Cross, Inner	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57069-26140	Member Sub-Assy, Rear Floor Rear Cross, Outer	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57254-26041	Reinforcement, Engine Rear Mounting Member	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57405-26A80	Rail, Floor Side, Center Rh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57406-26500	Rail, Floor Side, Center Lh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57415-26210	Rail, Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57416-26160	Rail, Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57607-26A30	Member, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57608-26301	Member Sub-Assy, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57609-26182	Member Sub-Assy, Rear Floor Cross, No.5	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57652-26120	Member, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
57663-26031	Member, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58218-26010	Plate, Seat Floor Panel	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58223-26071	Reinforcement, Floor Panel Side, Rh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58224-26091	Reinforcement, Floor Panel Side, Lh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58266-95J00	Bracket, Fuel Tube Clamp	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58297-26020	Retainer, Floor Clamp	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58303-26240	Step Sub-Assy, Rear Floor, Rh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58304-26450	Step Sub-Assy, Rear Floor, Lh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58311-26F81	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58335-26030	Seal, Rear Floor Side Service Hole Cover	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58460-33010	Striker Assy, Luggage Hold Belt	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58474-26010	Cover, Inspection Hole	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58587-26010	Plate, No.3 Seat Leg Space Pocket, No.1	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58587-26060	Plate, No.3 Seat Leg Space Pocket, No.1 Rh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58587-26080	Plate, No.3 Seat Leg Space Pocket, No.1 Lh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58588-26010	Plate, No.3 Seat Leg Space Pocket, No.2	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58597-26030	Plate, Seat Track Set	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58656-26020	Plate, Rear Floor, Center Lower No.2 Rh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58666-26010	Plate, Rear Floor, Center Lower No.2 Lh	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
58759-26010	Cover, Fuel Tank Inspection Hole	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
64779-26020	Clip(For Front Floor Carpet)	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
90159-50322	SCREW WWASHER	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
90189-05055	GROMMET	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
91553-80612	BOLT FLANGE	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
91553-80818	BOLT FLANGE	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
91553-81230	BOLT FLANGE	Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )GDH201,KDH200,201,LH200,TRH200,201..5 D)
