GDH201

Toyota HIACE · 2017 · 3,172 parts · 182 categories

← Back to categories

3,172 items

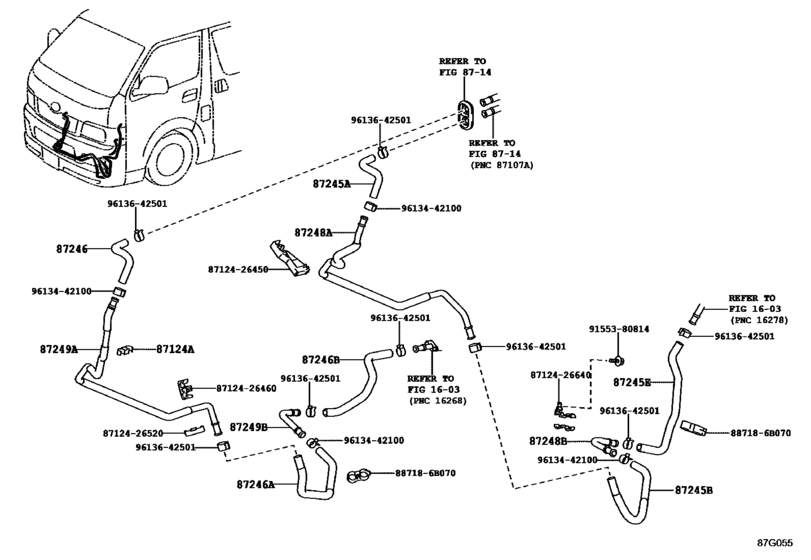

Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201) 18

#	OEM	Part name
87124	87124-25110	Clamp, Heater
87245	87245-26G50	Hose, Heater Water, Inlet A
87245	87245-26J10	Hose, Heater Water, Inlet B
87245	87245-26J30	Hose, Heater Water, Inlet E
87246	87245-26G60	Hose, Heater Water, Outlet
87246	87245-26J20	Hose, Heater Water, Outlet A
87246	87245-26J40	Hose, Heater Water, Outlet B
87248	87248-26A30	Pipe, Heater Water Inlet, A
87248	87248-26A70	Pipe, Heater Water Inlet, B
87249	87248-26870	Pipe, Heater Water Outlet, A
87249	87248-26A60	Pipe, Heater Water Outlet, B
887186	88718-6B070	Pipe, Cooler Refrigerant Suction, No.2
8712426450	87124-26450	Clamp, Heater
8712426460	87124-26460	Clamp, Heater
8712426520	87124-26520	Clamp, Heater
9155380814	91553-80814	BOLT FLANGE
9613442100	96134-42100	Clip(For Water By-Pass Hose Assy)
9613642501	96136-42501	Clip(For Ventilation Hose)

OEM	Part name	Category
87124-25110	Clamp, Heater	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87124-26450	Clamp, Heater	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87124-26460	Clamp, Heater	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87124-26520	Clamp, Heater	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87245-26G50	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87245-26G60	Hose, Heater Water, Outlet	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87245-26J10	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87245-26J20	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87245-26J30	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87245-26J40	Hose, Heater Water, Outlet B	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87248-26870	Pipe, Heater Water Outlet, A	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87248-26A30	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87248-26A60	Pipe, Heater Water Outlet, B	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
87248-26A70	Pipe, Heater Water Inlet, B	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
88718-6B070	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
91553-80814	BOLT FLANGE	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
96134-42100	Clip(For Water By-Pass Hose Assy)	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
96136-42501	Clip(For Ventilation Hose)	Heating & Air Conditioning - Water Piping ([12.2016 - ] FRONT (1612- )GDH201)
