| 88374-30010 |
Valve, Service, No.1 |

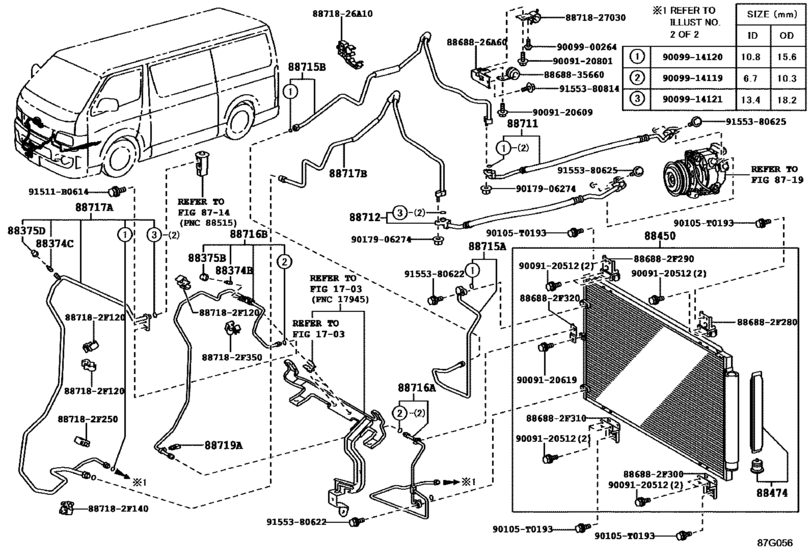

Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88375-30280 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88375-30290 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88450-26120 |
Condenser Assy, W/receiver |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88474-17010 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88688-2F280 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88688-2F290 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88688-2F300 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88688-2F310 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88688-2F320 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88688-35660 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88710-2F631 |
Pipe, Cooler Refrigerant Liquid, A |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88711-26A00 |
Hose, Cooler Refrigerant Discharge, No.1 |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88712-26A00 |
Hose, Cooler Refrigerant Suction, No.1 |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88715-26390 |
Pipe, Cooler Refrigerant Discharge, A |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88715-26540 |
Pipe, Cooler Refrigerant Discharge, B |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88716-2N120 |
Pipe, Cooler Refrigerant Liquid, B |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88717-26A10 |
Pipe, Cooler Refrigerant Suction, B |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88717-2F650 |
Pipe, Cooler Refrigerant Suction, A |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88718-27030 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88718-2F120 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88718-2F140 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88718-2F250 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88718-2F350 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 88719-33020 |
Sensor, Airconditioner Pressure |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90091-20512 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90091-20609 |
BOLT |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90091-20619 |
BOLT |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90091-20801 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90099-00264 |
SCREW |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90105-T0193 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 90179-06274 |
Nut |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 91511-B0614 |
BOLT, FLANGE |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 91553-80622 |
BOLT FLANGE |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 91553-80625 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
| 91553-80814 |
BOLT FLANGE |
Heating & Air Conditioning - Cooler Piping ([12.2016 - ] FRONT:DUAL A/C (1612- )GDH201) |
