Search › Model › GDH201

GDH201

Toyota HIACE · 2017 · 3,172 parts · 182 categories

3,172 items

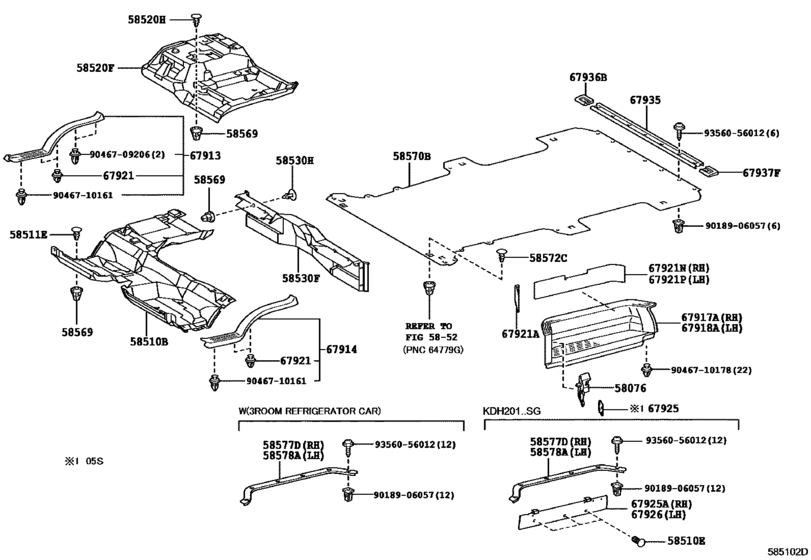

Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S) 23

#	OEM	Part name
58076	58076-26010-B1	Cover Sub-Assy, Jack Box Hole
58076	58076-26020-B1	Cover Sub-Assy, Jack Box Hole
58510	58510-26Q10-B0	Mat, Front Floor, Front
58511	64726-26010-B1	Clip(For Front Floor Mat)
58520	58520-26630-B0	Mat Assy, Engine Cover
58530	58530-26T60-B0	Mat Assy, Header
58569	64779-26020	Clip(For Front Floor Carpet)
58570	58517-26C61-B1	Mat Assy, Rear Floor
67913	67913-26082-B1	Plate, Front Door Scuff, Rh
67914	67914-26062-B1	Plate, Front Door Scuff, Lh
67917	67917-26080-B0	Plate, Rear Door Scuff, Rh
67918	67918-26170-B0	Plate, Rear Door Scuff, Lh
67921	67771-26240	Retainer, Door Trim
67921	67921-26040	Pad, Center Door Scuff Plate
67921	67921-26110	Pad, Center Door Scuff Plate, Rh
67935	67935-26190	Plate, Back Door Scuff
67936	67936-26040-B1	Cover, Back Door Scuff Side, Rh
67937	67937-26040-B1	Cover, Back Door Scuff Side, Lh
9018906057	90189-06057	GROMMET
9046709206	90467-09206	Clip, Front Air Shutter Seal
9046710161	90467-10161	Clip
9046710178	90467-10178	CLIP
9356056012	93560-56012	Screw

OEM	Part name	Category
58076-26010-B1	Cover Sub-Assy, Jack Box Hole	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
58076-26020-B1	Cover Sub-Assy, Jack Box Hole	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
58510-26Q10-B0	Mat, Front Floor, Front	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
58517-26C61-B1	Mat Assy, Rear Floor	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
58520-26630-B0	Mat Assy, Engine Cover	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
58530-26T60-B0	Mat Assy, Header	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
64726-26010-B1	Clip(For Front Floor Mat)	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
64779-26020	Clip(For Front Floor Carpet)	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67771-26240	Retainer, Door Trim	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67913-26082-B1	Plate, Front Door Scuff, Rh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67914-26062-B1	Plate, Front Door Scuff, Lh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67917-26080-B0	Plate, Rear Door Scuff, Rh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67918-26170-B0	Plate, Rear Door Scuff, Lh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67921-26040	Pad, Center Door Scuff Plate	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67921-26110	Pad, Center Door Scuff Plate, Rh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67935-26190	Plate, Back Door Scuff	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67936-26040-B1	Cover, Back Door Scuff Side, Rh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
67937-26040-B1	Cover, Back Door Scuff Side, Lh	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
90189-06057	GROMMET	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
90467-09206	Clip, Front Air Shutter Seal	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
90467-10161	Clip	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
90467-10178	CLIP	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)
93560-56012	Screw	Floor Mat & Silencer Pad ([12.2013 - ] (1312- )GDH201,KDH201..05S,06S)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 182
Collected: 2026-08-03
