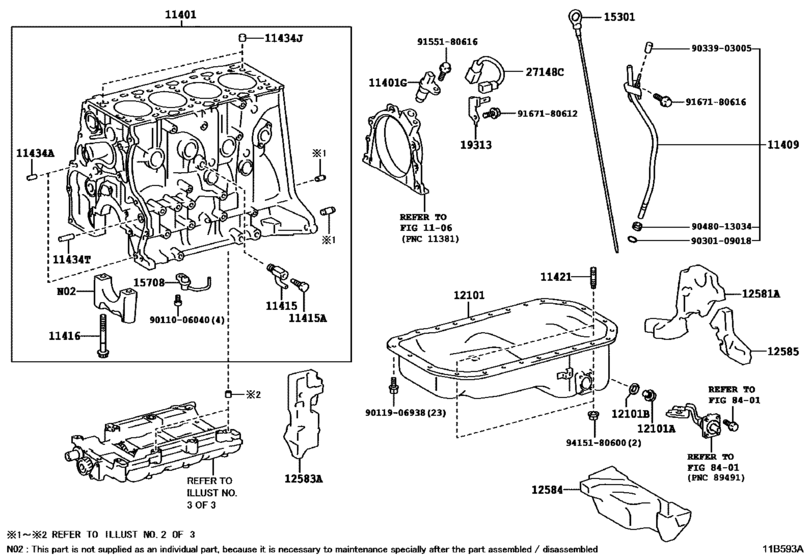

| 11401-80888 |
Block Sub-Assy, Cylinder |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 11409-11020 |
Guide Sub-Assy, Oil Level Gage |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 11991-11010 |
Plate, Balanceshaft Thrust, No.1 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 12101-11130 |
Pan Sub-Assy, Oil |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 12581-11020 |
Insulator, Cylinder Block, No.1 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 12583-11020 |
Insulator, Cylinder Block, No.3 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 12584-67030 |
Insulator, Cylinder Brock, No.4 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 12585-11020 |
Insulator, Cylinder Brock, No.5 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 13603-11010 |
Gear Sub-Assy, Balanceshaft |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 13620-11010 |
Balancer Assy, Engine |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 15301-11090 |
Gage Sub-Assy, Oil Level |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 15708-11010 |
Nozzle Sub-Assy, Oil, No.1 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 19313-11010 |
Bracket, Crank Position Sensor Harness |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 27148-11010 |
Wire, Connecting |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90110-06040 |
BOLT HEXAGON SOCKET |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90119-06938 |
BOLT WWASHER |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90126-06028 |
Bolt, Stud(For Oil Pan) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90250-06068 |
Pin, Straight |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90250-08120 |
Pin, Straight, No.1 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90250-10030 |
Pin, Straight(For Clutch Housing Set) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90250-10192 |
Pin, Straight(For Timing Gear Cover Set) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90253-13017 |
Pin, Ring W/head |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90253-15016 |
Pin, Straight(For End Plate) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90301-09018 |
Ring, O(For Timing Gear Case, Lower) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90339-03005 |
Plug, No.1 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90341-12012 |
Plug(For Oil Pan Drain) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90341-T0004 |
Plug(For Oil Pan Drain) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90430-12031 |
Gasket (For Oil Pan Drain Plug) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90480-13034 |
GROMMET |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90910-02191 |
Bolt(For Crankshaft Bearing Cap Set) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90910-09087 |
Plug, Water Drain Cock(For Cylinder Block) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90910-09128 |
Cock Sub-Assy, Water Drain(For Cylinder Block) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 90919-05073 |
Sensor, Camshaft Position - CRANK POSITION |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 91551-80616 |
BOLT FLANGE |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 91551-80816 |
Bolt(For Manual Transmission Oil Separator) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 91551-80850 |
Bolt, Compressor, No.1 |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 91552-F1055 |
BOLT FLANGE |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 91671-80612 |
Bolt |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 91671-80616 |
BOLT FLANGE |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Cylinder Block ([01.2017 - ] (1701- )1GDFTV) |
