| 09119-12012-000 |
BOLT(12X38) |

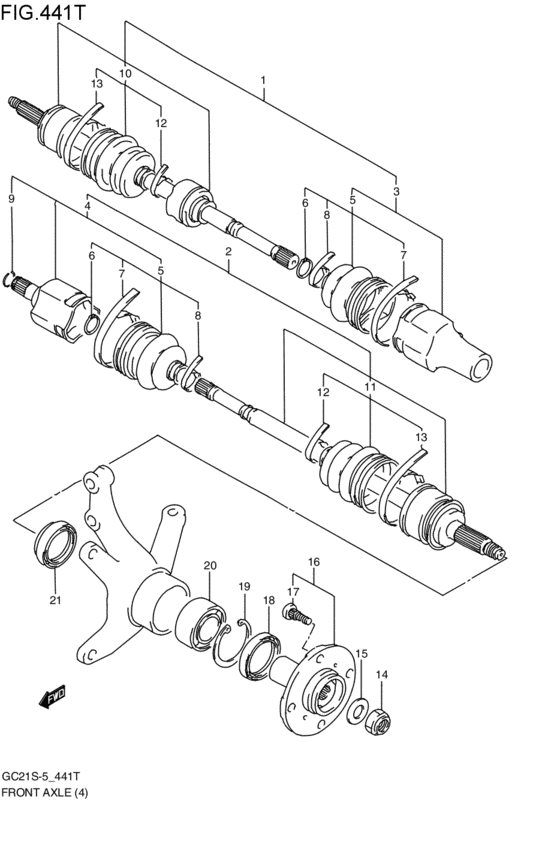

front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 09159-18008-000 |
NUT |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 09160-18017-000 |
WASHER(18X35X4) |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 09267-40001-000 |
BEARING(40X72X36) |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 09283-56002-000 |
SEAL,OIL(56X72.2X7.8) |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 09381-24001-000 |
RING,SNAP - Ring (od:24,d:1.6) |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 09381-72002-000 |
RING,SNAP |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 27182-70410-000 |
RING,SNAP - Snap ring |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 43420-50852-000 |
Hub,front wheel |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 43420-50853-000 |
HUB SET,FR WHL |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 43431-60G00-000 |
SEAL,FR WHL BRG INNER OIL |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44101-60G33-000 |
Shaft assy,front drive,r |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44102-60G30-000 |
Shaft assy,front drive,l |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44115-60G70-000 |
Joint assy,diff side |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44117-60G72-000 |
JOINT ASSY,DIFF SIDE |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44118-60G30-000 |
ブーツセット,ホイールサイド |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44118-60G72-000 |
BOOT SET,WHEEL SIDE |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44119-55G10-000 |
BOOT SET,DIFF SIDE |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44119-55GA0-000 |
BOOT SET,DIFF SIDE |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44119-60G70-000 |
BOOT SET DIFF SIDE |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44121-64B20-000 |
BAND,BOOT |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44123-53B10-000 |
BAND,BOOT SMALL |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
| 44222-51F00-000 |
BAND,BOOT |
front axle (G16A:AT; 2000-05-01~2002-07-01) |
