Search › Model › GD31S

GD31S

Suzuki CULTUS · 1996 · 2,611 parts · 125 categories

2,611 items

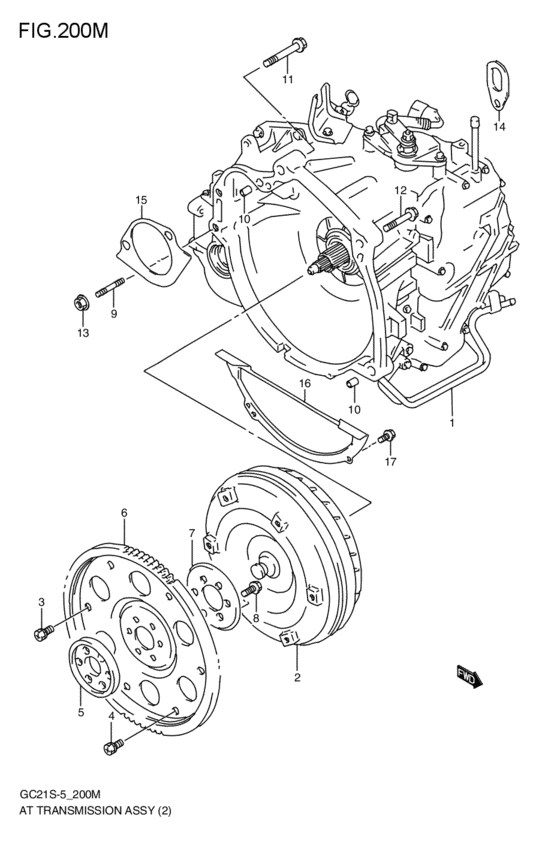

at - transmission assy (AT:G16A; 2000-05-01~2002-07-01) 22

#	OEM	Part name
1	20002-65GM0-000	トランスミッションアッシ,オートマチック
1	20002-65GM0-111	トランスミッションアッシ,オートマチック(リビルト)
2	22710-65G10-000	Converter comp,torque
3	09103-08516-000	BOLT(8X9.5)
4	09103-08517-000	BOLT(8X9.5)
5	22611-60G10-000	FLANGE,DRIVE PLATE FR
6	22620-60G11-000	PLATE,TC DRIVE
7	22631-61A00-000	FLANGE,T/C DRIVE PLATE RR
8	09100-10275-000	BOLT(10X18.5)
9	09108-12004-000	BOLT,STUD
10	09206-15001-000	PIN(12.4X15X17)
11	01550-12553-000	BOLT
11	01550-1255A-000	Bolt
12	01550-12753-000	BOLT
12	01550-1275A-000	Bolt
13	08316-10123-000	Nut
13	08316-1012A-000	NUT
14	11851-62B00-000	HOOK
15	11311-71C00-000	PLATE,STARTING MOTOR
16	11321-71C01-000	PLATE,CLUTCH HSG LOWER
17	02162-06103-000	Bolt - Bolt, bracket
17	02162-0610A-000	SCREW

OEM	Part name	Category
01550-12553-000	BOLT	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
01550-1255A-000	Bolt	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
01550-12753-000	BOLT	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
01550-1275A-000	Bolt	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
02162-06103-000	Bolt - Bolt, bracket	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
02162-0610A-000	SCREW	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
08316-10123-000	Nut	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
08316-1012A-000	NUT	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
09100-10275-000	BOLT(10X18.5)	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
09103-08516-000	BOLT(8X9.5)	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
09103-08517-000	BOLT(8X9.5)	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
09108-12004-000	BOLT,STUD	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
09206-15001-000	PIN(12.4X15X17)	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
11311-71C00-000	PLATE,STARTING MOTOR	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
11321-71C01-000	PLATE,CLUTCH HSG LOWER	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
11851-62B00-000	HOOK	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
20002-65GM0-000	トランスミッションアッシ,オートマチック	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
20002-65GM0-111	トランスミッションアッシ,オートマチック(リビルト)	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
22611-60G10-000	FLANGE,DRIVE PLATE FR	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
22620-60G11-000	PLATE,TC DRIVE	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
22631-61A00-000	FLANGE,T/C DRIVE PLATE RR	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)
22710-65G10-000	Converter comp,torque	at - transmission assy (AT:G16A; 2000-05-01~2002-07-01)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 125
Collected: 2026-08-01
