Search › Model › GD21S

GD21S

Suzuki CULTUS · 1994 · 2,573 parts · 105 categories

2,573 items

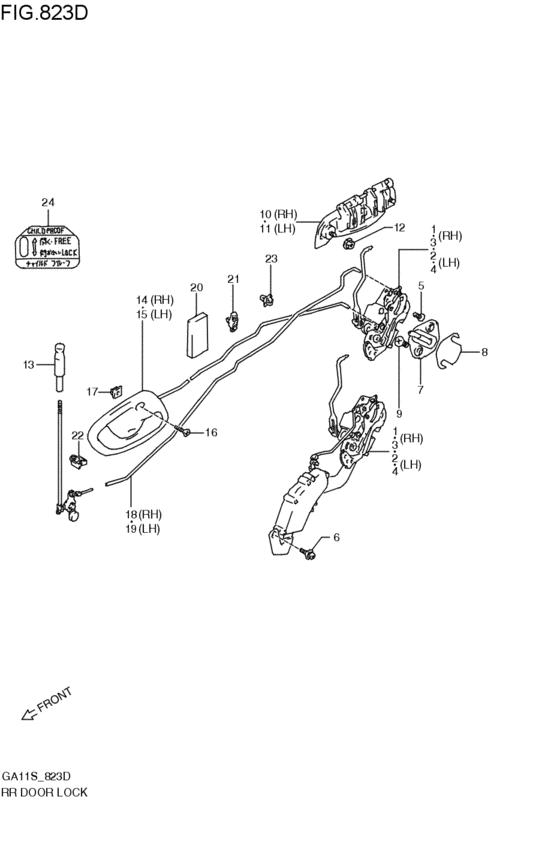

rear door lock (4DR; 1994-12-01~1996-03-01) 32

#	OEM	Part name
3	82301-60G10-000	LATCH ASSY,RR DR,R
4	82302-60G10-000	LATCH ASSY,RR DR,L
5	09137-06022-000	スクリュ
5	09137-06024-000	SCREW(6X18)
6	02112-76123-000	Screw
6	02112-7612B-000	SCREW
7	82610-60A01-000	STRIKER,FR DOOR LATCH
8	78199-78000-000	SPACER,DOOR LOCK STRIKER
9	09137-08011-000	SCREW(8X18)
10	82830-60G00-000	HANDLE COMP RR DOOR OUT RH
10	82830-60G00-5PK	HANDLE,RR DR OUTSIDE,R
11	82840-60G00-000	ハンドル,リヤドアアウトサイド,レフト
11	82840-60G00-5PK	HANDLE,RR DR OUTSIDE,L
12	08361-15063-000	Nut
12	08361-1506A-000	NUT
13	82982-51F00-5PK	KNOB INSIDE LOCK
13	82982-51F01-P4Z	KNOB,DOOR INSIDE LOCK
14	83103-60G00-5ES	ハンドル,リヤドアインサイド,ライト(ブラック)
14	83103-60G01-P4Z	HANDLE ASSY,RR DR INSIDE,R
14	83103-60G02-P4Z	HANDLE,RR DR INSIDE,R
15	83104-60G00-5ES	ハンドル,リヤドアインサイド,レフト(ブラック)
15	83104-60G01-P4Z	HANDLE ASSY,RR DR INSIDE,L
16	03121-05163-000	Screw
16	03121-0516A-000	SCREW
17	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
18	83240-60G01-000	ROD,RR DOOR INSIDE LOCK,R
19	83250-60G01-000	Rod,rr door inside lock,l
20	77591-75000-000	PAD
21	83271-50E00-000	CLIP,DR HANDLE ROD
22	83271-60D00-000	CLIP
23	09403-07324-000	CLAMP
24	86951-78004-000	CAUTION PLATE,CHILD PROOF

OEM	Part name	Category
02112-76123-000	Screw	rear door lock (4DR; 1994-12-01~1996-03-01)
02112-7612B-000	SCREW	rear door lock (4DR; 1994-12-01~1996-03-01)
03121-05163-000	Screw	rear door lock (4DR; 1994-12-01~1996-03-01)
03121-0516A-000	SCREW	rear door lock (4DR; 1994-12-01~1996-03-01)
08361-15063-000	Nut	rear door lock (4DR; 1994-12-01~1996-03-01)
08361-1506A-000	NUT	rear door lock (4DR; 1994-12-01~1996-03-01)
09137-06022-000	スクリュ	rear door lock (4DR; 1994-12-01~1996-03-01)
09137-06024-000	SCREW(6X18)	rear door lock (4DR; 1994-12-01~1996-03-01)
09137-08011-000	SCREW(8X18)	rear door lock (4DR; 1994-12-01~1996-03-01)
09403-07324-000	CLAMP	rear door lock (4DR; 1994-12-01~1996-03-01)
77591-75000-000	PAD	rear door lock (4DR; 1994-12-01~1996-03-01)
78199-78000-000	SPACER,DOOR LOCK STRIKER	rear door lock (4DR; 1994-12-01~1996-03-01)
82301-60G10-000	LATCH ASSY,RR DR,R	rear door lock (4DR; 1994-12-01~1996-03-01)
82302-60G10-000	LATCH ASSY,RR DR,L	rear door lock (4DR; 1994-12-01~1996-03-01)
82610-60A01-000	STRIKER,FR DOOR LATCH	rear door lock (4DR; 1994-12-01~1996-03-01)
82830-60G00-000	HANDLE COMP RR DOOR OUT RH	rear door lock (4DR; 1994-12-01~1996-03-01)
82830-60G00-5PK	HANDLE,RR DR OUTSIDE,R	rear door lock (4DR; 1994-12-01~1996-03-01)
82840-60G00-000	ハンドル,リヤドアアウトサイド,レフト	rear door lock (4DR; 1994-12-01~1996-03-01)
82840-60G00-5PK	HANDLE,RR DR OUTSIDE,L	rear door lock (4DR; 1994-12-01~1996-03-01)
82982-51F00-5PK	KNOB INSIDE LOCK	rear door lock (4DR; 1994-12-01~1996-03-01)
82982-51F01-P4Z	KNOB,DOOR INSIDE LOCK	rear door lock (4DR; 1994-12-01~1996-03-01)
83103-60G00-5ES	ハンドル,リヤドアインサイド,ライト(ブラック)	rear door lock (4DR; 1994-12-01~1996-03-01)
83103-60G01-P4Z	HANDLE ASSY,RR DR INSIDE,R	rear door lock (4DR; 1994-12-01~1996-03-01)
83103-60G02-P4Z	HANDLE,RR DR INSIDE,R	rear door lock (4DR; 1994-12-01~1996-03-01)
83104-60G00-5ES	ハンドル,リヤドアインサイド,レフト(ブラック)	rear door lock (4DR; 1994-12-01~1996-03-01)
83104-60G01-P4Z	HANDLE ASSY,RR DR INSIDE,L	rear door lock (4DR; 1994-12-01~1996-03-01)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	rear door lock (4DR; 1994-12-01~1996-03-01)
83240-60G01-000	ROD,RR DOOR INSIDE LOCK,R	rear door lock (4DR; 1994-12-01~1996-03-01)
83250-60G01-000	Rod,rr door inside lock,l	rear door lock (4DR; 1994-12-01~1996-03-01)
83271-50E00-000	CLIP,DR HANDLE ROD	rear door lock (4DR; 1994-12-01~1996-03-01)
83271-60D00-000	CLIP	rear door lock (4DR; 1994-12-01~1996-03-01)
86951-78004-000	CAUTION PLATE,CHILD PROOF	rear door lock (4DR; 1994-12-01~1996-03-01)
