GC416V

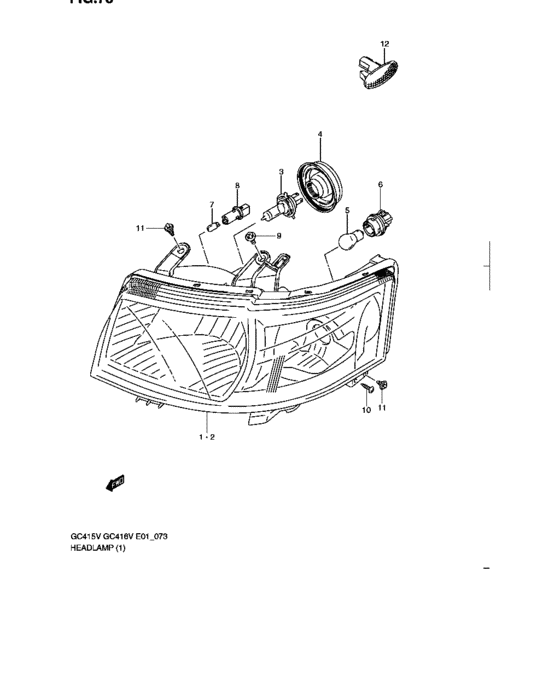

Headlamp (TYPE 1) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-61J10-000 | Unit, headlamp rh |
| 1 | 35120-61J00-000 | Unit, headlamp rh |
| 1 | 35120-61J20-000 | Unit, headlamp rh |
| 2 | 35320-61J10-000 | Unit, headlamp lh |
| 2 | 35320-61J00-000 | Unit, headlamp lh |
| 2 | 35320-61J20-000 | Unit, headlamp lh |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35125-61J00-000 | Cover, socket |
| 5 | 09471-12045-000 | BULB(12V21W) |
| 6 | 35118-61J00-000 | Socket, turn signal |
| 7 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 7 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 8 | 35118-61J10-000 | Socket, position lamp |
| 9 | 09122-76001-000 | SCREW(6X16) |
| 10 | 03541-0516A-000 | SCREW |
| 11 | 09409-07308-5PK | CLIP(BLACK) |
| 12 | 36410-63J01-000 | Lamp assy,side turn sig |
| 12 | 36410-63J02-000 | LAMP ASSY,SIDE TURN SIG |
| OEM | Part name | Category |
|---|---|---|
| 03541-0516A-000 | SCREW | Headlamp (TYPE 1) |
| 09122-76001-000 | SCREW(6X16) | Headlamp (TYPE 1) |
| 09409-07308-5PK | CLIP(BLACK) | Headlamp (TYPE 1) |
| 09471-12045-000 | BULB(12V21W) | Headlamp (TYPE 1) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Headlamp (TYPE 1) |
| 09471-12182-000 | BULB(12V60/55W,H4) | Headlamp (TYPE 1) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Headlamp (TYPE 1) |
| 35118-61J00-000 | Socket, turn signal | Headlamp (TYPE 1) |
| 35118-61J10-000 | Socket, position lamp | Headlamp (TYPE 1) |
| 35120-61J00-000 | Unit, headlamp rh | Headlamp (TYPE 1) |
| 35120-61J10-000 | Unit, headlamp rh | Headlamp (TYPE 1) |
| 35120-61J20-000 | Unit, headlamp rh | Headlamp (TYPE 1) |
| 35125-61J00-000 | Cover, socket | Headlamp (TYPE 1) |
| 35320-61J00-000 | Unit, headlamp lh | Headlamp (TYPE 1) |
| 35320-61J10-000 | Unit, headlamp lh | Headlamp (TYPE 1) |
| 35320-61J20-000 | Unit, headlamp lh | Headlamp (TYPE 1) |
| 36410-63J01-000 | Lamp assy,side turn sig | Headlamp (TYPE 1) |
| 36410-63J02-000 | LAMP ASSY,SIDE TURN SIG | Headlamp (TYPE 1) |
