| 01550-0625A-000 |
Bolt |

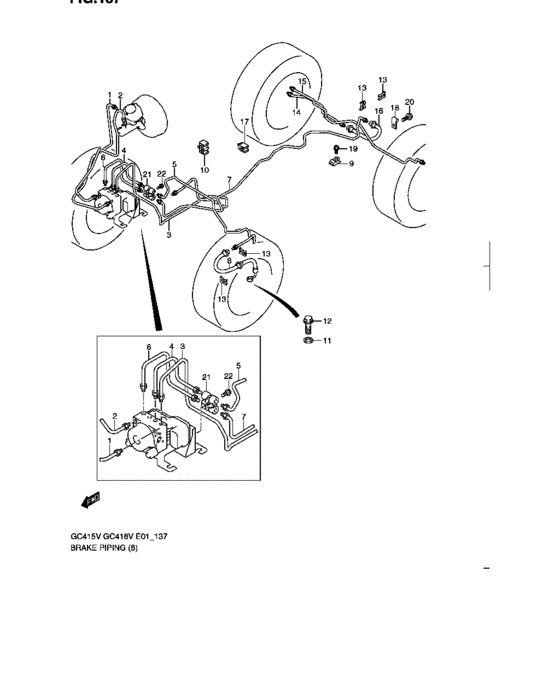

Brake piping (TYPE 2:RHD:W/ABS) |
| 02162-0610A-000 |
SCREW |
Brake piping (TYPE 2:RHD:W/ABS) |
| 02162-0616A-000 |
SCREW |
Brake piping (TYPE 2:RHD:W/ABS) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Brake piping (TYPE 2:RHD:W/ABS) |
| 09161-10009-000 |
WASHER(10X15X1.5) - Lock washer |
Brake piping (TYPE 2:RHD:W/ABS) |
| 09360-10046-000 |
Union bolt |
Brake piping (TYPE 2:RHD:W/ABS) |
| 09383-13003-000 |
E-RING |
Brake piping (TYPE 2:RHD:W/ABS) |
| 09403-06401-000 |
CLAMP |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51410-60KA0-000 |
Pipe, ma pri to unit |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51420-60KA0-000 |
Pipe, ma sec to unit |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51430-60KA0-000 |
Pipe, unit to fr brake hose rh |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51440-60KA0-000 |
Pipe, unit to joint front |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51445-60KA0-000 |
Pipe, joint to fr brake hose,lh |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51490-60KA0-000 |
Pipe, unit to joint rear |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51495-60KA0-000 |
Pipe, joint to rear bk |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51510-60K00-000 |
Pipe, rr brake hose to w/c |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51520-60K00-000 |
Pipe, rr w/c rh to lh |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51550-60K00-000 |
Hose, fr brake flexible |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51560-60K00-000 |
Hose, rr brake flexible |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51630-81K00-000 |
Joint, brake 4 way |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51751-60K00-000 |
Clamp, brake pipe axle no.2 |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51761-61J20-000 |
CLAMP,BK PIPE AXLE,R |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51761-61J21-000 |
Clamp,bk Pipe |
Brake piping (TYPE 2:RHD:W/ABS) |
| 51761-67H10-000 |
CLAMP,BK PIPE FRAME |
Brake piping (TYPE 2:RHD:W/ABS) |
