GC416T

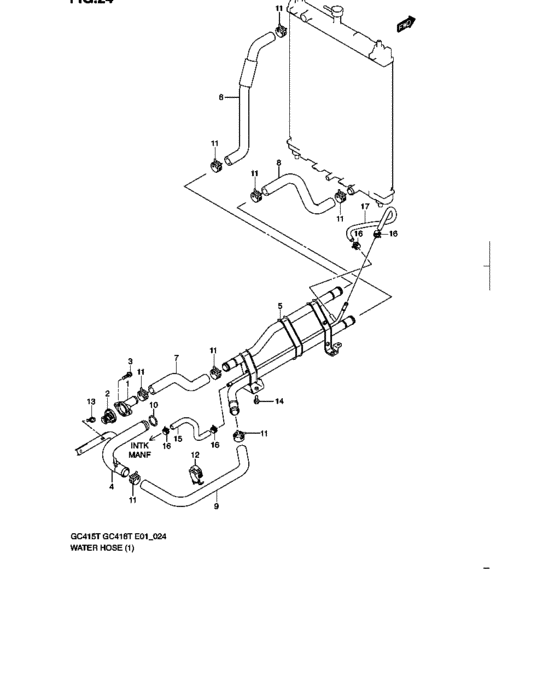

Water hose (N/HEATER) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 17561-61J00-000 | Cap, water thermostat |
| 2 | 17670-76A01-000 | Thermostat,water(82?c) |
| 2 | 17670-76A02-000 | THERMOSTAT,WATER 82 DEG |
| 3 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover |
| 4 | 17550-61J00-000 | PIPE,WATER INLET |
| 5 | 17820-61J10-000 | Pipe, water floor |
| 6 | 17846-61J00-000 | Hose, rdtr inlet |
| 7 | 17847-61J00-000 | Hose, rdtr inlet eng |
| 8 | 17856-61J00-000 | Hose, rdtr outlet |
| 9 | 17857-61J00-000 | Hose, rdtr outlet eng |
| 10 | 09280-28008-000 | O RING(D:3.5,ID:27.7) |
| 11 | 09401-30405-000 | CLIP |
| 12 | 09403-35301-000 | CLAMP |
| 13 | 02162-0610A-000 | SCREW |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 15 | 17874-61J00-000 | Hose, heater inlet eng |
| 16 | 09401-18403-000 | CLIP - Clip, heater hose |
| 17 | 17871-61J00-000 | Hose, wtr circulation |
| OEM | Part name | Category |
|---|---|---|
| 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Water hose (N/HEATER) |
| 02162-0610A-000 | SCREW | Water hose (N/HEATER) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Water hose (N/HEATER) |
| 09280-28008-000 | O RING(D:3.5,ID:27.7) | Water hose (N/HEATER) |
| 09401-18403-000 | CLIP - Clip, heater hose | Water hose (N/HEATER) |
| 09401-30405-000 | CLIP | Water hose (N/HEATER) |
| 09403-35301-000 | CLAMP | Water hose (N/HEATER) |
| 17550-61J00-000 | PIPE,WATER INLET | Water hose (N/HEATER) |
| 17561-61J00-000 | Cap, water thermostat | Water hose (N/HEATER) |
| 17670-76A01-000 | Thermostat,water(82?c) | Water hose (N/HEATER) |
| 17670-76A02-000 | THERMOSTAT,WATER 82 DEG | Water hose (N/HEATER) |
| 17820-61J10-000 | Pipe, water floor | Water hose (N/HEATER) |
| 17846-61J00-000 | Hose, rdtr inlet | Water hose (N/HEATER) |
| 17847-61J00-000 | Hose, rdtr inlet eng | Water hose (N/HEATER) |
| 17856-61J00-000 | Hose, rdtr outlet | Water hose (N/HEATER) |
| 17857-61J00-000 | Hose, rdtr outlet eng | Water hose (N/HEATER) |
| 17871-61J00-000 | Hose, wtr circulation | Water hose (N/HEATER) |
| 17874-61J00-000 | Hose, heater inlet eng | Water hose (N/HEATER) |
