GC416T

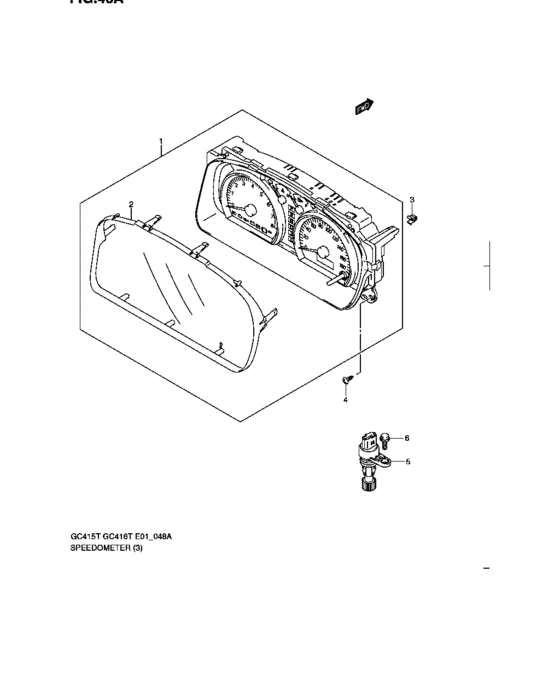

Speedometer (TYPE 2:W/TACHOMETER) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 34101-60KC0-000 | Speedometer assy - Kilo |
| 2 | 34112-60KA0-000 | Glass, meter window |
| 3 | 09409-08326-000 | CLIP |
| 4 | 03541-0516A-000 | SCREW |
| 5 | 34960-60K00-000 | SENSOR ASSY,SPEED |
| 6 | 01550-0616A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0616A-000 | Bolt | Speedometer (TYPE 2:W/TACHOMETER) |
| 03541-0516A-000 | SCREW | Speedometer (TYPE 2:W/TACHOMETER) |
| 09409-08326-000 | CLIP | Speedometer (TYPE 2:W/TACHOMETER) |
| 34101-60KC0-000 | Speedometer assy - Kilo | Speedometer (TYPE 2:W/TACHOMETER) |
| 34112-60KA0-000 | Glass, meter window | Speedometer (TYPE 2:W/TACHOMETER) |
| 34960-60K00-000 | SENSOR ASSY,SPEED | Speedometer (TYPE 2:W/TACHOMETER) |
