GC416T

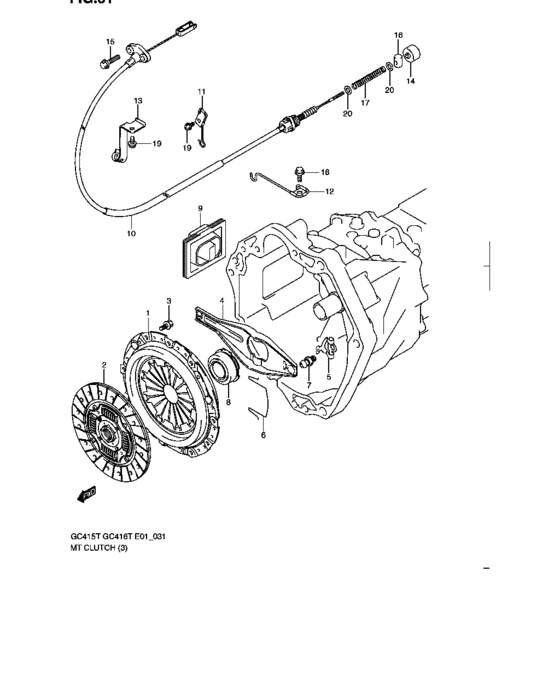

Mt clutch (TYPE 2:LHD) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 22100-60K00-000 | Cover assy, clutch |
| 2 | 22400-60K00-000 | Disc, clutch |
| 3 | 09117-08096-000 | BOLT(8X16) |
| 4 | 23211-60K00-000 | Fork, clutch release |
| 5 | 23221-78A00-000 | SUPPORT,CLUTCH RELEASE FORK |
| 6 | 23231-81A20-000 | CLIP,CLUTCH RELEASE BRG |
| 7 | 23241-78A20-000 | CLIP,CLUTCH RELEASE FORK |
| 8 | 23265-60K00-000 | Bearing, clutch release |
| 9 | 23268-60K00-000 | Boot, clutch release fork |
| 10 | 23710-60K20-000 | Cable assy, clutch |
| 11 | 23915-60K00-000 | Clamp, clutch cable |
| 12 | 23916-60K00-000 | Clamp, clutch cable |
| 13 | 23916-61J20-000 | CLAMP,CLUTCH CABLE NO.1 |
| 14 | 23922-60K00-000 | NUT,CLUTCH CABLE JOINT |
| 15 | 09119-06051-000 | BOLT(6X21) |
| 16 | 09209-13018-000 | PIN(13X18) |
| 17 | 09440-08026-000 | SPRING |
| 18 | 01550-0816A-000 | Bolt - Bolt, rear |
| 19 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 20 | 08322-0106A-000 | WASHER |
| OEM | Part name | Category |
|---|---|---|
| 01550-0816A-000 | Bolt - Bolt, rear | Mt clutch (TYPE 2:LHD) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Mt clutch (TYPE 2:LHD) |
| 08322-0106A-000 | WASHER | Mt clutch (TYPE 2:LHD) |
| 09117-08096-000 | BOLT(8X16) | Mt clutch (TYPE 2:LHD) |
| 09119-06051-000 | BOLT(6X21) | Mt clutch (TYPE 2:LHD) |
| 09209-13018-000 | PIN(13X18) | Mt clutch (TYPE 2:LHD) |
| 09440-08026-000 | SPRING | Mt clutch (TYPE 2:LHD) |
| 22100-60K00-000 | Cover assy, clutch | Mt clutch (TYPE 2:LHD) |
| 22400-60K00-000 | Disc, clutch | Mt clutch (TYPE 2:LHD) |
| 23211-60K00-000 | Fork, clutch release | Mt clutch (TYPE 2:LHD) |
| 23221-78A00-000 | SUPPORT,CLUTCH RELEASE FORK | Mt clutch (TYPE 2:LHD) |
| 23231-81A20-000 | CLIP,CLUTCH RELEASE BRG | Mt clutch (TYPE 2:LHD) |
| 23241-78A20-000 | CLIP,CLUTCH RELEASE FORK | Mt clutch (TYPE 2:LHD) |
| 23265-60K00-000 | Bearing, clutch release | Mt clutch (TYPE 2:LHD) |
| 23268-60K00-000 | Boot, clutch release fork | Mt clutch (TYPE 2:LHD) |
| 23710-60K20-000 | Cable assy, clutch | Mt clutch (TYPE 2:LHD) |
| 23915-60K00-000 | Clamp, clutch cable | Mt clutch (TYPE 2:LHD) |
| 23916-60K00-000 | Clamp, clutch cable | Mt clutch (TYPE 2:LHD) |
| 23916-61J20-000 | CLAMP,CLUTCH CABLE NO.1 | Mt clutch (TYPE 2:LHD) |
| 23922-60K00-000 | NUT,CLUTCH CABLE JOINT | Mt clutch (TYPE 2:LHD) |
