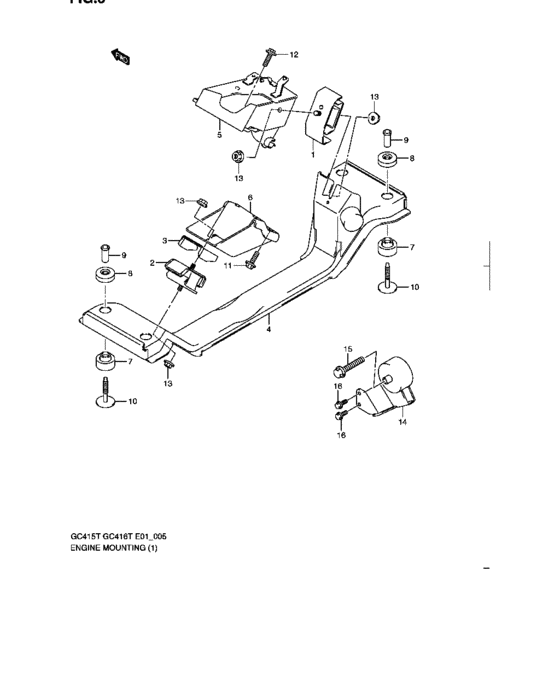

Engine mounting (TYPE 1)
15
| # | OEM | Part name |
|---|
| 1 |
11610-61J00-000 |
Mounting, engine fr rh |
| 2 |
11610-61J10-000 |
Mounting, engine fr lh |
| 3 |
11616-85001-000 |
COVER,FR MOUNTING |
| 4 |
11630-61J00-000 |
Member, eng front |
| 5 |
11640-61J01-000 |
Bracket, eng fr rh |
| 6 |
11650-61J00-000 |
Bracket, eng fr lh |
| 7 |
11684-68H00-000 |
CUSHION,MTG MEMBER LOWER |
| 8 |
11686-68H00-000 |
CUSHION,MTG MEMBER UPPER |
| 9 |
11687-67H00-000 |
COLLAR,MTG MEMBER |
| 10 |
09116-10132-000 |
BOLT(10X76) |
| 11 |
01550-1025A-000 |
Bolt - Bolt, drive gear |
| 13 |
08316-1010A-000 |
NUT - Nut, kick starter |
| 14 |
11710-61J01-000 |
Mounting, eng rear |
| 15 |
09113-10005-000 |
BOLT(10X90) |
| 16 |
01550-0816A-000 |
Bolt - Bolt, rear |
| OEM |
Part name |
Category |
| 01550-0816A-000 |
Bolt - Bolt, rear |
Engine mounting (TYPE 1) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
Engine mounting (TYPE 1) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
Engine mounting (TYPE 1) |
| 09113-10005-000 |
BOLT(10X90) |
Engine mounting (TYPE 1) |
| 09116-10132-000 |
BOLT(10X76) |
Engine mounting (TYPE 1) |
| 11610-61J00-000 |
Mounting, engine fr rh |
Engine mounting (TYPE 1) |
| 11610-61J10-000 |
Mounting, engine fr lh |
Engine mounting (TYPE 1) |
| 11616-85001-000 |
COVER,FR MOUNTING |
Engine mounting (TYPE 1) |
| 11630-61J00-000 |
Member, eng front |
Engine mounting (TYPE 1) |
| 11640-61J01-000 |
Bracket, eng fr rh |
Engine mounting (TYPE 1) |
| 11650-61J00-000 |
Bracket, eng fr lh |
Engine mounting (TYPE 1) |
| 11684-68H00-000 |
CUSHION,MTG MEMBER LOWER |
Engine mounting (TYPE 1) |
| 11686-68H00-000 |
CUSHION,MTG MEMBER UPPER |
Engine mounting (TYPE 1) |
| 11687-67H00-000 |
COLLAR,MTG MEMBER |
Engine mounting (TYPE 1) |
| 11710-61J01-000 |
Mounting, eng rear |
Engine mounting (TYPE 1) |
