| 01550-0612A-000 |
Bolt |

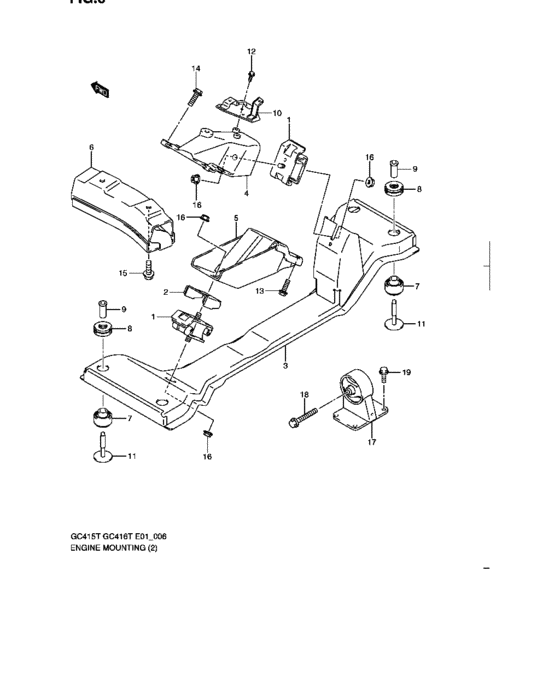

Engine mounting (TYP; TYPE 2) |
| 01550-0820A-000 |
Bolt - Bolt, funnel bracket |
Engine mounting (TYP; TYPE 2) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
Engine mounting (TYP; TYPE 2) |
| 01550-1030A-000 |
Bolt |
Engine mounting (TYP; TYPE 2) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
Engine mounting (TYP; TYPE 2) |
| 09113-10005-000 |
BOLT(10X90) |
Engine mounting (TYP; TYPE 2) |
| 09116-10173-000 |
BOLT(10X72.5) |
Engine mounting (TYP; TYPE 2) |
| 11610-60K00-000 |
Mounting, engine front |
Engine mounting (TYP; TYPE 2) |
| 11616-85001-000 |
COVER,FR MOUNTING |
Engine mounting (TYP; TYPE 2) |
| 11630-60K00-000 |
Member, eng front mtg |
Engine mounting (TYP; TYPE 2) |
| 11640-60K00-000 |
BRACKET,ENG FR MTG,R |
Engine mounting (TYP; TYPE 2) |
| 11650-60K00-000 |
Bracket, eng fr mtg, l |
Engine mounting (TYP; TYPE 2) |
| 11660-60K00-000 |
Bracket, eng mtg member |
Engine mounting (TYP; TYPE 2) |
| 11684-68H00-000 |
CUSHION,MTG MEMBER LOWER |
Engine mounting (TYP; TYPE 2) |
| 11686-68H00-000 |
CUSHION,MTG MEMBER UPPER |
Engine mounting (TYP; TYPE 2) |
| 11687-67H00-000 |
COLLAR,MTG MEMBER |
Engine mounting (TYP; TYPE 2) |
| 11710-60K00-000 |
Mounting, eng rear |
Engine mounting (TYP; TYPE 2) |
| 17855-60K00-000 |
Bracket, radiator hose |
Engine mounting (TYP; TYPE 2) |
