Search › Model › GC416T
GC416T

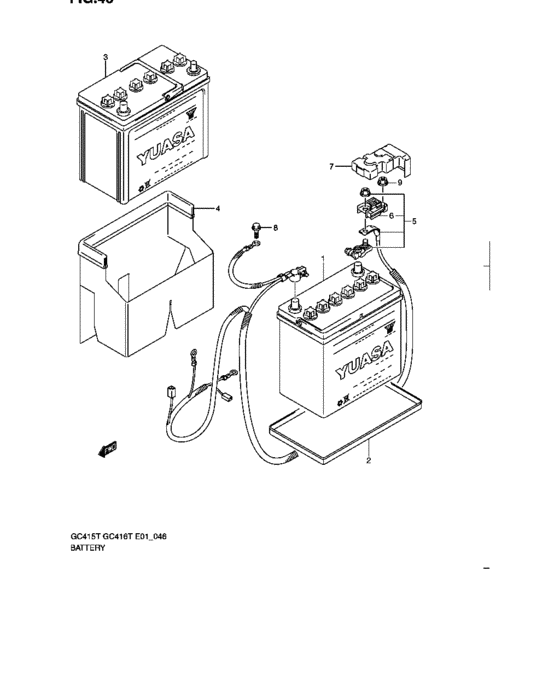

Battery (BATTERY) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-61J00-000 | Battery assy - 38b20r |
| 2 | 72540-61J00-000 | Tray, battery |
| 2 | 33660-73010-000 | Tray, battery |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33610-61J12-000 | Battery assy - 55b24r |
| 4 | 33690-61J00-000 | Cover, battery |
| 5 | 33800-61J00-000 | Cable assy, battery |
| 5 | 33800-61J10-000 | Cable assy, battery |
| 6 | 36739-50J00-000 | FUSE,BATTERY CABLE 80A |
| 7 | 36694-50J01-000 | COVER,BTRY TERMINAL |
| 8 | 09115-06005-000 | BOLT(6X16) |
| 9 | 08361-3506A-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 08361-3506A-000 | NUT | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 33610-61J00-000 | Battery assy - 38b20r | Battery (BATTERY) |
| 33610-61J12-000 | Battery assy - 55b24r | Battery (BATTERY) |
| 33660-71L10-000 | TRAY,BATTERY | Battery (BATTERY) |
| 33660-73010-000 | Tray, battery | Battery (BATTERY) |
| 33690-61J00-000 | Cover, battery | Battery (BATTERY) |
| 33800-61J00-000 | Cable assy, battery | Battery (BATTERY) |
| 33800-61J10-000 | Cable assy, battery | Battery (BATTERY) |
| 36694-50J01-000 | COVER,BTRY TERMINAL | Battery (BATTERY) |
| 36739-50J00-000 | FUSE,BATTERY CABLE 80A | Battery (BATTERY) |
| 72540-61J00-000 | Tray, battery | Battery (BATTERY) |
