GC415V

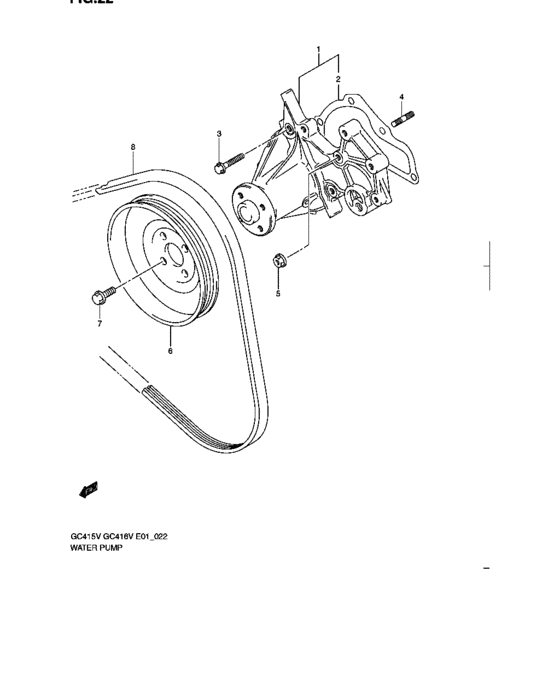

Water pump (WATER PUMP) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-61820-000 | PUMP SET,WATER |
| 2 | 17431-60A00-000 | GASKET,WATER PUMP |
| 3 | 09103-06066-000 | BOLT(6X23) - Bolt (6x23) |
| 4 | 01421-0620A-000 | BOLT,STUD |
| 5 | 08316-1006A-000 | NUT |
| 6 | 17511-71C00-000 | PULLEY,WATER PUMP |
| 7 | 09103-06168-000 | BOLT(6X10) |
| 8 | 17521-86500-000 | V-BELT (4PK815) |
| OEM | Part name | Category |
|---|---|---|
| 01421-0620A-000 | BOLT,STUD | Water pump (WATER PUMP) |
| 08316-1006A-000 | NUT | Water pump (WATER PUMP) |
| 09103-06066-000 | BOLT(6X23) - Bolt (6x23) | Water pump (WATER PUMP) |
| 09103-06168-000 | BOLT(6X10) | Water pump (WATER PUMP) |
| 17400-61820-000 | PUMP SET,WATER | Water pump (WATER PUMP) |
| 17431-60A00-000 | GASKET,WATER PUMP | Water pump (WATER PUMP) |
| 17511-71C00-000 | PULLEY,WATER PUMP | Water pump (WATER PUMP) |
| 17521-86500-000 | V-BELT (4PK815) | Water pump (WATER PUMP) |
