Search › Model › GC415V
GC415V

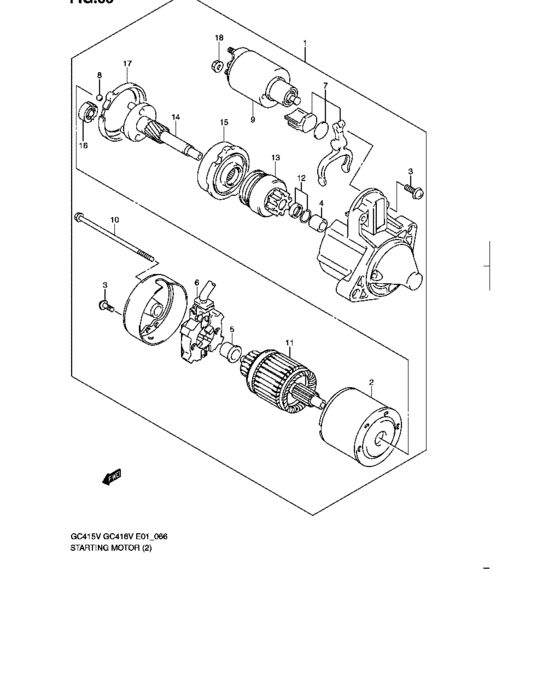

Starting motor (AT) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 31100-61J10-000 | Motor assy, starting |
| 2 | 31110-66D00-000 | YOKE ASSY |
| 3 | 31136-79030-000 | SCREW ASSY |
| 3 | 31175-79030-000 | Screw Set |
| 4 | 31152-79030-000 | BEARING,FRONT |
| 5 | 31172-64B60-000 | BEARING,REAR |
| 6 | 31173-60A22-000 | HOLDER ASSY,BRUSH |
| 7 | 31191-75F10-000 | LEVER ASSY |
| 8 | 31193-86030-000 | BALL |
| 9 | 31220-86032-000 | SWITCH ASSY |
| 10 | 31261-75F10-000 | Bolt |
| 11 | 31311-75F10-000 | ARMATURE |
| 12 | 31313-86030-000 | STOPPER SET |
| 12 | 31314-86030-000 | Stopper Set |
| 13 | 31320-86030-000 | CLUTCH,OVER RUNNING |
| 14 | 31341-75F10-000 | SHAFT,GEAR |
| 15 | 31343-80G00-000 | INTERNAL GEAR |
| 16 | 31344-86030-000 | GEAR,PLNTY |
| 17 | 31345-80G00-000 | PACKING |
| 18 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| OEM | Part name | Category |
|---|---|---|
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Starting motor (AT) |
| 31100-61J10-000 | Motor assy, starting | Starting motor (AT) |
| 31110-66D00-000 | YOKE ASSY | Starting motor (AT) |
| 31136-79030-000 | SCREW ASSY | Starting motor (AT) |
| 31152-79030-000 | BEARING,FRONT | Starting motor (AT) |
| 31172-64B60-000 | BEARING,REAR | Starting motor (AT) |
| 31173-60A22-000 | HOLDER ASSY,BRUSH | Starting motor (AT) |
| 31175-79030-000 | Screw Set | Starting motor (AT) |
| 31191-75F10-000 | LEVER ASSY | Starting motor (AT) |
| 31193-86030-000 | BALL | Starting motor (AT) |
| 31220-86032-000 | SWITCH ASSY | Starting motor (AT) |
| 31261-75F10-000 | Bolt | Starting motor (AT) |
| 31311-75F10-000 | ARMATURE | Starting motor (AT) |
| 31313-86030-000 | STOPPER SET | Starting motor (AT) |
| 31314-86030-000 | Stopper Set | Starting motor (AT) |
| 31320-86030-000 | CLUTCH,OVER RUNNING | Starting motor (AT) |
| 31341-75F10-000 | SHAFT,GEAR | Starting motor (AT) |
| 31343-80G00-000 | INTERNAL GEAR | Starting motor (AT) |
| 31344-86030-000 | GEAR,PLNTY | Starting motor (AT) |
| 31345-80G00-000 | PACKING | Starting motor (AT) |
