GC415V

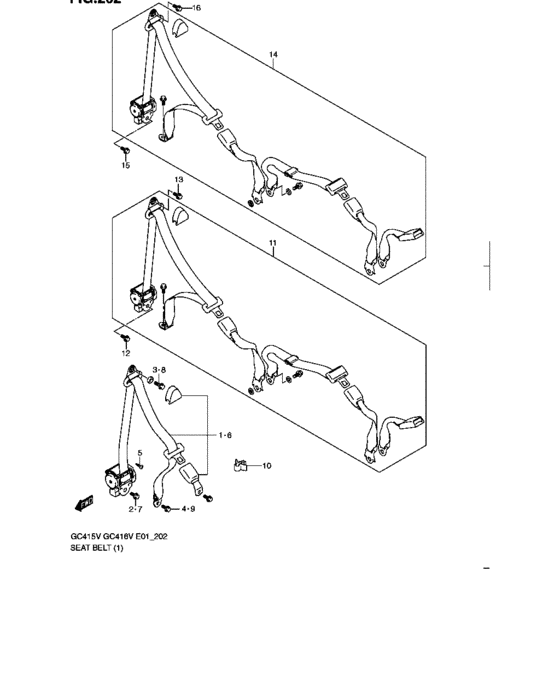

Seat belt (LHD:VAN,GA) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 84901-61JA0-LA5 | Belt assy, fr rh |
| 1 | 84901-61JC0-LA5 | Belt assy, fr rh |
| 2 | 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle |
| 4 | 09117-11002-000 | BOLT(11X20) |
| 5 | 09132-06024-000 | SCREW(6X14) |
| 6 | 84902-61JA0-LA5 | Belt assy, fr lh |
| 6 | 84902-61JD0-LA5 | Belt assy, fr lh |
| 6 | 84902-61JB0-LA5 | Belt assy, fr lh |
| 10 | 09403-04401-000 | CLAMP |
| 11 | 84908-61JA0-LA5 | Belt assy, 2nd - Gray |
| 14 | 84908-61J00-LA5 | Belt assy, 3rd - Gray |
| OEM | Part name | Category |
|---|---|---|
| 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle | Seat belt (LHD:VAN,GA) |
| 09117-11002-000 | BOLT(11X20) | Seat belt (LHD:VAN,GA) |
| 09132-06024-000 | SCREW(6X14) | Seat belt (LHD:VAN,GA) |
| 09403-04401-000 | CLAMP | Seat belt (LHD:VAN,GA) |
| 84901-61JA0-LA5 | Belt assy, fr rh | Seat belt (LHD:VAN,GA) |
| 84901-61JC0-LA5 | Belt assy, fr rh | Seat belt (LHD:VAN,GA) |
| 84902-61JA0-LA5 | Belt assy, fr lh | Seat belt (LHD:VAN,GA) |
| 84902-61JB0-LA5 | Belt assy, fr lh | Seat belt (LHD:VAN,GA) |
| 84902-61JD0-LA5 | Belt assy, fr lh | Seat belt (LHD:VAN,GA) |
| 84908-61J00-LA5 | Belt assy, 3rd - Gray | Seat belt (LHD:VAN,GA) |
| 84908-61JA0-LA5 | Belt assy, 2nd - Gray | Seat belt (LHD:VAN,GA) |
