| 08316-1012A-000 |
NUT |

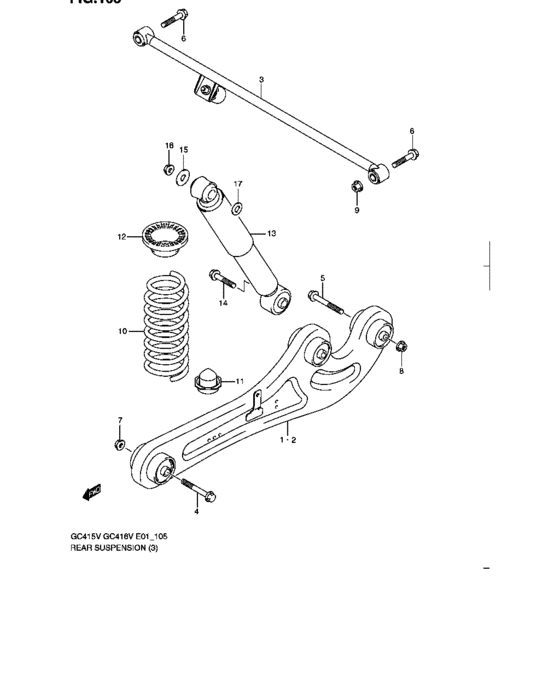

Rear suspension (TYPE 2:GL,GLX,SGX) |
| 08322-0116A-000 |
WASHER |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 09103-12065-000 |
BOLT(12X62) |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 09103-12091-000 |
BOLT(12X100) |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 09135-12008-000 |
BOLT(12X71) |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 09159-12064-000 |
NUT |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 09160-12073-000 |
WASHER(12.5X32X2.3) - Washer (12.5x32x2.3) |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 41311-60K00-000 |
Spring, rear coil |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 41341-60K00-000 |
Seat, rear spring upper |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 41700-60K00-000 |
Absorber assy, rear shock |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 42251-60K00-000 |
Stopper, rear bump |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 46201-60K00-000 |
Arm assy, rear trailing rh |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 46202-60K00-000 |
Arm assy, rear trailing lh |
Rear suspension (TYPE 2:GL,GLX,SGX) |
| 46300-60K00-000 |
Rod assy, lateral |
Rear suspension (TYPE 2:GL,GLX,SGX) |
