Search › Model › GC415V
GC415V

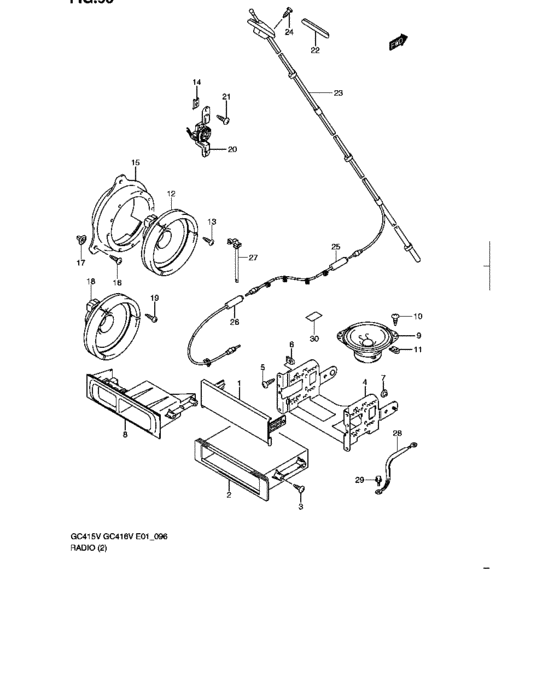

Radio (TYPE 2:N/TUNER) 29
| # | OEM | Part name |
|---|---|---|
| 1 | 39161-74G00-000 | COVER,RADIO HOLE |
| 2 | 39182-70E51-000 | POCKET,TUNER |
| 3 | 03241-0512A-000 | SCREW |
| 4 | 39321-61J00-000 | Bracket, tuner |
| 4 | 39321-54G03-000 | BRACKET,TUNER |
| 5 | 03541-0516A-000 | SCREW |
| 6 | 09148-05045-000 | NUT |
| 7 | 34955-66K00-000 | BUSH,TUNER BRACKET |
| 8 | 34600-54G00-000 | CLOCK ASSY |
| 9 | 39102-61J00-000 | Speaker assy, front |
| 10 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 12 | 39102-61J10-000 | Speaker assy, rear |
| 15 | 39350-61J10-000 | Bracket, front speaker |
| 16 | 03241-0616C-000 | SCREW |
| 17 | 09148-05035-000 | NUT |
| 19 | 03111-0512A-000 | SCREW |
| 20 | 39102-61J20-000 | Speaker assy, tweeter |
| 21 | 03541-0512A-000 | SCREW |
| 22 | 39262-61J00-000 | Cover, antenna hole |
| 22 | 39262-61J10-000 | Cover, antenna hole |
| 23 | 39250-61J00-000 | Antenna assy |
| 23 | 39250-61J10-000 | Antenna assy |
| 24 | 09129-04003-000 | SCREW(4X12) |
| 25 | 39270-61J00-000 | Feeder, antenna |
| 26 | 39270-61J10-000 | Feeder, antenna instrument,panel |
| 27 | 09407-12404-000 | CLAMP(L:140) |
| 28 | 39312-78A00-000 | WIRE,NOISE SUPPR |
| 29 | 09115-06005-000 | BOLT(6X16) |
| 30 | 73113-61J00-000 | Pad, i/p side |
| OEM | Part name | Category |
|---|---|---|
| 03111-0512A-000 | SCREW | Radio (TYPE 2:N/TUNER) |
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Radio (TYPE 2:N/TUNER) |
| 03241-0512A-000 | SCREW | Radio (TYPE 2:N/TUNER) |
| 03241-0616C-000 | SCREW | Radio (TYPE 2:N/TUNER) |
| 03541-0512A-000 | SCREW | Radio (TYPE 2:N/TUNER) |
| 03541-0516A-000 | SCREW | Radio (TYPE 2:N/TUNER) |
| 09115-06005-000 | BOLT(6X16) | Radio (TYPE 2:N/TUNER) |
| 09129-04003-000 | SCREW(4X12) | Radio (TYPE 2:N/TUNER) |
| 09148-05035-000 | NUT | Radio (TYPE 2:N/TUNER) |
| 09148-05045-000 | NUT | Radio (TYPE 2:N/TUNER) |
| 09407-12404-000 | CLAMP(L:140) | Radio (TYPE 2:N/TUNER) |
| 34600-54G00-000 | CLOCK ASSY | Radio (TYPE 2:N/TUNER) |
| 34955-66K00-000 | BUSH,TUNER BRACKET | Radio (TYPE 2:N/TUNER) |
| 39102-61J00-000 | Speaker assy, front | Radio (TYPE 2:N/TUNER) |
| 39102-61J10-000 | Speaker assy, rear | Radio (TYPE 2:N/TUNER) |
| 39102-61J20-000 | Speaker assy, tweeter | Radio (TYPE 2:N/TUNER) |
| 39161-74G00-000 | COVER,RADIO HOLE | Radio (TYPE 2:N/TUNER) |
| 39182-70E51-000 | POCKET,TUNER | Radio (TYPE 2:N/TUNER) |
| 39250-61J00-000 | Antenna assy | Radio (TYPE 2:N/TUNER) |
| 39250-61J10-000 | Antenna assy | Radio (TYPE 2:N/TUNER) |
| 39262-61J00-000 | Cover, antenna hole | Radio (TYPE 2:N/TUNER) |
| 39262-61J10-000 | Cover, antenna hole | Radio (TYPE 2:N/TUNER) |
| 39270-61J00-000 | Feeder, antenna | Radio (TYPE 2:N/TUNER) |
| 39270-61J10-000 | Feeder, antenna instrument,panel | Radio (TYPE 2:N/TUNER) |
| 39312-78A00-000 | WIRE,NOISE SUPPR | Radio (TYPE 2:N/TUNER) |
| 39321-54G03-000 | BRACKET,TUNER | Radio (TYPE 2:N/TUNER) |
| 39321-61J00-000 | Bracket, tuner | Radio (TYPE 2:N/TUNER) |
| 39350-61J10-000 | Bracket, front speaker | Radio (TYPE 2:N/TUNER) |
| 73113-61J00-000 | Pad, i/p side | Radio (TYPE 2:N/TUNER) |
