Search › Model › GC415V
GC415V

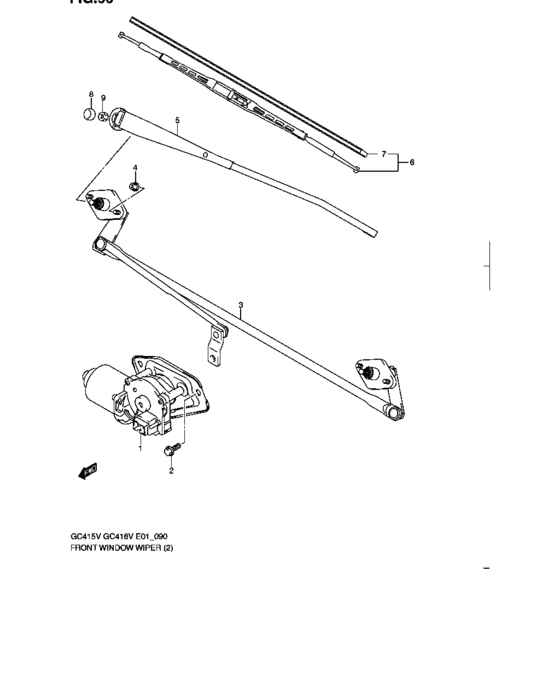

Front window wiper (RHD) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 38101-61J00-000 | Motor & bracket assy, wiper |
| 2 | 09115-06005-000 | BOLT(6X16) |
| 3 | 38102-61J00-000 | Link assy, wiper |
| 4 | 08316-1006A-000 | NUT |
| 5 | 38310-61J00-000 | Arm assy, wiper |
| 6 | 38340-61J00-000 | Blade assy, wiper |
| 7 | 38346-61J00-000 | Rubber, blade |
| 8 | 38315-60B11-000 | CAP,WIPER PIVOT |
| 9 | 08310-0008A-000 | NUT - Nut, bead stopper |
| OEM | Part name | Category |
|---|---|---|
| 08310-0008A-000 | NUT - Nut, bead stopper | Front window wiper (RHD) |
| 08316-1006A-000 | NUT | Front window wiper (RHD) |
| 09115-06005-000 | BOLT(6X16) | Front window wiper (RHD) |
| 38101-61J00-000 | Motor & bracket assy, wiper | Front window wiper (RHD) |
| 38102-61J00-000 | Link assy, wiper | Front window wiper (RHD) |
| 38310-61J00-000 | Arm assy, wiper | Front window wiper (RHD) |
| 38315-60B11-000 | CAP,WIPER PIVOT | Front window wiper (RHD) |
| 38340-61J00-000 | Blade assy, wiper | Front window wiper (RHD) |
| 38346-61J00-000 | Rubber, blade | Front window wiper (RHD) |
