GC415V

Suzuki APV · 3,786 parts · 234 categories

3,786 items

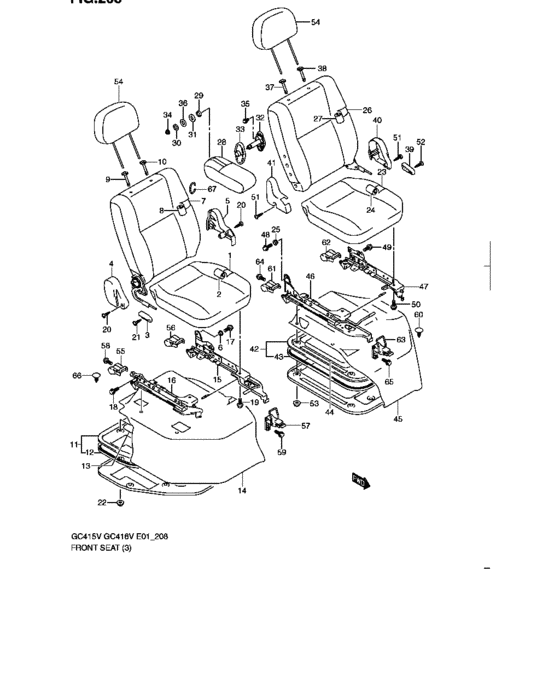

Front seat (TYPE 1:LHD:GL,GLX) 62

#	OEM	Part name
1	85105-61JA0-000	Cushion sub assy, fr rh
2	85180-61JA0-BEJ	Trim, cushion rh
2	85180-61JA0-AYH	Trim, cushion rh
3	85211-61JA0-P4Z	Knob, reclining rh - Gray
3	85211-61JA0-R8H	Knob, reclining rh - Beige
4	85221-61JA0-P4Z	Cover, reclining rh - Gray
4	85221-61JA0-R8H	Cover, reclining rh - Beige
5	85281-61JA0-P4Z	Cover, hinge rh - Gray
5	85281-61JA0-R8H	Cover, hinge rh - Beige
6	85293-79A00-000	BUSH,FR BACK FIX - Bush, fr back fix
7	85305-61JA0-000	Back sub assy, fr rh
8	85380-61JA0-BEJ	Trim, back rh
8	85380-61JC1-AYH	Trim, back rh
9	85341-58J00-P4Z	GUIDE,HEADRESTRAINT
10	85840-58J00-P4Z	GUIDE,HEADRESTRAINT
11	85410-61JA0-000	Panel assy, riser rh
12	85428-61JA0-000	Weatherstrip, riser
13	85427-61JA0-000	Insulator, riser rh
14	85430-61JB0-S01	Carpet - Gray
15	86601-61JA0-000	Adjuster assy, inside
16	86603-61JA0-000	Adjuster assy, outside
17	09116-06109-000	BOLT(6X12)
18	01550-1020A-000	Bolt - Bolt, bal sprocket
19	01570-0820A-000	Bolt
20	03241-0508A-000	SCREW
22	08316-1008A-000	NUT - Nut, idle gear shaft
23	85106-61JA0-000	Cushion sub assy, fr lh
24	85680-61JA0-BEJ	Trim, cushion lh
24	85680-61JA0-AYH	Trim, cushion lh
26	85306-61JA0-000	Back sub assy, fr lh
26	85306-61JE0-000	Back sub assy, fr lh
27	85880-61JA0-BEJ	Trim, back lh
27	85880-61JE0-AYH	Trim, back lh
28	85502-61JA0-AYK	Armrest assy
29	85546-61JE0-000	Bush, armrest
30	85547-61JE0-000	Washer
31	85548-61JE0-000	Washer
32	85560-61JE0-000	Hinge, armrest
33	85572-61JE0-R8H	Cover, armrest
34	09159-08075-000	NUT
35	01550-0812A-000	Bolt
36	08322-0110A-000	WASHER - Washer, knuckle end
39	85711-61JA0-P4Z	Knob, reclining lh - Gray
39	85711-61JA0-R8H	Knob, reclining lh - Beige
40	85721-61JA0-P4Z	Cover, reclining lh - Gray
40	85721-61JA0-R8H	Cover, reclining lh - Beige
41	85781-61JA0-P4Z	Cover, hinge lh - Gray
41	85781-61JA0-R8H	Cover, hinge lh - Beige
42	85910-61JA0-000	Panel assy, fr riser lh
44	85927-61JA0-000	Insulator, riser lh
45	85930-61JB0-S01	Carpet - Gray
46	86801-61JA0-000	Adjuster assy, inside
47	86803-61JA0-000	Adjuster assy, outside
54	86401-61JA0-T1S	Headrestraint assy - Gray
54	86401-61JA0-AYK	Headrestraint assy
55	85495-61JA0-000	Cover, adjuster hinge, rh
56	85995-61JA0-000	Cover, adjuster hinge, lh
57	86650-77A02-000	LOCK ASSY,FR
58	01551-1020A-000	Bolt
59	01570-0612A-000	Bolt
60	09409-05309-P4Z	CLIP(GRAY)
67	09387-19001-000	RING

OEM	Part name	Category
01550-0812A-000	Bolt	Front seat (TYPE 1:LHD:GL,GLX)
01550-1020A-000	Bolt - Bolt, bal sprocket	Front seat (TYPE 1:LHD:GL,GLX)
01551-1020A-000	Bolt	Front seat (TYPE 1:LHD:GL,GLX)
01570-0612A-000	Bolt	Front seat (TYPE 1:LHD:GL,GLX)
01570-0820A-000	Bolt	Front seat (TYPE 1:LHD:GL,GLX)
03241-0508A-000	SCREW	Front seat (TYPE 1:LHD:GL,GLX)
08316-1008A-000	NUT - Nut, idle gear shaft	Front seat (TYPE 1:LHD:GL,GLX)
08322-0110A-000	WASHER - Washer, knuckle end	Front seat (TYPE 1:LHD:GL,GLX)
09116-06109-000	BOLT(6X12)	Front seat (TYPE 1:LHD:GL,GLX)
09159-08075-000	NUT	Front seat (TYPE 1:LHD:GL,GLX)
09387-19001-000	RING	Front seat (TYPE 1:LHD:GL,GLX)
09409-05309-P4Z	CLIP(GRAY)	Front seat (TYPE 1:LHD:GL,GLX)
85105-61JA0-000	Cushion sub assy, fr rh	Front seat (TYPE 1:LHD:GL,GLX)
85106-61JA0-000	Cushion sub assy, fr lh	Front seat (TYPE 1:LHD:GL,GLX)
85180-61JA0-AYH	Trim, cushion rh	Front seat (TYPE 1:LHD:GL,GLX)
85180-61JA0-BEJ	Trim, cushion rh	Front seat (TYPE 1:LHD:GL,GLX)
85211-61JA0-P4Z	Knob, reclining rh - Gray	Front seat (TYPE 1:LHD:GL,GLX)
85211-61JA0-R8H	Knob, reclining rh - Beige	Front seat (TYPE 1:LHD:GL,GLX)
85221-61JA0-P4Z	Cover, reclining rh - Gray	Front seat (TYPE 1:LHD:GL,GLX)
85221-61JA0-R8H	Cover, reclining rh - Beige	Front seat (TYPE 1:LHD:GL,GLX)
85281-61JA0-P4Z	Cover, hinge rh - Gray	Front seat (TYPE 1:LHD:GL,GLX)
85281-61JA0-R8H	Cover, hinge rh - Beige	Front seat (TYPE 1:LHD:GL,GLX)
85293-79A00-000	BUSH,FR BACK FIX - Bush, fr back fix	Front seat (TYPE 1:LHD:GL,GLX)
85305-61JA0-000	Back sub assy, fr rh	Front seat (TYPE 1:LHD:GL,GLX)
85306-61JA0-000	Back sub assy, fr lh	Front seat (TYPE 1:LHD:GL,GLX)
85306-61JE0-000	Back sub assy, fr lh	Front seat (TYPE 1:LHD:GL,GLX)
85341-58J00-P4Z	GUIDE,HEADRESTRAINT	Front seat (TYPE 1:LHD:GL,GLX)
85380-61JA0-BEJ	Trim, back rh	Front seat (TYPE 1:LHD:GL,GLX)
85380-61JC1-AYH	Trim, back rh	Front seat (TYPE 1:LHD:GL,GLX)
85410-61JA0-000	Panel assy, riser rh	Front seat (TYPE 1:LHD:GL,GLX)
85427-61JA0-000	Insulator, riser rh	Front seat (TYPE 1:LHD:GL,GLX)
85428-61JA0-000	Weatherstrip, riser	Front seat (TYPE 1:LHD:GL,GLX)
85430-61JB0-S01	Carpet - Gray	Front seat (TYPE 1:LHD:GL,GLX)
85495-61JA0-000	Cover, adjuster hinge, rh	Front seat (TYPE 1:LHD:GL,GLX)
85502-61JA0-AYK	Armrest assy	Front seat (TYPE 1:LHD:GL,GLX)
85546-61JE0-000	Bush, armrest	Front seat (TYPE 1:LHD:GL,GLX)
85547-61JE0-000	Washer	Front seat (TYPE 1:LHD:GL,GLX)
85548-61JE0-000	Washer	Front seat (TYPE 1:LHD:GL,GLX)
85560-61JE0-000	Hinge, armrest	Front seat (TYPE 1:LHD:GL,GLX)
85572-61JE0-R8H	Cover, armrest	Front seat (TYPE 1:LHD:GL,GLX)
85680-61JA0-AYH	Trim, cushion lh	Front seat (TYPE 1:LHD:GL,GLX)
85680-61JA0-BEJ	Trim, cushion lh	Front seat (TYPE 1:LHD:GL,GLX)
85711-61JA0-P4Z	Knob, reclining lh - Gray	Front seat (TYPE 1:LHD:GL,GLX)
85711-61JA0-R8H	Knob, reclining lh - Beige	Front seat (TYPE 1:LHD:GL,GLX)
85721-61JA0-P4Z	Cover, reclining lh - Gray	Front seat (TYPE 1:LHD:GL,GLX)
85721-61JA0-R8H	Cover, reclining lh - Beige	Front seat (TYPE 1:LHD:GL,GLX)
85781-61JA0-P4Z	Cover, hinge lh - Gray	Front seat (TYPE 1:LHD:GL,GLX)
85781-61JA0-R8H	Cover, hinge lh - Beige	Front seat (TYPE 1:LHD:GL,GLX)
85840-58J00-P4Z	GUIDE,HEADRESTRAINT	Front seat (TYPE 1:LHD:GL,GLX)
85880-61JA0-BEJ	Trim, back lh	Front seat (TYPE 1:LHD:GL,GLX)
85880-61JE0-AYH	Trim, back lh	Front seat (TYPE 1:LHD:GL,GLX)
85910-61JA0-000	Panel assy, fr riser lh	Front seat (TYPE 1:LHD:GL,GLX)
85927-61JA0-000	Insulator, riser lh	Front seat (TYPE 1:LHD:GL,GLX)
85930-61JB0-S01	Carpet - Gray	Front seat (TYPE 1:LHD:GL,GLX)
85995-61JA0-000	Cover, adjuster hinge, lh	Front seat (TYPE 1:LHD:GL,GLX)
86401-61JA0-AYK	Headrestraint assy	Front seat (TYPE 1:LHD:GL,GLX)
86401-61JA0-T1S	Headrestraint assy - Gray	Front seat (TYPE 1:LHD:GL,GLX)
86601-61JA0-000	Adjuster assy, inside	Front seat (TYPE 1:LHD:GL,GLX)
86603-61JA0-000	Adjuster assy, outside	Front seat (TYPE 1:LHD:GL,GLX)
86650-77A02-000	LOCK ASSY,FR	Front seat (TYPE 1:LHD:GL,GLX)
86801-61JA0-000	Adjuster assy, inside	Front seat (TYPE 1:LHD:GL,GLX)
86803-61JA0-000	Adjuster assy, outside	Front seat (TYPE 1:LHD:GL,GLX)
