GC415V

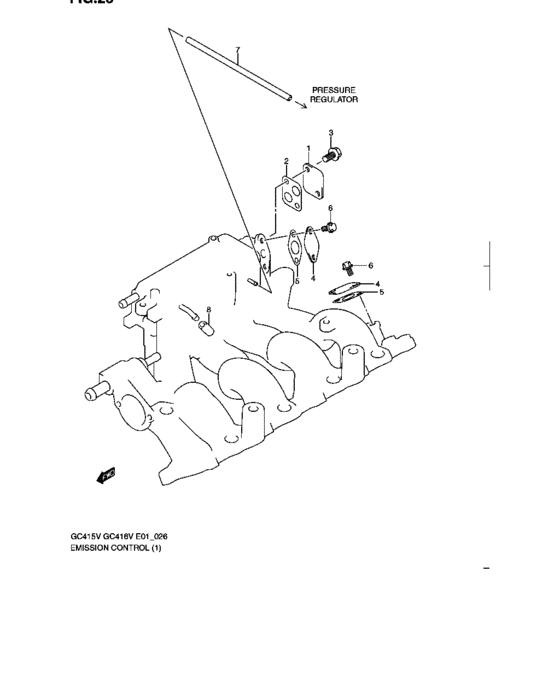

Emission control (GC415V:TYPE 1) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 18491-77E00-000 | PLATE,EGR VALVE |
| 2 | 18529-77E01-000 | GASKET,EGR VALVE |
| 3 | 01550-0816A-000 | Bolt - Bolt, rear |
| 4 | 18492-77E00-000 | PLATE,EGR PIPE |
| 5 | 18533-77E00-000 | GASKET,EGR PIPE |
| 6 | 01550-0612A-000 | Bolt |
| 7 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 7 | 09355-35006-601 | Hose(3.5X7.5X601) |
| 8 | 09251-05006-000 | CAP(OD:11) - Cap, balancer cover |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Emission control (GC415V:TYPE 1) |
| 01550-0816A-000 | Bolt - Bolt, rear | Emission control (GC415V:TYPE 1) |
| 09251-05006-000 | CAP(OD:11) - Cap, balancer cover | Emission control (GC415V:TYPE 1) |
| 09355-35006-601 | Hose(3.5X7.5X601) | Emission control (GC415V:TYPE 1) |
| 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | Emission control (GC415V:TYPE 1) |
| 18491-77E00-000 | PLATE,EGR VALVE | Emission control (GC415V:TYPE 1) |
| 18492-77E00-000 | PLATE,EGR PIPE | Emission control (GC415V:TYPE 1) |
| 18529-77E01-000 | GASKET,EGR VALVE | Emission control (GC415V:TYPE 1) |
| 18533-77E00-000 | GASKET,EGR PIPE | Emission control (GC415V:TYPE 1) |
