Search › Model › GC415V

GC415V

Suzuki APV · 3,786 parts · 234 categories

3,786 items

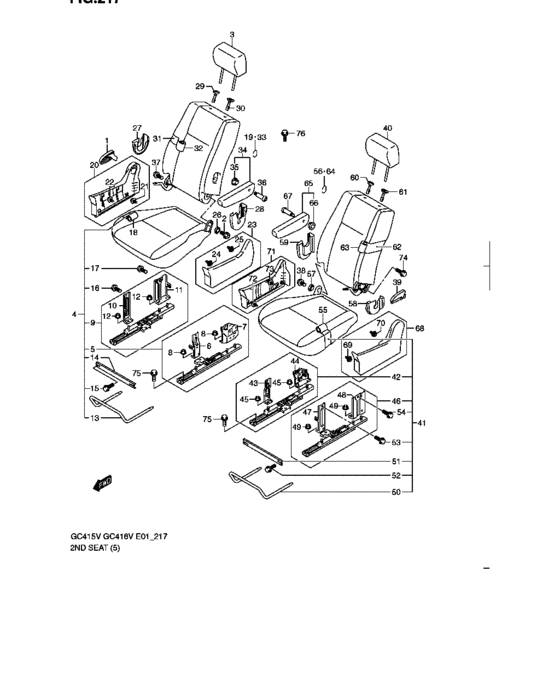

2nd seat (TYPE 2:SGX) 54

#	OEM	Part name
1	85211-65J00-R8H	Knob,rclng,r
1	85211-65JA0-R8H	KNOB,RCLNG,R
2	85295-58J01-000	BOLT,FR BACK FIX
3	86401-60KA0-EKT	Headrestraint assy
3	86401-61JB0-EKT	Headrestraint assy
4	87105-60KN0-000	Cushion sub assy, 2nd rh
5	86801-60KN0-000	ADJUSTER S/ASSY,2ND INSIDE,R
6	86711-60KN0-000	RISER,FR INS,R
7	86720-60KN0-000	RISER,RR INS,R
8	08316-1010A-000	NUT - Nut, kick starter
9	86803-60KN0-000	ADJUSTER S/ASSY,2ND OUTSIDE,R
10	86731-60KN0-000	RISER,FR OUT,R
11	86741-60KN0-000	RISER,RR OUT,R
13	86891-60KN0-000	HANDLE,2ND SEAT ADJUSTER,R
14	87261-60KN0-000	MEMBER,2ND RISER
15	01550-0816A-000	Bolt - Bolt, rear
16	01550-1016A-000	Bolt - Plug, oil gallery
17	01550-1035A-000	Bolt - Bolt, fr fork upper
18	87180-60KN0-EKS	Trim, 2nd cushion rh
19	09387-19001-000	RING
20	87220-60KN0-R8H	Cover, reclining outside - Beige
21	85225-74G00-000	CLIP
22	09409-10308-000	CLIP
23	87240-60KN0-000	Cover, hinge outside
26	87286-58J10-000	BUSH,CUSH STAY FIX
27	85222-72J00-R8H	COVER,RCLNG INSIDE,R
28	85242-72J01-R8H	COVER,FR HINGE INSIDE,R
29	85341-58J00-P4Z	GUIDE,HEADRESTRAINT
30	85840-58J00-P4Z	GUIDE,HEADRESTRAINT
31	87305-60KN0-000	Back sub assy, rh
32	87380-60KN0-EKS	Trim, 2nd back, rh
34	87501-60KN0-EKT	Armrest assy, 2nd rh
35	85544-58J00-000	BUSH,ARMREST
36	87541-60KN0-000	Bolt, armrest hinge
39	85711-65J00-R8H	Knob,rclng,l
39	85711-65JA0-R8H	KNOB,RCLNG,L
41	87106-60KN0-000	Cushion sub assy, lh
42	86802-60KN0-000	ADJUSTER S/ASSY,2ND INSIDE,L
43	86761-60KN0-000	RISER,FR INS,L
44	86770-60KN0-000	RISER,RR INS,L
46	86804-60KN0-000	ADJUSTER S/ASSY,2ND OUTSIDE,L
47	86781-60KN0-000	RISER,FR OUT,L
48	86791-60KN0-000	RISER,RR OUT,L
50	86892-60KN0-000	HANDLE,2ND SEAT ADJUSTER,L
55	87680-60KN0-EKS	Trim, 2nd cushion lh
58	85722-72J00-R8H	COVER,RCLNG INSIDE,L
59	85742-72J01-R8H	COVER,FR HINGE INSIDE,L
62	87306-60KN0-000	Back sub assy, lh
63	87880-60KN0-EKS	Trim, 2nd back lh
65	87502-60KN0-EKT	Armrest assy, lh
68	87720-60KN0-R8H	Cover, 2nd reclining - Beige
71	87740-60KN0-000	Cover, 2nd hinge
75	09119-08097-000	BOLT(8X25)
76	01551-1020A-000	Bolt

OEM	Part name	Category
01550-0816A-000	Bolt - Bolt, rear	2nd seat (TYPE 2:SGX)
01550-1016A-000	Bolt - Plug, oil gallery	2nd seat (TYPE 2:SGX)
01550-1035A-000	Bolt - Bolt, fr fork upper	2nd seat (TYPE 2:SGX)
01551-1020A-000	Bolt	2nd seat (TYPE 2:SGX)
08316-1010A-000	NUT - Nut, kick starter	2nd seat (TYPE 2:SGX)
09119-08097-000	BOLT(8X25)	2nd seat (TYPE 2:SGX)
09387-19001-000	RING	2nd seat (TYPE 2:SGX)
09409-10308-000	CLIP	2nd seat (TYPE 2:SGX)
85211-65J00-R8H	Knob,rclng,r	2nd seat (TYPE 2:SGX)
85211-65JA0-R8H	KNOB,RCLNG,R	2nd seat (TYPE 2:SGX)
85222-72J00-R8H	COVER,RCLNG INSIDE,R	2nd seat (TYPE 2:SGX)
85225-74G00-000	CLIP	2nd seat (TYPE 2:SGX)
85242-72J01-R8H	COVER,FR HINGE INSIDE,R	2nd seat (TYPE 2:SGX)
85295-58J01-000	BOLT,FR BACK FIX	2nd seat (TYPE 2:SGX)
85341-58J00-P4Z	GUIDE,HEADRESTRAINT	2nd seat (TYPE 2:SGX)
85544-58J00-000	BUSH,ARMREST	2nd seat (TYPE 2:SGX)
85711-65J00-R8H	Knob,rclng,l	2nd seat (TYPE 2:SGX)
85711-65JA0-R8H	KNOB,RCLNG,L	2nd seat (TYPE 2:SGX)
85722-72J00-R8H	COVER,RCLNG INSIDE,L	2nd seat (TYPE 2:SGX)
85742-72J01-R8H	COVER,FR HINGE INSIDE,L	2nd seat (TYPE 2:SGX)
85840-58J00-P4Z	GUIDE,HEADRESTRAINT	2nd seat (TYPE 2:SGX)
86401-60KA0-EKT	Headrestraint assy	2nd seat (TYPE 2:SGX)
86401-61JB0-EKT	Headrestraint assy	2nd seat (TYPE 2:SGX)
86711-60KN0-000	RISER,FR INS,R	2nd seat (TYPE 2:SGX)
86720-60KN0-000	RISER,RR INS,R	2nd seat (TYPE 2:SGX)
86731-60KN0-000	RISER,FR OUT,R	2nd seat (TYPE 2:SGX)
86741-60KN0-000	RISER,RR OUT,R	2nd seat (TYPE 2:SGX)
86761-60KN0-000	RISER,FR INS,L	2nd seat (TYPE 2:SGX)
86770-60KN0-000	RISER,RR INS,L	2nd seat (TYPE 2:SGX)
86781-60KN0-000	RISER,FR OUT,L	2nd seat (TYPE 2:SGX)
86791-60KN0-000	RISER,RR OUT,L	2nd seat (TYPE 2:SGX)
86801-60KN0-000	ADJUSTER S/ASSY,2ND INSIDE,R	2nd seat (TYPE 2:SGX)
86802-60KN0-000	ADJUSTER S/ASSY,2ND INSIDE,L	2nd seat (TYPE 2:SGX)
86803-60KN0-000	ADJUSTER S/ASSY,2ND OUTSIDE,R	2nd seat (TYPE 2:SGX)
86804-60KN0-000	ADJUSTER S/ASSY,2ND OUTSIDE,L	2nd seat (TYPE 2:SGX)
86891-60KN0-000	HANDLE,2ND SEAT ADJUSTER,R	2nd seat (TYPE 2:SGX)
86892-60KN0-000	HANDLE,2ND SEAT ADJUSTER,L	2nd seat (TYPE 2:SGX)
87105-60KN0-000	Cushion sub assy, 2nd rh	2nd seat (TYPE 2:SGX)
87106-60KN0-000	Cushion sub assy, lh	2nd seat (TYPE 2:SGX)
87180-60KN0-EKS	Trim, 2nd cushion rh	2nd seat (TYPE 2:SGX)
87220-60KN0-R8H	Cover, reclining outside - Beige	2nd seat (TYPE 2:SGX)
87240-60KN0-000	Cover, hinge outside	2nd seat (TYPE 2:SGX)
87261-60KN0-000	MEMBER,2ND RISER	2nd seat (TYPE 2:SGX)
87286-58J10-000	BUSH,CUSH STAY FIX	2nd seat (TYPE 2:SGX)
87305-60KN0-000	Back sub assy, rh	2nd seat (TYPE 2:SGX)
87306-60KN0-000	Back sub assy, lh	2nd seat (TYPE 2:SGX)
87380-60KN0-EKS	Trim, 2nd back, rh	2nd seat (TYPE 2:SGX)
87501-60KN0-EKT	Armrest assy, 2nd rh	2nd seat (TYPE 2:SGX)
87502-60KN0-EKT	Armrest assy, lh	2nd seat (TYPE 2:SGX)
87541-60KN0-000	Bolt, armrest hinge	2nd seat (TYPE 2:SGX)
87680-60KN0-EKS	Trim, 2nd cushion lh	2nd seat (TYPE 2:SGX)
87720-60KN0-R8H	Cover, 2nd reclining - Beige	2nd seat (TYPE 2:SGX)
87740-60KN0-000	Cover, 2nd hinge	2nd seat (TYPE 2:SGX)
87880-60KN0-EKS	Trim, 2nd back lh	2nd seat (TYPE 2:SGX)
