Search › Model › GC415T
GC415T

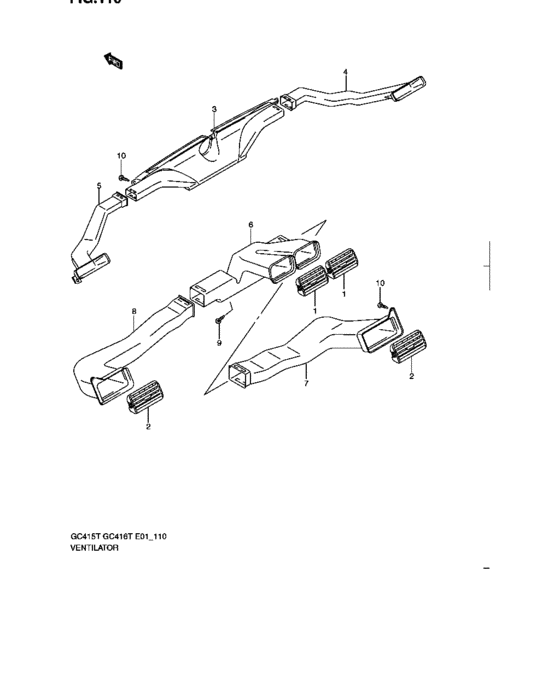

Ventilator (VENTILATOR) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-61J00-5PK | Louver, vent - Black |
| 3 | 73661-61J00-000 | Nozzle, defroster |
| 4 | 73681-61J00-000 | Duct, demister rh |
| 5 | 73691-61J00-000 | Duct, demister lh |
| 6 | 74621-61J10-000 | Duct, ctr vent |
| 6 | 74621-61J00-000 | Duct, ctr vent |
| 7 | 74631-61J00-000 | Duct, side vent rh |
| 8 | 74641-61J00-000 | Duct, side vent lh |
| 9 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 10 | 03541-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Ventilator (VENTILATOR) |
| 03541-0516A-000 | SCREW | Ventilator (VENTILATOR) |
| 73610-61J00-5PK | Louver, vent - Black | Ventilator (VENTILATOR) |
| 73661-61J00-000 | Nozzle, defroster | Ventilator (VENTILATOR) |
| 73681-61J00-000 | Duct, demister rh | Ventilator (VENTILATOR) |
| 73691-61J00-000 | Duct, demister lh | Ventilator (VENTILATOR) |
| 74621-61J00-000 | Duct, ctr vent | Ventilator (VENTILATOR) |
| 74621-61J10-000 | Duct, ctr vent | Ventilator (VENTILATOR) |
| 74631-61J00-000 | Duct, side vent rh | Ventilator (VENTILATOR) |
| 74641-61J00-000 | Duct, side vent lh | Ventilator (VENTILATOR) |
