Search › Model › GC22

GC22

Nissan VANETTE · 1986 · 4,797 parts · 243 categories

4,797 items

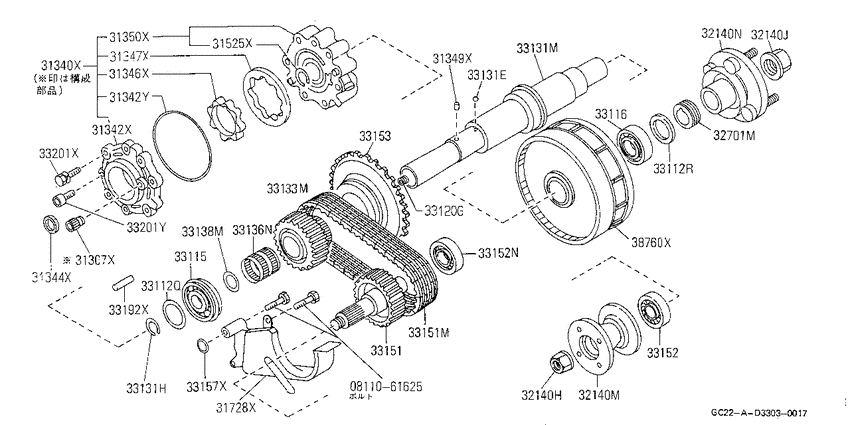

Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K) 62

#	OEM	Part name
31307	31307-27C00	Plug-Taper
31340	31340-1C100	Pump Assy-Oil, Transfer
31340	31340-1C101	Pump Assy-Oil, Transfer
31340	31340-27C00	Pump Assy-Oil, Transfer
31342	31342-05U01	Housing-Oil Pump
31342	31342-05U02	Housing-Oil Pump
31342	31342-27C00	Housing-Oil Pump
31342	33118-05U00	Seal-O Ring
31344	33111-20N00	Seal-Oil, Transfer Cover
31346	31346-05U00	Gear-Inner, Oil Pump
31346	31346-05U01	Gear-Inner, Oil Pump
31346	31346-05U02	Gear-Inner, Oil Pump
31346	31346-1P400	Gear-Inner, Oil Pump
31347	31347-05U00	Gear-Outer, Oil Pump
31347	31347-05U01	Gear-Outer, Oil Pump
31347	31347-05U02	Gear-Outer, Oil Pump
31347	31347-1P400	Gear-Outer, Oil Pump
31349	31349-05U00	Pin-Pivot
31350	31350-27C00	Cover Assy-Oil Pump
31350	31350-27C01	Cover Assy-Oil Pump
31525	31525-05U00	Ring-Seal
31728	31728-27C00	Strainer Assy-Oil
32140	38216-31G00	Nut
32140	33210-20N00	Flange Assy-Companion
32140	33220-27C00	Flange Assy-Companion
32140	33210-33G00	Flange Assy-Companion
32140	33210-33G0A	Flange Assy-Companion
32701	32701-27C00	Gear-Drive, Speedometer
32701	32701-30C00	Gear-Drive, Speedometer
33112	33148-27C00	Spacer-Main Shaft
33115	32203-J2000	Bearing-Main Drive
33116	33139-27C00	Bearing-Main, Transfer Rear
33116	33139-33G01	Bearing-Main, Transfer Rear
33120	31307-1C100	Plug
33131	33138-33G20	Ring-Snap, Main Shaft
33131	33138-33G21	Ring-Snap, Main Shaft
33131	33138-33G22	Ring-Snap, Main Shaft
33131	33138-33G23	Ring-Snap, Main Shaft
33131	33138-33G24	Ring-Snap, Main Shaft
33131	33131-20N01	Shaft-Main, Transfer
33131	33131-27C00	Shaft-Main, Transfer
33131	33131-30C01	Shaft-Main, Transfer
33133	33133-20N00	Sprocket-Front Drive
33133	33133-27C00	Sprocket-Front Drive
33136	33136-30C00	Bearing-Needle
33136	33136-33G00	Bearing-Needle
33138	33138-C6200	Washer-Thrust, High Gear
33151	33151-20N00	Shaft-Drive, Front
33151	33151-27C00	Shaft-Drive, Front
33151	33152-27C00	Chain-Front Drive, Transfer
33151	33152-30C00	Chain-Front Drive, Transfer
33151	33151-30C00	Shaft-Drive, Front
33152	32133-J2000	Bearing-Drive Shaft
33153	33153-27C00	Sleeve-Coupling
33153	33153-30C00	Sleeve-Coupling
33157	33157-05U00	Seal-O Ring, Oil Strainer
33192	33192-05U00	Pin-Dowel
33201	33201-05U00	Bolt-Fix, Oil Pump
33201	33201-05U10	Bolt-Fix, Oil Pump
38760	38760-1C100	Coupling Assy-Viscous, Transfer
38760	38760-27C01	Coupling Assy-Viscous, Transfer
811061625	08110-61625	Bolt-hexagon

OEM	Part name	Category
08110-61625	Bolt-hexagon	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31307-1C100	Plug	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31307-27C00	Plug-Taper	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31340-1C100	Pump Assy-Oil, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31340-1C101	Pump Assy-Oil, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31340-27C00	Pump Assy-Oil, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31342-05U01	Housing-Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31342-05U02	Housing-Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31342-27C00	Housing-Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31346-05U00	Gear-Inner, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31346-05U01	Gear-Inner, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31346-05U02	Gear-Inner, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31346-1P400	Gear-Inner, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31347-05U00	Gear-Outer, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31347-05U01	Gear-Outer, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31347-05U02	Gear-Outer, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31347-1P400	Gear-Outer, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31349-05U00	Pin-Pivot	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31350-27C00	Cover Assy-Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31350-27C01	Cover Assy-Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31525-05U00	Ring-Seal	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
31728-27C00	Strainer Assy-Oil	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
32133-J2000	Bearing-Drive Shaft	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
32203-J2000	Bearing-Main Drive	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
32701-27C00	Gear-Drive, Speedometer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
32701-30C00	Gear-Drive, Speedometer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33111-20N00	Seal-Oil, Transfer Cover	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33118-05U00	Seal-O Ring	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33131-20N01	Shaft-Main, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33131-27C00	Shaft-Main, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33131-30C01	Shaft-Main, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33133-20N00	Sprocket-Front Drive	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33133-27C00	Sprocket-Front Drive	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33136-30C00	Bearing-Needle	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33136-33G00	Bearing-Needle	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33138-33G20	Ring-Snap, Main Shaft	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33138-33G21	Ring-Snap, Main Shaft	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33138-33G22	Ring-Snap, Main Shaft	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33138-33G23	Ring-Snap, Main Shaft	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33138-33G24	Ring-Snap, Main Shaft	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33138-C6200	Washer-Thrust, High Gear	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33139-27C00	Bearing-Main, Transfer Rear	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33139-33G01	Bearing-Main, Transfer Rear	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33148-27C00	Spacer-Main Shaft	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33151-20N00	Shaft-Drive, Front	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33151-27C00	Shaft-Drive, Front	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33151-30C00	Shaft-Drive, Front	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33152-27C00	Chain-Front Drive, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33152-30C00	Chain-Front Drive, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33153-27C00	Sleeve-Coupling	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33153-30C00	Sleeve-Coupling	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33157-05U00	Seal-O Ring, Oil Strainer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33192-05U00	Pin-Dowel	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33201-05U00	Bolt-Fix, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33201-05U10	Bolt-Fix, Oil Pump	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33210-20N00	Flange Assy-Companion	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33210-33G00	Flange Assy-Companion	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33210-33G0A	Flange Assy-Companion	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
33220-27C00	Flange Assy-Companion	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
38216-31G00	Nut	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
38760-1C100	Coupling Assy-Viscous, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
38760-27C01	Coupling Assy-Viscous, Transfer	Transfer gear (1989-06-01 ~ ; 4WD(VTX11A) K)
