Search › Model › GC22
GC22

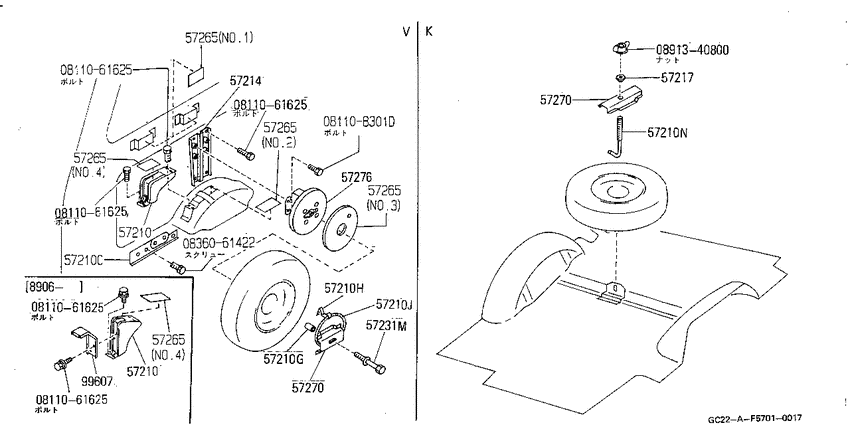

spare tire carrier (1986-11-01 ~ ; (K+V).4WD) 8
| # | OEM | Part name |
|---|---|---|
| 57210 | 57233-30C00 | Clip-Tool |
| 57210 | 74842-01E00 | MOUNTING RUBBER-JACK |
| 57210 | 57222-30C00 | Hanger-Spare Tire |
| 57217 | 57225-30C00 | Stopper-Spare Tire |
| 57270 | 57220-30C00 | Support-Spare Tire Carrier, Upper |
| 811061625 | 08110-61625 | Bolt-hexagon |
| 836061422 | 08360-61422 | スクリユ-,マシン |
| 891340800 | 08913-40800 | ナツト,ウイング |
| OEM | Part name | Category |
|---|---|---|
| 08110-61625 | Bolt-hexagon | spare tire carrier (1986-11-01 ~ ; (K+V).4WD) |
| 08360-61422 | スクリユ-,マシン | spare tire carrier (1986-11-01 ~ ; (K+V).4WD) |
| 08913-40800 | ナツト,ウイング | spare tire carrier (1986-11-01 ~ ; (K+V).4WD) |
| 57220-30C00 | Support-Spare Tire Carrier, Upper | spare tire carrier (1986-11-01 ~ ; (K+V).4WD) |
| 57222-30C00 | Hanger-Spare Tire | spare tire carrier (1986-11-01 ~ ; (K+V).4WD) |
| 57225-30C00 | Stopper-Spare Tire | spare tire carrier (1986-11-01 ~ ; (K+V).4WD) |
| 57233-30C00 | Clip-Tool | spare tire carrier (1986-11-01 ~ ; (K+V).4WD) |
| 74842-01E00 | MOUNTING RUBBER-JACK | spare tire carrier (1986-11-01 ~ ; (K+V).4WD) |
