GC22

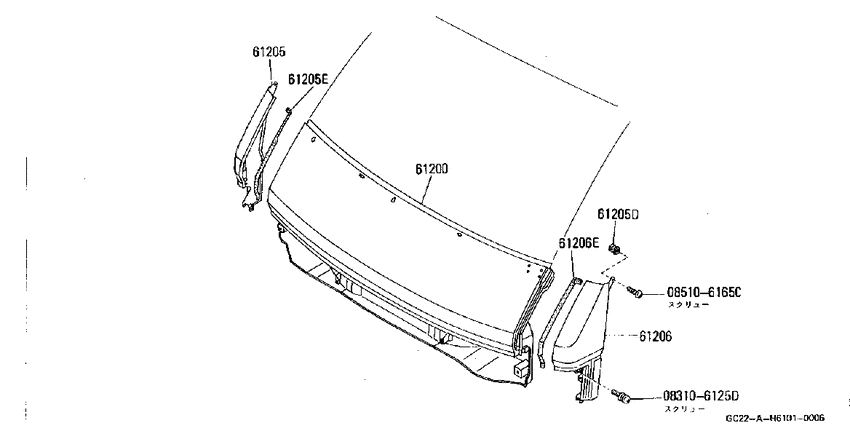

Front panel (1986-05-01 ~ ; K+V) 10
| # | OEM | Part name |
|---|---|---|
| 61200 | 61200-18C30 | Panel Assy-Front |
| 61200 | 61200-27C30 | Panel Assy-Front |
| 61200 | 61200-27C31 | Panel Assy-Front |
| 61205 | 61260-11C30 | Panel Assy-Front Corner, Rh |
| 61205 | 01281-00065 | GROMMET-SCREW |
| 61205 | 61273-11C00 | Rubber-Corner Panel, Rh |
| 61206 | 61261-11C30 | Panel Assy-Front Corner, Lh |
| 61206 | 61274-11C00 | Rubber-Corner Panel, Lh |
| 83106125 | 08310-6125D | スクリユ-,マシン |
| 85106165 | 08510-6165C | SCREWTAPPING |
| OEM | Part name | Category |
|---|---|---|
| 01281-00065 | GROMMET-SCREW | Front panel (1986-05-01 ~ ; K+V) |
| 08310-6125D | スクリユ-,マシン | Front panel (1986-05-01 ~ ; K+V) |
| 08510-6165C | SCREWTAPPING | Front panel (1986-05-01 ~ ; K+V) |
| 61200-18C30 | Panel Assy-Front | Front panel (1986-05-01 ~ ; K+V) |
| 61200-27C30 | Panel Assy-Front | Front panel (1986-05-01 ~ ; K+V) |
| 61200-27C31 | Panel Assy-Front | Front panel (1986-05-01 ~ ; K+V) |
| 61260-11C30 | Panel Assy-Front Corner, Rh | Front panel (1986-05-01 ~ ; K+V) |
| 61261-11C30 | Panel Assy-Front Corner, Lh | Front panel (1986-05-01 ~ ; K+V) |
| 61273-11C00 | Rubber-Corner Panel, Rh | Front panel (1986-05-01 ~ ; K+V) |
| 61274-11C00 | Rubber-Corner Panel, Lh | Front panel (1986-05-01 ~ ; K+V) |
