Search › Model › GC21W

GC21W

Suzuki CULTUS · 1996 · 2,207 parts · 111 categories

2,207 items

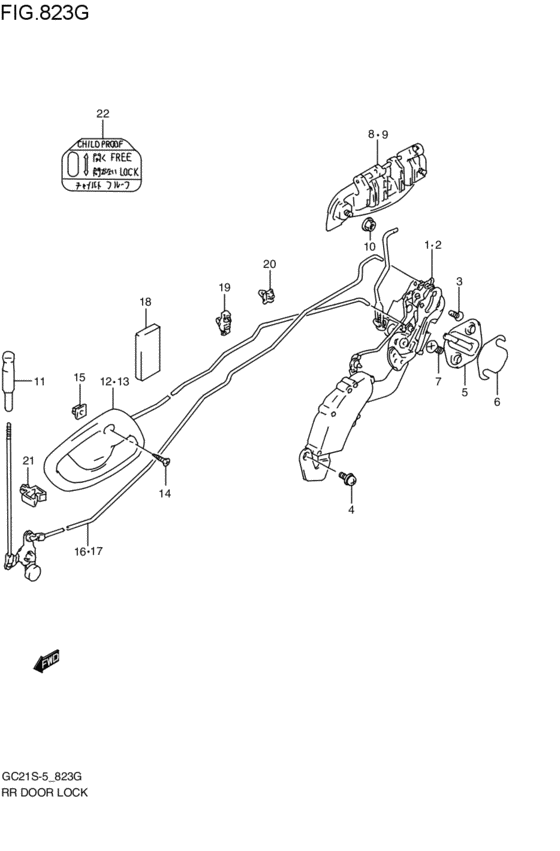

rear door lock (2000-05-01~2002-07-01) 27

#	OEM	Part name
1	82301-60G10-000	LATCH ASSY,RR DR,R
2	82302-60G10-000	LATCH ASSY,RR DR,L
3	09137-06025-000	SCREW(6X16)
4	02112-76123-000	Screw
4	02112-7612B-000	SCREW
5	82610-60A01-000	STRIKER,FR DOOR LATCH
6	78199-78000-000	SPACER,DOOR LOCK STRIKER
7	09137-08011-000	SCREW(8X18)
8	82830-60G00-5PK	HANDLE,RR DR OUTSIDE,R
9	82840-60G00-5PK	HANDLE,RR DR OUTSIDE,L
10	08361-15063-000	Nut
10	08361-1506A-000	NUT
11	82982-51F01-T01	KNOB,DOOR INSIDE LOCK
12	83103-60G01-T01	HANDLE ASSY,RR DR INSIDE,R
12	83103-60G02-T01	HANDLE,RR DR INSIDE,R
13	83104-60G01-T01	HANDLE ASSY,RR DR INSIDE,L
13	83104-60G02-T01	HANDLE,RR DR INSIDE,L
14	03521-05163-000	Screw
14	03521-0516A-000	SCREW
15	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
16	83240-60G01-000	ROD,RR DOOR INSIDE LOCK,R
17	83250-60G01-000	Rod,rr door inside lock,l
18	77591-75000-000	PAD
19	83271-50E00-000	CLIP,DR HANDLE ROD
20	83271-84G00-000	CLIP
21	09403-07324-000	CLAMP
22	86951-78004-000	CAUTION PLATE,CHILD PROOF

OEM	Part name	Category
02112-76123-000	Screw	rear door lock (2000-05-01~2002-07-01)
02112-7612B-000	SCREW	rear door lock (2000-05-01~2002-07-01)
03521-05163-000	Screw	rear door lock (2000-05-01~2002-07-01)
03521-0516A-000	SCREW	rear door lock (2000-05-01~2002-07-01)
08361-15063-000	Nut	rear door lock (2000-05-01~2002-07-01)
08361-1506A-000	NUT	rear door lock (2000-05-01~2002-07-01)
09137-06025-000	SCREW(6X16)	rear door lock (2000-05-01~2002-07-01)
09137-08011-000	SCREW(8X18)	rear door lock (2000-05-01~2002-07-01)
09403-07324-000	CLAMP	rear door lock (2000-05-01~2002-07-01)
77591-75000-000	PAD	rear door lock (2000-05-01~2002-07-01)
78199-78000-000	SPACER,DOOR LOCK STRIKER	rear door lock (2000-05-01~2002-07-01)
82301-60G10-000	LATCH ASSY,RR DR,R	rear door lock (2000-05-01~2002-07-01)
82302-60G10-000	LATCH ASSY,RR DR,L	rear door lock (2000-05-01~2002-07-01)
82610-60A01-000	STRIKER,FR DOOR LATCH	rear door lock (2000-05-01~2002-07-01)
82830-60G00-5PK	HANDLE,RR DR OUTSIDE,R	rear door lock (2000-05-01~2002-07-01)
82840-60G00-5PK	HANDLE,RR DR OUTSIDE,L	rear door lock (2000-05-01~2002-07-01)
82982-51F01-T01	KNOB,DOOR INSIDE LOCK	rear door lock (2000-05-01~2002-07-01)
83103-60G01-T01	HANDLE ASSY,RR DR INSIDE,R	rear door lock (2000-05-01~2002-07-01)
83103-60G02-T01	HANDLE,RR DR INSIDE,R	rear door lock (2000-05-01~2002-07-01)
83104-60G01-T01	HANDLE ASSY,RR DR INSIDE,L	rear door lock (2000-05-01~2002-07-01)
83104-60G02-T01	HANDLE,RR DR INSIDE,L	rear door lock (2000-05-01~2002-07-01)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	rear door lock (2000-05-01~2002-07-01)
83240-60G01-000	ROD,RR DOOR INSIDE LOCK,R	rear door lock (2000-05-01~2002-07-01)
83250-60G01-000	Rod,rr door inside lock,l	rear door lock (2000-05-01~2002-07-01)
83271-50E00-000	CLIP,DR HANDLE ROD	rear door lock (2000-05-01~2002-07-01)
83271-84G00-000	CLIP	rear door lock (2000-05-01~2002-07-01)
86951-78004-000	CAUTION PLATE,CHILD PROOF	rear door lock (2000-05-01~2002-07-01)
