| 08310-00063-000 |
Nut |

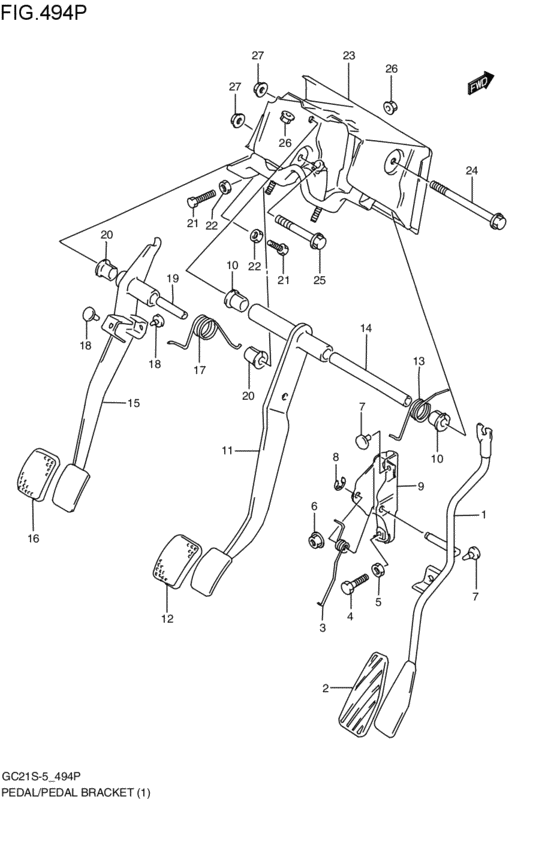

pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 08310-0006A-000 |
NUT |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 08316-10103-000 |
Nut |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 08316-1010B-000 |
NUT |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 08332-11073-000 |
E ring |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 08332-1107A-000 |
E RING |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09100-06088-000 |
BOLT(6X30) |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09100-06150-000 |
BOLT(6X31) - Bolt, adjuster |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09100-10226-000 |
BOLT(10X85) |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09103-10123-000 |
BOLT(10X165) |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09159-08069-000 |
Nut |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09159-08135-000 |
NUT |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09180-10017-000 |
SPACER(10X13X66.6) |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09180-10134-000 |
SPACER(10X13X148.2) |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09307-13005-000 |
BUSH - Bushing |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09321-06026-000 |
CUSHION |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09448-15011-000 |
SPRING |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09448-29014-000 |
SPRING |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 09448-29016-000 |
SPRING |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 49410-60G00-000 |
PEDAL,ACCELERATOR |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 49510-60B21-000 |
BRACKET,ACCELERATOR PEDAL |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 49610-60G01-000 |
PEDAL,BRAKE |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 49710-64G01-000 |
BRACKET,PEDAL |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 49751-58J00-000 |
PAD,PEDAL |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 49751-79001-000 |
Pad, pedal |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
| 49810-60G01-000 |
PEDAL,CLUTCH |
pedal / pedal bracket (MT:G15A; 2000-05-01~2001-09-01) |
