GC21S

Suzuki CULTUS · 1994 · 2,421 parts · 117 categories

2,421 items

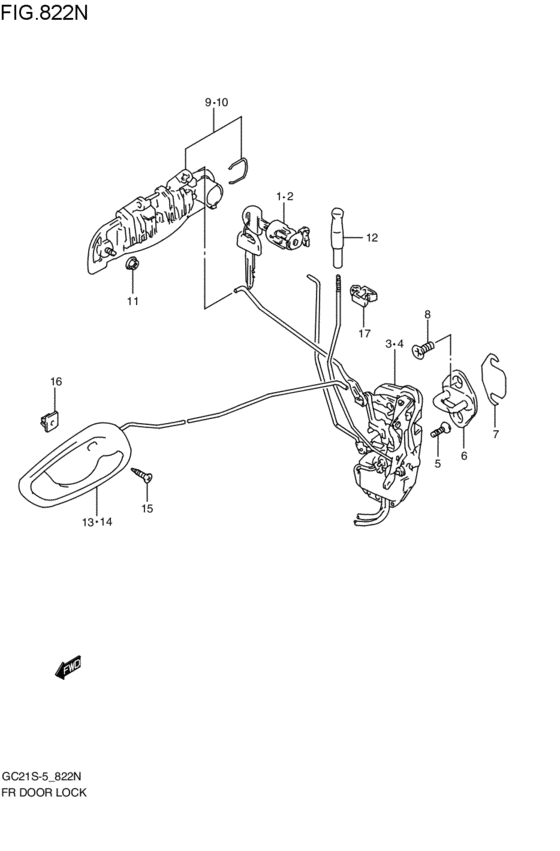

front door lock (2000-05-01~2002-07-01) 26

#	OEM	Part name
1	82200-61840-000	CYLINDER,FR DR LOCK,R
2	82200-61870-000	CYLINDER,FR DR LOCK,L
3	82201-60G10-000	LATCH ASSY,FR DR,R
4	82202-60G10-000	LATCH ASSY,FR DR,L
5	09137-06025-000	SCREW(6X16)
6	82610-60A01-000	STRIKER,FR DOOR LATCH
7	78199-78000-000	SPACER,DOOR LOCK STRIKER
8	09137-08011-000	SCREW(8X18)
9	82810-60G00-Z2S	HANDLE,FR DR OUTSIDE,R
9	82810-60G00-Z2T	HANDLE,FR DR OUTSIDE,R
9	82810-60G00-5PK	HANDLE,FR DR OUTSIDE,R
9	82810-60G00-Z7T	ハンドル,ドアアウトサイド,ライト(ホワイト)
10	82820-60G00-Z2S	HANDLE,FR DR OUTSIDE,L
10	82820-60G00-Z2T	HANDLE,FR DR OUTSIDE,L
10	82820-60G00-Z7T	ハンドル,ドアアウトサイド,レフト(ホワイト)
11	08361-15063-000	Nut
11	08361-1506A-000	NUT
12	82982-51F01-T01	KNOB,DOOR INSIDE LOCK
13	83101-60G01-T01	HANDLE ASSY,FR DR INSIDE,R
13	83101-60G02-T01	HANDLE,FR DR INSIDE,R
14	83102-60G01-T01	HANDLE ASSY,FR DR INSIDE,L
14	83102-60G02-T01	HANDLE,FR DR INSIDE,L
15	03521-05163-000	Screw
15	03521-0516A-000	SCREW
16	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
17	09403-07324-000	CLAMP

OEM	Part name	Category
03521-05163-000	Screw	front door lock (2000-05-01~2002-07-01)
03521-0516A-000	SCREW	front door lock (2000-05-01~2002-07-01)
08361-15063-000	Nut	front door lock (2000-05-01~2002-07-01)
08361-1506A-000	NUT	front door lock (2000-05-01~2002-07-01)
09137-06025-000	SCREW(6X16)	front door lock (2000-05-01~2002-07-01)
09137-08011-000	SCREW(8X18)	front door lock (2000-05-01~2002-07-01)
09403-07324-000	CLAMP	front door lock (2000-05-01~2002-07-01)
78199-78000-000	SPACER,DOOR LOCK STRIKER	front door lock (2000-05-01~2002-07-01)
82200-61840-000	CYLINDER,FR DR LOCK,R	front door lock (2000-05-01~2002-07-01)
82200-61870-000	CYLINDER,FR DR LOCK,L	front door lock (2000-05-01~2002-07-01)
82201-60G10-000	LATCH ASSY,FR DR,R	front door lock (2000-05-01~2002-07-01)
82202-60G10-000	LATCH ASSY,FR DR,L	front door lock (2000-05-01~2002-07-01)
82610-60A01-000	STRIKER,FR DOOR LATCH	front door lock (2000-05-01~2002-07-01)
82810-60G00-5PK	HANDLE,FR DR OUTSIDE,R	front door lock (2000-05-01~2002-07-01)
82810-60G00-Z2S	HANDLE,FR DR OUTSIDE,R	front door lock (2000-05-01~2002-07-01)
82810-60G00-Z2T	HANDLE,FR DR OUTSIDE,R	front door lock (2000-05-01~2002-07-01)
82810-60G00-Z7T	ハンドル,ドアアウトサイド,ライト(ホワイト)	front door lock (2000-05-01~2002-07-01)
82820-60G00-Z2S	HANDLE,FR DR OUTSIDE,L	front door lock (2000-05-01~2002-07-01)
82820-60G00-Z2T	HANDLE,FR DR OUTSIDE,L	front door lock (2000-05-01~2002-07-01)
82820-60G00-Z7T	ハンドル,ドアアウトサイド,レフト(ホワイト)	front door lock (2000-05-01~2002-07-01)
82982-51F01-T01	KNOB,DOOR INSIDE LOCK	front door lock (2000-05-01~2002-07-01)
83101-60G01-T01	HANDLE ASSY,FR DR INSIDE,R	front door lock (2000-05-01~2002-07-01)
83101-60G02-T01	HANDLE,FR DR INSIDE,R	front door lock (2000-05-01~2002-07-01)
83102-60G01-T01	HANDLE ASSY,FR DR INSIDE,L	front door lock (2000-05-01~2002-07-01)
83102-60G02-T01	HANDLE,FR DR INSIDE,L	front door lock (2000-05-01~2002-07-01)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	front door lock (2000-05-01~2002-07-01)
