| 01421-06163-000 |
Bolt - Bolt, stud |

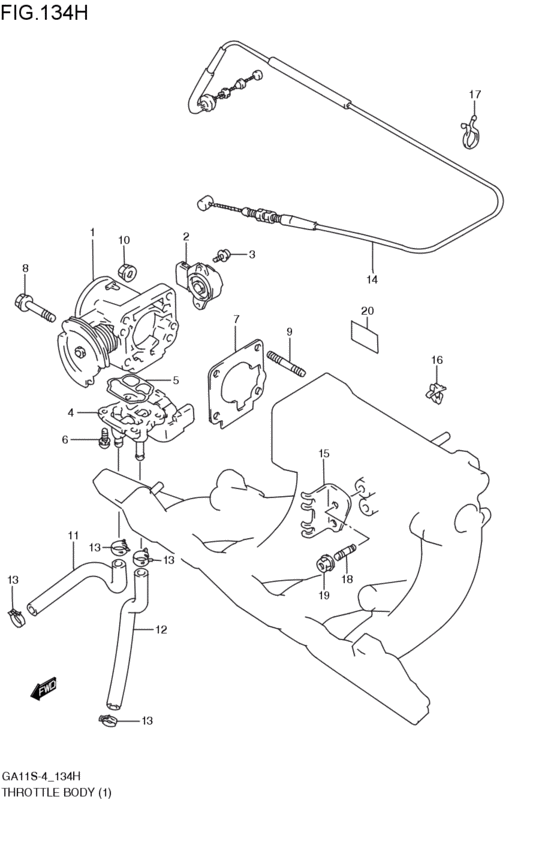

throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 01421-0616A-000 |
BOLT,STUD |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 01421-08503-000 |
Bolt, stud - Stud bolt |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 01421-0850A-000 |
BOLT,STUD |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 01550-08553-000 |
Bolt |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 01550-0855A-000 |
Bolt - Bolt, gear holder |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 01550-0855B-000 |
Bolt |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 02112-35163-000 |
Screw |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 02112-3516A-000 |
SCREW |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 02112-74123-000 |
Screw |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 02112-7412A-000 |
SCREW |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 08316-10083-000 |
Nut |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 08316-1008B-000 |
NUT |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 09159-06077-000 |
NUT |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 09403-04307-000 |
CLAMP |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 09408-00012-000 |
CLIP(ID:11.5) - Clamp, stop switch lead (id:11.5) |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 13400-64G00-000 |
BODY ASSY THROTTLE |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 13400-64G01-000 |
BODY ASSY,THROTTLE |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 13420-52G00-000 |
SENSOR,THROTTLE POSITION |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 13421-60G00-000 |
GASKET,THROTTLE BODY - Gasket, throttle body |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 13491-64G01-000 |
HOSE,WATER THROT BODY INLET |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 13493-64G01-000 |
HOSE,WATER THROT BODY OUTLET |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 14139-70G30-000 |
GASKET,ISC VALVE |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 15910-62G00-000 |
CABLE ASSY,ACCEL |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 15919-64G00-000 |
GUIDE,ACCEL CABLE |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 18137-64G00-000 |
VALVE ASSY |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 18137-64G01-000 |
VALVE,ISC |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
| 84761-50X50-000 |
SEAL,140X190 - Seal, rr defogger wire hole |
throttle body (G13B,G15A,G16A; 1998-05-01~2000-02-01) |
