Search › Model › GB31S
GB31S

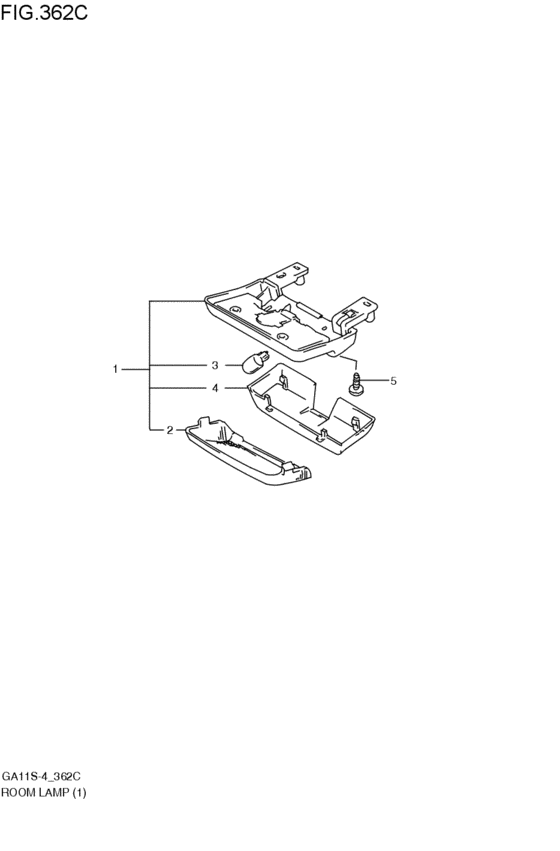

interior lamp (3DR; 1998-05-01~2000-02-01) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 36210-60B02-6GS | LAMP ASSY,ROOM |
| 2 | 36212-60B00-000 | LENS,ROOM LAMP |
| 3 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 3 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 4 | 36240-60B00-6GS | COVER,ROOM LAMP |
| 5 | 09132-05017-000 | SCREW(5X14) |
| OEM | Part name | Category |
|---|---|---|
| 09132-05017-000 | SCREW(5X14) | interior lamp (3DR; 1998-05-01~2000-02-01) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | interior lamp (3DR; 1998-05-01~2000-02-01) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | interior lamp (3DR; 1998-05-01~2000-02-01) |
| 36210-60B02-6GS | LAMP ASSY,ROOM | interior lamp (3DR; 1998-05-01~2000-02-01) |
| 36212-60B00-000 | LENS,ROOM LAMP | interior lamp (3DR; 1998-05-01~2000-02-01) |
| 36240-60B00-6GS | COVER,ROOM LAMP | interior lamp (3DR; 1998-05-01~2000-02-01) |
