| 03141-0512A-000 |
SCREW - Screw, belt cooling duct |

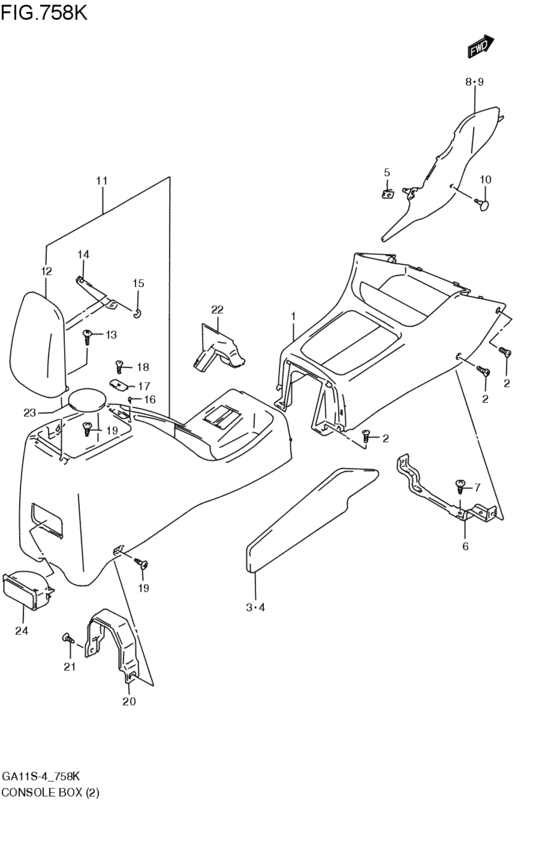

console box (AT; 1998-05-01~2000-02-01) |
| 03141-0516A-000 |
SCREW |
console box (AT; 1998-05-01~2000-02-01) |
| 03141-06123-000 |
Screw 6x12 |
console box (AT; 1998-05-01~2000-02-01) |
| 03141-0612A-000 |
SCREW |
console box (AT; 1998-05-01~2000-02-01) |
| 03142-05123-000 |
Screw - Screw, belt cooling duct |
console box (AT; 1998-05-01~2000-02-01) |
| 03142-05163-000 |
Screw |
console box (AT; 1998-05-01~2000-02-01) |
| 03521-04123-000 |
スクリュ |
console box (AT; 1998-05-01~2000-02-01) |
| 03521-0412A-000 |
SCREW |
console box (AT; 1998-05-01~2000-02-01) |
| 03541-05163-000 |
Screw |
console box (AT; 1998-05-01~2000-02-01) |
| 03541-0516A-000 |
SCREW |
console box (AT; 1998-05-01~2000-02-01) |
| 08332-11043-000 |
E ring |
console box (AT; 1998-05-01~2000-02-01) |
| 08332-1104A-000 |
E RING |
console box (AT; 1998-05-01~2000-02-01) |
| 08332-1104B-000 |
E RING |
console box (AT; 1998-05-01~2000-02-01) |
| 09148-05045-000 |
NUT |
console box (AT; 1998-05-01~2000-02-01) |
| 09409-08321-5ES |
CLIP(BLACK) |
console box (AT; 1998-05-01~2000-02-01) |
| 09409-08321-T01 |
CLIP(GRAY) |
console box (AT; 1998-05-01~2000-02-01) |
| 75811-64G00-T01 |
BOX,FLOOR CONSOLE FR |
console box (AT; 1998-05-01~2000-02-01) |
| 75813-80F00-000 |
CUSHION |
console box (AT; 1998-05-01~2000-02-01) |
| 75814-80F00-000 |
PLATE,STOPPER |
console box (AT; 1998-05-01~2000-02-01) |
| 75815-60G00-000 |
BRACKET,FLOOR CONSOLE BOX,FR |
console box (AT; 1998-05-01~2000-02-01) |
| 75816-60G00-000 |
BRACKET,FLOOR CONSOLE BOX,RR |
console box (AT; 1998-05-01~2000-02-01) |
| 75820-60G00-T01 |
EXTENSION,CONSOLE BOX,R |
console box (AT; 1998-05-01~2000-02-01) |
| 75830-60G00-T01 |
Extension,console box,l(gray) |
console box (AT; 1998-05-01~2000-02-01) |
| 75831-60G00-000 |
SILENCER,CONSOLE BOX FRONT,R |
console box (AT; 1998-05-01~2000-02-01) |
| 75831-60G10-000 |
SILENCER,CONSOLE BOX FRONT,L |
console box (AT; 1998-05-01~2000-02-01) |
| 75870-60G10-T01 |
BOX ASSY,FLOOR CONSOLE REAR |
console box (AT; 1998-05-01~2000-02-01) |
| 75872-60G00-T01 |
CAP,FL CONSOLE BOX RR |
console box (AT; 1998-05-01~2000-02-01) |
| 75879-60G00-000 |
Sheet,console box rear |
console box (AT; 1998-05-01~2000-02-01) |
| 75880-60G00-T01 |
LID,FLOOR CSL BOX RR |
console box (AT; 1998-05-01~2000-02-01) |
| 75883-60G01-000 |
STOPPER,CONSOLE BOX LID |
console box (AT; 1998-05-01~2000-02-01) |
| 89850-50J00-P4Z |
ASHTRAY,RR |
console box (AT; 1998-05-01~2000-02-01) |
| 89850-50J00-T01 |
ASHTRAY,RR |
console box (AT; 1998-05-01~2000-02-01) |
| 89850-60B00-T01 |
ASH TRAY |
console box (AT; 1998-05-01~2000-02-01) |
