GA413

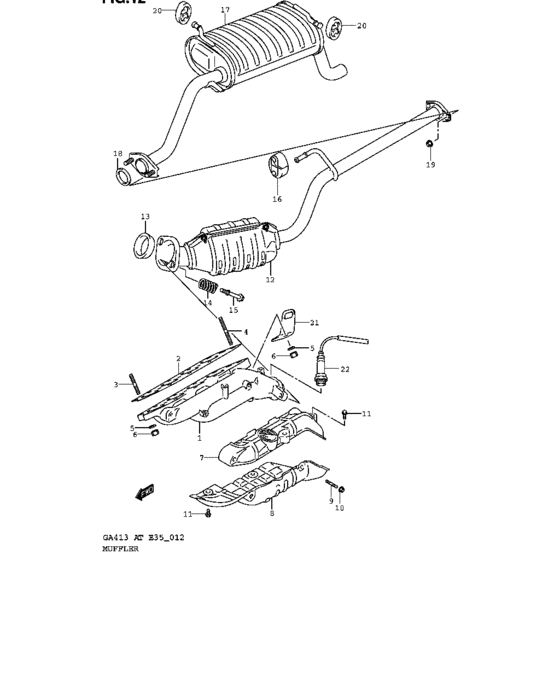

Muffler (MUFFLER) 42
| # | OEM | Part name |
|---|---|---|
| 1 | 14111-76A41-000 | MANIFOLD,EXH |
| 2 | 14140-52G00-000 | Gasket, exhaust manifold |
| 3 | 01421-08253-000 | Stud bolt, no.2 |
| 3 | 01421-0825A-000 | BOLT,STUD |
| 3 | 09108-08246-000 | BOLT,STUD |
| 4 | 01421-08353-000 | Bolt, stud - Stud bolt |
| 4 | 01421-0835A-000 | BOLT,STUD - Stud bolt (8x35) |
| 5 | 08322-01083-000 | WASHER |
| 5 | 08322-0108B-000 | WASHER |
| 5 | 08322-0108A-000 | WASHER |
| 6 | 08310-00083-000 | Nut |
| 6 | 08310-0008B-000 | NUT |
| 6 | 08310-0008A-000 | NUT - Nut, bead stopper |
| 7 | 14120-76A40-000 | COVER,EXH MANF |
| 7 | 14120-76A41-000 | COVER,EXH MANF UPR |
| 8 | 14130-76A40-000 | COVER,EXH MANF LWR |
| 9 | 01411-06123-000 | Bolt, stud - Stud bolt |
| 9 | 01411-0612A-000 | BOLT,STUD |
| 10 | 09159-06077-000 | NUT |
| 11 | 09103-06168-000 | BOLT(6X10) |
| 12 | 14190-76A41-000 | パイプ,エキゾースト |
| 12 | 14190-76A4V-000 | PIPE,EXHAUST |
| 12 | 14190-76A70-000 | パイプ,エキゾースト |
| 12 | 14190-76A7V-000 | PIPE,EXHAUST |
| 13 | 14183-50G00-000 | Ring, seal |
| 13 | 14183-76A00-000 | RING,SEAL EXH PIPE |
| 14 | 14492-82600-000 | Spring |
| 14 | 14492-67D00-000 | SPRING,EXH PIPE |
| 15 | 09119-10041-000 | BOLT(10X65) |
| 15 | 09119-10073-000 | BOLT(10X65) |
| 16 | 14281-60G00-000 | MOUNTING MUFFLER |
| 16 | 14281-60G01-000 | MOUNTING,MUF |
| 17 | 14300-76A32-000 | MUFFLER |
| 18 | 14182-60B00-000 | GASKET,EXH PIPE |
| 18 | 14182-60B01-000 | Gasket,exh Pipe |
| 19 | 09159-10049-000 | Nut |
| 19 | 09159-10102-000 | NUT |
| 20 | 14281-60G10-000 | Mounting,muffler |
| 20 | 14281-60G11-000 | MOUNTING,MUFFLER(HS60) |
| 21 | 11851-76A00-000 | HOOK,ENGINE |
| 22 | 18213-50G01-000 | SENSOR,OXYGEN |
| 22 | 18213-54D01-000 | SENSOR ASSY,OXYGEN |
| OEM | Part name | Category |
|---|---|---|
| 01411-06123-000 | Bolt, stud - Stud bolt | Muffler (MUFFLER) |
| 01411-0612A-000 | BOLT,STUD | Muffler (MUFFLER) |
| 01421-08253-000 | Stud bolt, no.2 | Muffler (MUFFLER) |
| 01421-0825A-000 | BOLT,STUD | Muffler (MUFFLER) |
| 01421-08353-000 | Bolt, stud - Stud bolt | Muffler (MUFFLER) |
| 01421-0835A-000 | BOLT,STUD - Stud bolt (8x35) | Muffler (MUFFLER) |
| 08310-00083-000 | Nut | Muffler (MUFFLER) |
| 08310-0008A-000 | NUT - Nut, bead stopper | Muffler (MUFFLER) |
| 08310-0008B-000 | NUT | Muffler (MUFFLER) |
| 08322-01083-000 | WASHER | Muffler (MUFFLER) |
| 08322-0108A-000 | WASHER | Muffler (MUFFLER) |
| 08322-0108B-000 | WASHER | Muffler (MUFFLER) |
| 09103-06168-000 | BOLT(6X10) | Muffler (MUFFLER) |
| 09108-08246-000 | BOLT,STUD | Muffler (MUFFLER) |
| 09119-10041-000 | BOLT(10X65) | Muffler (MUFFLER) |
| 09119-10073-000 | BOLT(10X65) | Muffler (MUFFLER) |
| 09159-06077-000 | NUT | Muffler (MUFFLER) |
| 09159-10049-000 | Nut | Muffler (MUFFLER) |
| 09159-10102-000 | NUT | Muffler (MUFFLER) |
| 11851-76A00-000 | HOOK,ENGINE | Muffler (MUFFLER) |
| 14111-76A41-000 | MANIFOLD,EXH | Muffler (MUFFLER) |
| 14120-76A40-000 | COVER,EXH MANF | Muffler (MUFFLER) |
| 14120-76A41-000 | COVER,EXH MANF UPR | Muffler (MUFFLER) |
| 14130-76A40-000 | COVER,EXH MANF LWR | Muffler (MUFFLER) |
| 14140-52G00-000 | Gasket, exhaust manifold | Muffler (MUFFLER) |
| 14182-60B00-000 | GASKET,EXH PIPE | Muffler (MUFFLER) |
| 14182-60B01-000 | Gasket,exh Pipe | Muffler (MUFFLER) |
| 14183-50G00-000 | Ring, seal | Muffler (MUFFLER) |
| 14183-76A00-000 | RING,SEAL EXH PIPE | Muffler (MUFFLER) |
| 14190-76A41-000 | パイプ,エキゾースト | Muffler (MUFFLER) |
| 14190-76A4V-000 | PIPE,EXHAUST | Muffler (MUFFLER) |
| 14190-76A70-000 | パイプ,エキゾースト | Muffler (MUFFLER) |
| 14190-76A7V-000 | PIPE,EXHAUST | Muffler (MUFFLER) |
| 14281-60G00-000 | MOUNTING MUFFLER | Muffler (MUFFLER) |
| 14281-60G01-000 | MOUNTING,MUF | Muffler (MUFFLER) |
| 14281-60G10-000 | Mounting,muffler | Muffler (MUFFLER) |
| 14281-60G11-000 | MOUNTING,MUFFLER(HS60) | Muffler (MUFFLER) |
| 14300-76A32-000 | MUFFLER | Muffler (MUFFLER) |
| 14492-67D00-000 | SPRING,EXH PIPE | Muffler (MUFFLER) |
| 14492-82600-000 | Spring | Muffler (MUFFLER) |
| 18213-50G01-000 | SENSOR,OXYGEN | Muffler (MUFFLER) |
| 18213-54D01-000 | SENSOR ASSY,OXYGEN | Muffler (MUFFLER) |
