GA413

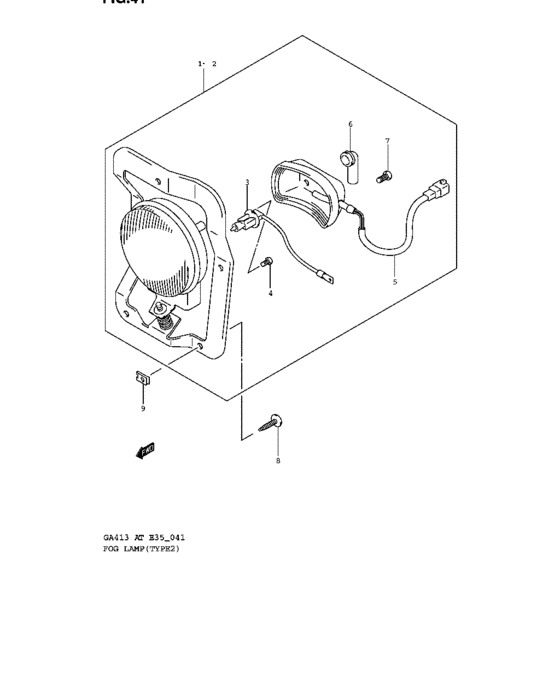

Fog lamp (TYPE 2) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 35501-76A00-000 | LAMP ASSY,FOG,R |
| 2 | 35502-76A00-000 | LAMP ASSY,FOG,L |
| 3 | 09471-12106-000 | BULB(12V55W,H3) |
| 3 | 09471-12106-CDN | Bulb,h3 64151 |
| 4 | 02112-03063-000 | Screw 3x6 |
| 4 | 02112-0306B-000 | SCREW |
| 5 | 35532-77A00-000 | Socket & cord assy,fog lamp |
| 6 | 35529-77A00-000 | TUBE |
| 7 | 35546-77A00-000 | SCREW |
| 8 | 03541-05163-000 | Screw |
| 8 | 03541-0516A-000 | SCREW |
| 9 | 09148-05038-000 | NUT - Nut, inner |
| OEM | Part name | Category |
|---|---|---|
| 02112-03063-000 | Screw 3x6 | Fog lamp (TYPE 2) |
| 02112-0306B-000 | SCREW | Fog lamp (TYPE 2) |
| 03541-05163-000 | Screw | Fog lamp (TYPE 2) |
| 03541-0516A-000 | SCREW | Fog lamp (TYPE 2) |
| 09148-05038-000 | NUT - Nut, inner | Fog lamp (TYPE 2) |
| 09471-12106-000 | BULB(12V55W,H3) | Fog lamp (TYPE 2) |
| 09471-12106-CDN | Bulb,h3 64151 | Fog lamp (TYPE 2) |
| 35501-76A00-000 | LAMP ASSY,FOG,R | Fog lamp (TYPE 2) |
| 35502-76A00-000 | LAMP ASSY,FOG,L | Fog lamp (TYPE 2) |
| 35529-77A00-000 | TUBE | Fog lamp (TYPE 2) |
| 35532-77A00-000 | Socket & cord assy,fog lamp | Fog lamp (TYPE 2) |
| 35546-77A00-000 | SCREW | Fog lamp (TYPE 2) |
