Search › Model › GA413
GA413

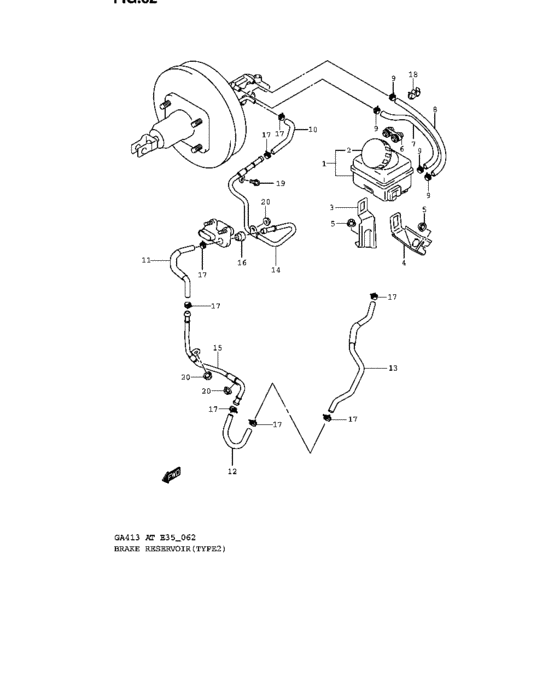

Brake reservoir (TYPE 2) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 51200-78A10-000 | RESERVOIR ASSY,BRAKE MASTER |
| 2 | 51220-50F10-000 | CAP,RESERVOIR |
| 3 | 51210-78A00-000 | BRACKET,RESERVOIR,R |
| 4 | 51212-78A00-000 | Bracket, reservoir lh |
| 4 | 51212-78A01-000 | BRACKET,RESERVOIR,L |
| 5 | 09159-06076-000 | NUT |
| 6 | 51259-78A00-000 | GROMMET,BRAKE RESERVOIR HOSE |
| 7 | 51250-78A00-000 | Hose, reservoir pri |
| 7 | 51260-67H00-000 | HOSE,RESERVOIR |
| 8 | 51260-76A00-000 | Hose, reservoir sec |
| 9 | 09401-13417-000 | CLIP |
| 10 | 51010-61H00-000 | HOSE,BRAKE VACUUM NO.1 |
| 11 | 51020-78A00-000 | HOSE,BRAKE VACUUM NO.2 |
| 12 | 51030-78A00-000 | HOSE,BRAKE VACUUM NO.3 |
| 13 | 51040-76A01-000 | HOSE,BRAKE VACUUM NO.4 |
| 14 | 51060-60H00-000 | PIPE,BRAKE VACUUM NO.1 |
| 15 | 51070-78A00-000 | PIPE,BRAKE VACUUM NO.2 |
| 16 | 51632-78A00-000 | GROMMET,VACUUM PIPE |
| 17 | 09401-15404-000 | CLIP |
| 18 | 09408-00155-000 | CLAMP |
| 19 | 02162-06123-000 | Bolt (6x12) |
| 19 | 02162-0612B-000 | SCREW - Bolt |
| 19 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 02162-06123-000 | Bolt (6x12) | Brake reservoir (TYPE 2) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Brake reservoir (TYPE 2) |
| 02162-0612B-000 | SCREW - Bolt | Brake reservoir (TYPE 2) |
| 09159-06076-000 | NUT | Brake reservoir (TYPE 2) |
| 09401-13417-000 | CLIP | Brake reservoir (TYPE 2) |
| 09401-15404-000 | CLIP | Brake reservoir (TYPE 2) |
| 09408-00155-000 | CLAMP | Brake reservoir (TYPE 2) |
| 51010-61H00-000 | HOSE,BRAKE VACUUM NO.1 | Brake reservoir (TYPE 2) |
| 51020-78A00-000 | HOSE,BRAKE VACUUM NO.2 | Brake reservoir (TYPE 2) |
| 51030-78A00-000 | HOSE,BRAKE VACUUM NO.3 | Brake reservoir (TYPE 2) |
| 51040-76A01-000 | HOSE,BRAKE VACUUM NO.4 | Brake reservoir (TYPE 2) |
| 51060-60H00-000 | PIPE,BRAKE VACUUM NO.1 | Brake reservoir (TYPE 2) |
| 51070-78A00-000 | PIPE,BRAKE VACUUM NO.2 | Brake reservoir (TYPE 2) |
| 51200-78A10-000 | RESERVOIR ASSY,BRAKE MASTER | Brake reservoir (TYPE 2) |
| 51210-78A00-000 | BRACKET,RESERVOIR,R | Brake reservoir (TYPE 2) |
| 51212-78A00-000 | Bracket, reservoir lh | Brake reservoir (TYPE 2) |
| 51212-78A01-000 | BRACKET,RESERVOIR,L | Brake reservoir (TYPE 2) |
| 51220-50F10-000 | CAP,RESERVOIR | Brake reservoir (TYPE 2) |
| 51250-78A00-000 | Hose, reservoir pri | Brake reservoir (TYPE 2) |
| 51259-78A00-000 | GROMMET,BRAKE RESERVOIR HOSE | Brake reservoir (TYPE 2) |
| 51260-67H00-000 | HOSE,RESERVOIR | Brake reservoir (TYPE 2) |
| 51260-76A00-000 | Hose, reservoir sec | Brake reservoir (TYPE 2) |
| 51632-78A00-000 | GROMMET,VACUUM PIPE | Brake reservoir (TYPE 2) |
