Search › Model › GA21S

GA21S

Suzuki CULTUS · 1994 · 2,693 parts · 121 categories

2,693 items

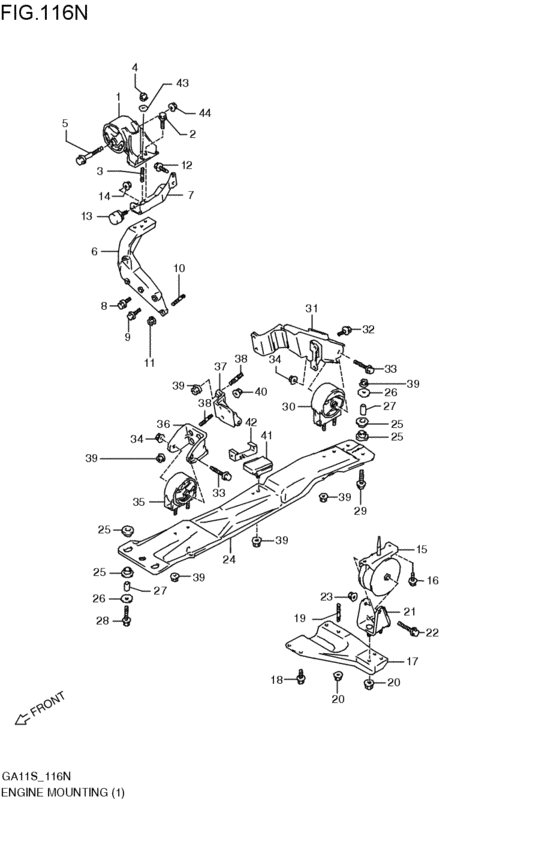

engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01) 60

#	OEM	Part name
1	11610-60G00-000	MOUNTING ENGINE RH
1	11610-60G10-000	MOUNTING,ENG,R
2	01550-10353-000	Bolt
2	01550-1035A-000	Bolt - Bolt, fr fork upper
3	01411-10303-000	スタッドボルト
3	01411-1030A-000	BOLT,STUD
4	08316-10103-000	Nut
4	08316-1010B-000	NUT
5	01550-10953-000	Bolt
5	01550-1095A-000	Bolt
5	09103-10288-000	ボルト,10X105
5	09103-10414-000	BOLT(10X105)
6	11641-60G00-000	BRACKET,ENG MTG,R
7	11642-60G00-000	STIFFENER RH MTG BRKET
7	11642-60G01-000	STIFFNER RH MTG BRKET
8	01550-10403-000	Bolt - Bolt, rear lh (10x40)
8	01550-1040B-000	Bolt
8	01550-1040A-000	Bolt
9	01550-10453-000	Bolt
9	01550-1045B-000	Bolt
10	09108-10124-000	BOLT,STUD
12	01550-08203-000	Bolt
12	01550-0820B-000	Bolt
12	01550-0820A-000	Bolt - Bolt, funnel bracket
13	11643-60G00-000	DAMPER
13	11643-60G02-000	DAMPER,MOUNTING,R
14	08316-10083-000	Nut
14	08316-1008B-000	NUT
15	11620-60G00-000	MOUNTING ENG FRT
15	11620-62G01-000	MOUNTING,ENG,L
16	01550-10253-000	Bolt - Bolt, rr swgarm bracket
16	01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l
16	01550-1025A-000	Bolt - Bolt, drive gear
17	11650-60G00-000	BRACKET,ENG MTG NO.1,L
19	01411-08203-000	Stud 8x20 - Stud bolt
19	01411-0820B-000	BOLT,STUD
21	11670-60G00-000	ブラケット,エンジンレフトマウンチング,NO.2
21	11670-60G01-000	BRACKET,ENG MTG,L
22	01550-10803-000	Bolt - Bolt, tachometer
22	01550-1080A-000	Bolt
24	11630-60G01-000	MEMBER MOUNTING
24	11630-65G51-000	MEMBER,MTG
25	11684-60G00-000	CUSHION,MTG MEMBER
26	11685-84000-000	WASHER
26	11685-79J00-000	WASHER
27	09180-10102-000	スペーサ,10.1X13.8X19
27	09180-10152-000	SPACER(10.2X14X19) - Spacer (id:10.1,od:13.8)
28	01550-10503-000	Bolt - Bolt, rh
28	01550-1050B-000	Bolt
30	11710-60G00-000	MOUNTING ENGINE RR
30	11710-62G00-000	MOUNTING,ENG RR
31	11740-60G00-000	BRACKET,ENG RR MTG
35	11720-60G00-000	BUSH ENG FRT TORQUE
35	11720-62G00-000	BUSH,ENG FR TORQUE
36	11760-60G00-000	BRACKET,ENG FR BUSH NO.1
37	11771-60G00-000	BRACKET,ENG FR BUSH NO.2
38	01421-10253-000	Stud bolt - Bolt, axle housing front
38	01421-1025B-000	BOLT,STUD
43	09160-10506-000	Washer - Washer, bal sprocket (10.5x22x2.3)
43	09160-10039-000	WASHER(10.5X22X2.3)

OEM	Part name	Category
01411-08203-000	Stud 8x20 - Stud bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01411-0820B-000	BOLT,STUD	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01411-10303-000	スタッドボルト	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01411-1030A-000	BOLT,STUD	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01421-10253-000	Stud bolt - Bolt, axle housing front	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01421-1025B-000	BOLT,STUD	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-08203-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-0820B-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-10253-000	Bolt - Bolt, rr swgarm bracket	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1025A-000	Bolt - Bolt, drive gear	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-10353-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1035A-000	Bolt - Bolt, fr fork upper	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-10403-000	Bolt - Bolt, rear lh (10x40)	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1040A-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1040B-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-10453-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1045B-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-10503-000	Bolt - Bolt, rh	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1050B-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-10803-000	Bolt - Bolt, tachometer	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1080A-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-10953-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
01550-1095A-000	Bolt	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
08316-10083-000	Nut	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
08316-1008B-000	NUT	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
08316-10103-000	Nut	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
08316-1010B-000	NUT	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
09103-10288-000	ボルト,10X105	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
09103-10414-000	BOLT(10X105)	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
09108-10124-000	BOLT,STUD	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
09160-10039-000	WASHER(10.5X22X2.3)	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
09160-10506-000	Washer - Washer, bal sprocket (10.5x22x2.3)	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
09180-10102-000	スペーサ,10.1X13.8X19	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
09180-10152-000	SPACER(10.2X14X19) - Spacer (id:10.1,od:13.8)	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11610-60G00-000	MOUNTING ENGINE RH	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11610-60G10-000	MOUNTING,ENG,R	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11620-60G00-000	MOUNTING ENG FRT	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11620-62G01-000	MOUNTING,ENG,L	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11630-60G01-000	MEMBER MOUNTING	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11630-65G51-000	MEMBER,MTG	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11641-60G00-000	BRACKET,ENG MTG,R	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11642-60G00-000	STIFFENER RH MTG BRKET	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11642-60G01-000	STIFFNER RH MTG BRKET	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11643-60G00-000	DAMPER	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11643-60G02-000	DAMPER,MOUNTING,R	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11650-60G00-000	BRACKET,ENG MTG NO.1,L	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11670-60G00-000	ブラケット,エンジンレフトマウンチング,NO.2	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11670-60G01-000	BRACKET,ENG MTG,L	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11684-60G00-000	CUSHION,MTG MEMBER	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11685-79J00-000	WASHER	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11685-84000-000	WASHER	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11710-60G00-000	MOUNTING ENGINE RR	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11710-62G00-000	MOUNTING,ENG RR	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11720-60G00-000	BUSH ENG FRT TORQUE	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11720-62G00-000	BUSH,ENG FR TORQUE	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11740-60G00-000	BRACKET,ENG RR MTG	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11760-60G00-000	BRACKET,ENG FR BUSH NO.1	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
11771-60G00-000	BRACKET,ENG FR BUSH NO.2	engine mounting (2WD:MT; 2WD:MT; 1994-12-01~1996-03-01)
