Search › Model › GA21S

GA21S

Suzuki CULTUS · 1994 · 2,693 parts · 121 categories

2,693 items

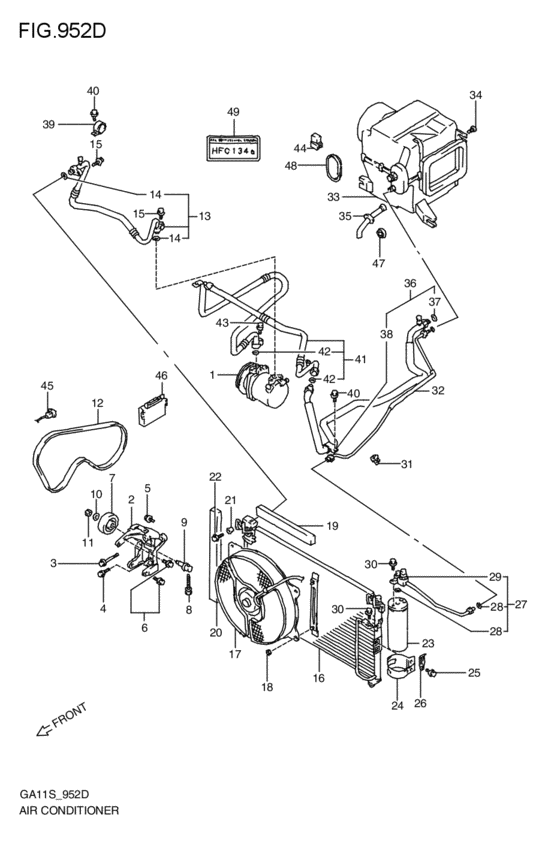

air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01) 75

#	OEM	Part name
1	95200-70CA1-000	COMPRESSOR ASSY
1	99000-99088-7CH	COMPRESSOR ASSY
1	95200-70CH1-000	COMPRESSOR ASSY
1	95533-70C00-000	HARNESS,COMPRESSOR JOINT
2	49120-60B20-000	BRACKET POWER STEERING
2	49120-60G10-000	BRACKET,POWER STEERING
3	09103-10236-000	BOLT(10X69)
4	09103-10229-000	BOLT(10X32) - Bolt, crankshaft (10x32)
5	09103-08254-000	BOLT(8X20) - Bolt, rear
6	01550-08253-000	Bolt, rear
6	01550-0825B-000	Bolt
6	01550-0825A-000	Bolt
7	49160-50G10-000	PULLEY,BELT TENSION
8	95912-60E10-000	BOLT,ADJUST
9	49161-60B10-000	BOLT,BELT TENSION PULLEY
10	08321-01103-000	Washer - Lock washer
10	08321-0110B-000	WASHER,LOCK - Washer, knuckle end
10	08321-0110A-000	WASHER,LOCK
11	08310-00103-000	Nut
11	08310-0010B-000	NUT
11	08310-0010A-000	NUT
12	95141-60G40-000	Vベルト,4PK995
12	95141-60G40-CDN	Belt,air cond.4pk995
12	17521-85300-000	V-BELT,4PK1010
13	95720-60G40-000	HOSE DISCHARGE
13	95720-60G41-000	HOSE,DISCHARGE
13	01550-0620B-000	Bolt - Bolt, inspection cap
14	95895-50G00-000	O-RING,D:2.4 ID:10.8
15	01550-06253-000	Bolt (6x25)
15	01550-0625B-000	Bolt - Bolt, head cover
15	01550-0625A-000	Bolt
16	95310-60G41-000	CONDESER
16	95310-65GC1-000	CONDENSER
17	95560-60G40-000	FAN UNIT CONDENSER
17	95560-63G41-000	FAN ASSY,COND
18	08316-10063-000	Nut
18	08316-1006B-000	NUT
19	95813-70B00-000	PACKING,CONDENSER
20	95761-84040-000	パッキング,コンデンサ
20	95813-81A00-000	PACKING,RADIATOR
21	95920-86400-000	BUSH
22	09116-06129-000	BOLT(6X30)
23	95330-72B00-000	RECEIVER DRYER
24	95351-60G40-000	BRACKET,RCVR
25	01550-06163-000	Bolt
25	01550-0616B-000	Bolt
25	01550-0616A-000	Bolt
26	09404-06429-000	CLAMP(L:45) - Clamp, coil lead wire
27	95732-60G60-000	Pipe,rcvr outlet
27	95732-60G61-000	PIPE,RECEIVER OUTLET
28	95891-50G00-000	O-RING,D:1.8 ID:6.7
29	95526-50G10-000	Switch, dual pressure
29	95526-50G30-000	SWITCH,DUAL PRESSURE
30	01550-06203-000	Bolt
31	09408-00149-000	Сlamp
31	09403-08406-000	CLAMP
32	95733-60G60-000	PIPE,COOLING UNIT INLET
33	95400-60G60-000	クーリングユニット
33	95400-65G60-000	COOLING UNIT
34	03541-06253-000	Screw, lower
34	03542-0625B-000	SCREW
35	95481-60G10-000	HOSE DRAIN
35	95481-60G11-000	HOSE,DRAIN
36	95741-60G40-000	PIPE,COOLING UNIT OUTLET
37	95896-50G00-000	O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)
38	95773-50F00-000	CLAMP,SUCT PIPE
39	95772-70C51-000	CLAMP,SUCT HOSE
41	95710-60G40-000	ホース,サクション
41	95710-60G41-000	HOSE,SUCTION
41	01550-0620A-000	Bolt
44	38860-60G00-000	RELAY ASSY
45	95521-60E50-000	SWITCH,A/C
46	95510-60G41-000	CONTROLLER ASSY
46	95510-60G42-000	CONTROLLER,A/C
49	95955-72B00-000	LABEL,REFRIGERANT

OEM	Part name	Category
01550-06163-000	Bolt	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-0616A-000	Bolt	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-0616B-000	Bolt	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-06203-000	Bolt	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-0620A-000	Bolt	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-0620B-000	Bolt - Bolt, inspection cap	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-06253-000	Bolt (6x25)	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-0625A-000	Bolt	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-0625B-000	Bolt - Bolt, head cover	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-08253-000	Bolt, rear	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-0825A-000	Bolt	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
01550-0825B-000	Bolt	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
03541-06253-000	Screw, lower	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
03542-0625B-000	SCREW	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
08310-00103-000	Nut	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
08310-0010A-000	NUT	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
08310-0010B-000	NUT	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
08316-10063-000	Nut	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
08316-1006B-000	NUT	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
08321-01103-000	Washer - Lock washer	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
08321-0110A-000	WASHER,LOCK	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
08321-0110B-000	WASHER,LOCK - Washer, knuckle end	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
09103-08254-000	BOLT(8X20) - Bolt, rear	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
09103-10229-000	BOLT(10X32) - Bolt, crankshaft (10x32)	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
09103-10236-000	BOLT(10X69)	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
09116-06129-000	BOLT(6X30)	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
09403-08406-000	CLAMP	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
09404-06429-000	CLAMP(L:45) - Clamp, coil lead wire	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
09408-00149-000	Сlamp	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
17521-85300-000	V-BELT,4PK1010	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
38860-60G00-000	RELAY ASSY	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
49120-60B20-000	BRACKET POWER STEERING	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
49120-60G10-000	BRACKET,POWER STEERING	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
49160-50G10-000	PULLEY,BELT TENSION	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
49161-60B10-000	BOLT,BELT TENSION PULLEY	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95141-60G40-000	Vベルト,4PK995	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95141-60G40-CDN	Belt,air cond.4pk995	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95200-70CA1-000	COMPRESSOR ASSY	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95200-70CH1-000	COMPRESSOR ASSY	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95310-60G41-000	CONDESER	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95310-65GC1-000	CONDENSER	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95330-72B00-000	RECEIVER DRYER	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95351-60G40-000	BRACKET,RCVR	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95400-60G60-000	クーリングユニット	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95400-65G60-000	COOLING UNIT	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95481-60G10-000	HOSE DRAIN	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95481-60G11-000	HOSE,DRAIN	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95510-60G41-000	CONTROLLER ASSY	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95510-60G42-000	CONTROLLER,A/C	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95521-60E50-000	SWITCH,A/C	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95526-50G10-000	Switch, dual pressure	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95526-50G30-000	SWITCH,DUAL PRESSURE	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95533-70C00-000	HARNESS,COMPRESSOR JOINT	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95560-60G40-000	FAN UNIT CONDENSER	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95560-63G41-000	FAN ASSY,COND	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95710-60G40-000	ホース,サクション	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95710-60G41-000	HOSE,SUCTION	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95720-60G40-000	HOSE DISCHARGE	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95720-60G41-000	HOSE,DISCHARGE	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95732-60G60-000	Pipe,rcvr outlet	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95732-60G61-000	PIPE,RECEIVER OUTLET	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95733-60G60-000	PIPE,COOLING UNIT INLET	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95741-60G40-000	PIPE,COOLING UNIT OUTLET	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95761-84040-000	パッキング,コンデンサ	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95772-70C51-000	CLAMP,SUCT HOSE	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95773-50F00-000	CLAMP,SUCT PIPE	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95813-70B00-000	PACKING,CONDENSER	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95813-81A00-000	PACKING,RADIATOR	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95891-50G00-000	O-RING,D:1.8 ID:6.7	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95895-50G00-000	O-RING,D:2.4 ID:10.8	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95896-50G00-000	O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95912-60E10-000	BOLT,ADJUST	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95920-86400-000	BUSH	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
95955-72B00-000	LABEL,REFRIGERANT	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
99000-99088-7CH	COMPRESSOR ASSY	air-conditioner (C,G,X,S,SA; C,G,X,S,SA; 1994-12-01~1996-03-01)
