Search › Model › G20
G20

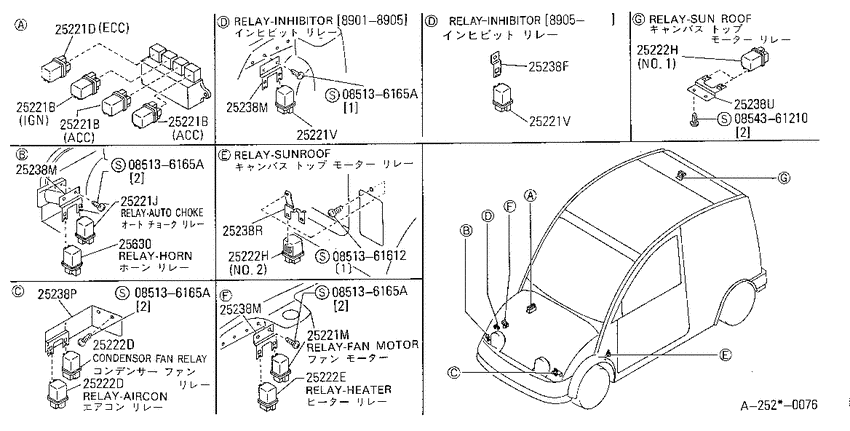

Relay (1989-01-01 ~ ; ALL) 14
| # | OEM | Part name |
|---|---|---|
| 25221 | 25230-89978 | Relay Assy-Aircon & Cooler |
| 25221 | 25230-W1300 | Relay Assy-Fuel Pump |
| 25221 | 25230-C9961 | Relay |
| 25221 | 25230-C9963 | Relay |
| 25222 | 25230-C9970 | Relay |
| 25238 | 25235-N8500 | Bracket-Circuit Breaker |
| 25238 | 25235-N853A | Bracket-Relay |
| 25238 | 25235-S5803 | Bracket-Relay |
| 25238 | 25235-48A00 | ブラケツト,リレ- |
| 25238 | 25235-21R10 | Bracket-Circuit Breaker |
| 25630 | 25630-C9960 | Relay-Horn |
| 85136165 | 08513-6165A | スクリユ-,タツピング |
| 851361612 | 08513-61612 | Bolt |
| 854361210 | 08543-61210 | スクリユ-,タツピング |
| OEM | Part name | Category |
|---|---|---|
| 08513-61612 | Bolt | Relay (1989-01-01 ~ ; ALL) |
| 08513-6165A | スクリユ-,タツピング | Relay (1989-01-01 ~ ; ALL) |
| 08543-61210 | スクリユ-,タツピング | Relay (1989-01-01 ~ ; ALL) |
| 25230-89978 | Relay Assy-Aircon & Cooler | Relay (1989-01-01 ~ ; ALL) |
| 25230-C9961 | Relay | Relay (1989-01-01 ~ ; ALL) |
| 25230-C9963 | Relay | Relay (1989-01-01 ~ ; ALL) |
| 25230-C9970 | Relay | Relay (1989-01-01 ~ ; ALL) |
| 25230-W1300 | Relay Assy-Fuel Pump | Relay (1989-01-01 ~ ; ALL) |
| 25235-21R10 | Bracket-Circuit Breaker | Relay (1989-01-01 ~ ; ALL) |
| 25235-48A00 | ブラケツト,リレ- | Relay (1989-01-01 ~ ; ALL) |
| 25235-N8500 | Bracket-Circuit Breaker | Relay (1989-01-01 ~ ; ALL) |
| 25235-N853A | Bracket-Relay | Relay (1989-01-01 ~ ; ALL) |
| 25235-S5803 | Bracket-Relay | Relay (1989-01-01 ~ ; ALL) |
| 25630-C9960 | Relay-Horn | Relay (1989-01-01 ~ ; ALL) |
