Search › Model › G20
G20

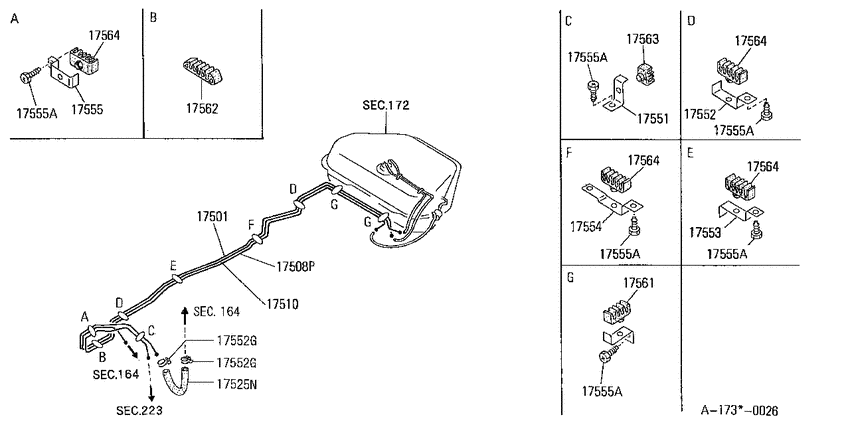

Fuel piping (1989-01-01 ~ ; ALL) 16
| # | OEM | Part name |
|---|---|---|
| 17501 | 17506-48A00 | チユ-ブ,フユ-エル |
| 17508 | 17508-48A00 | チユ-ブ,エバポレーシヨン |
| 17510 | 17510-48A00 | チユ-ブ,フユ-エル リタ-ン |
| 17525 | 17525-48A01 | ホース,フユーエル |
| 17551 | 17571-01A02 | Clip |
| 17552 | 17571-06A00 | Clip-Fuel Tube, No 1 |
| 17552 | 01555-00181 | CLIP |
| 17552 | 01555-00791 | CLAMP |
| 17553 | 17571-06A01 | Clip-Fuel Tube, No 2 |
| 17554 | 17571-06A04 | Clip-Fuel Tube, No 6 |
| 17555 | 17571-06A03 | Clip-Fuel Tube, No 4 |
| 17555 | 01466-00063 | Bolt |
| 17561 | 01561-00321 | INSULATOR |
| 17562 | 17548-01A00 | Insulator-Fuel Tube |
| 17563 | 46275-M7000 | Clamp |
| 17564 | 46272-M7000 | Insulator |
| OEM | Part name | Category |
|---|---|---|
| 01466-00063 | Bolt | Fuel piping (1989-01-01 ~ ; ALL) |
| 01555-00181 | CLIP | Fuel piping (1989-01-01 ~ ; ALL) |
| 01555-00791 | CLAMP | Fuel piping (1989-01-01 ~ ; ALL) |
| 01561-00321 | INSULATOR | Fuel piping (1989-01-01 ~ ; ALL) |
| 17506-48A00 | チユ-ブ,フユ-エル | Fuel piping (1989-01-01 ~ ; ALL) |
| 17508-48A00 | チユ-ブ,エバポレーシヨン | Fuel piping (1989-01-01 ~ ; ALL) |
| 17510-48A00 | チユ-ブ,フユ-エル リタ-ン | Fuel piping (1989-01-01 ~ ; ALL) |
| 17525-48A01 | ホース,フユーエル | Fuel piping (1989-01-01 ~ ; ALL) |
| 17548-01A00 | Insulator-Fuel Tube | Fuel piping (1989-01-01 ~ ; ALL) |
| 17571-01A02 | Clip | Fuel piping (1989-01-01 ~ ; ALL) |
| 17571-06A00 | Clip-Fuel Tube, No 1 | Fuel piping (1989-01-01 ~ ; ALL) |
| 17571-06A01 | Clip-Fuel Tube, No 2 | Fuel piping (1989-01-01 ~ ; ALL) |
| 17571-06A03 | Clip-Fuel Tube, No 4 | Fuel piping (1989-01-01 ~ ; ALL) |
| 17571-06A04 | Clip-Fuel Tube, No 6 | Fuel piping (1989-01-01 ~ ; ALL) |
| 46272-M7000 | Insulator | Fuel piping (1989-01-01 ~ ; ALL) |
| 46275-M7000 | Clamp | Fuel piping (1989-01-01 ~ ; ALL) |
