G10

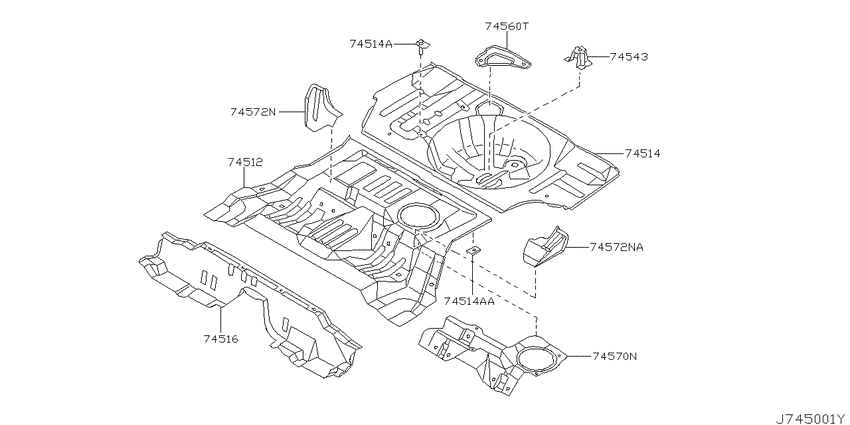

Floor panel (rear) (2003-02-01 ~ ; 4WD; S) 6
| # | OEM | Part name |
|---|---|---|
| 74512 | 74512-4M430 | Floor-Rear, Front |
| 74514 | 74514-4M430 | Floor-Rear, Rear |
| 74560 | 74560-4M420 | Bracket-Muffler Mounting |
| 74570 | 74574-4M400 | Reinforce-Anchor Belt, Rear Floor |
| 74572 | 74520-4M400 | Support-Rear Seat Back Lower, Rh |
| 74572 | 74521-4M400 | Support-Rear Seat Back Lower, Lh |
| OEM | Part name | Category |
|---|---|---|
| 74512-4M430 | Floor-Rear, Front | Floor panel (rear) (2003-02-01 ~ ; 4WD; S) |
| 74514-4M430 | Floor-Rear, Rear | Floor panel (rear) (2003-02-01 ~ ; 4WD; S) |
| 74520-4M400 | Support-Rear Seat Back Lower, Rh | Floor panel (rear) (2003-02-01 ~ ; 4WD; S) |
| 74521-4M400 | Support-Rear Seat Back Lower, Lh | Floor panel (rear) (2003-02-01 ~ ; 4WD; S) |
| 74560-4M420 | Bracket-Muffler Mounting | Floor panel (rear) (2003-02-01 ~ ; 4WD; S) |
| 74574-4M400 | Reinforce-Anchor Belt, Rear Floor | Floor panel (rear) (2003-02-01 ~ ; 4WD; S) |
