Search › Model › FZJ80

FZJ80

Toyota LAND-CRUISER · 1992 · 5,535 parts · 264 categories

5,535 items

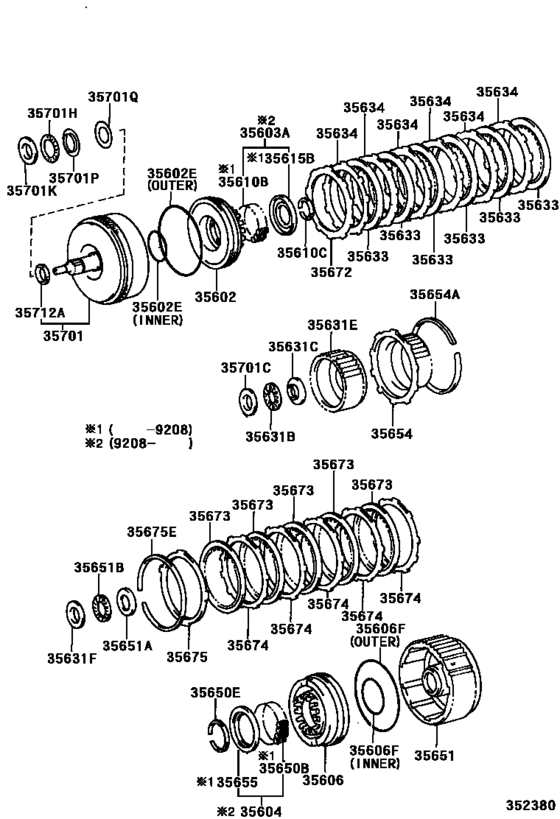

Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC) 34

#	OEM	Part name
35602	35602-36020	Piston Sub-Assy, Front Clutch
35602	90301-62004	Ring, O (For Front Clutch Piston)
35602	90301-99027	Ring, O (For Overdrive Direct Clutch Piston)
35603	35603-60010	Spring Sub-Assy, Forward Clutch Return
35604	35604-60010	Spring Sub-Assy, Forward Clutch Return
35606	35606-60010	Piston Sub-Assy, Rear Clutch
35606	90301-99028	Ring, O (For Rear Clutch Piston)
35610	90520-50001	Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)
35631	90374-32005	Bearing, Thrust(For Front Clutch Hub)
35631	35789-36090	Race, Thrust Bearing(For Front Clutch Hub Front)
35631	35631-60030	Hub, Front Clutch
35631	35789-36020	Race, Thrust Bearing (For Overdrive Case Front)
35633	35633-60020	Disc, Clutch (For Front Clutch)
35634	35634-36010	Plate, Clutch (For Overdrive)
35634	35634-36020	Plate, Front Clutch
35634	35634-36040	Plate, Front Clutch
35634	35634-36050	Plate, Front Clutch
35651	35651-60010	Drum, Rear Clutch
35654	35654-36011	Hub, Rear Clutch
35654	90521-99017	Ring, Hole Snap (For Overdrive Clutch Flange)
35672	35672-36010	Plate, Clutch Cushion
35673	35633-36040	Disc, Clutch (For Front Clutch)
35675	35675-60010	Flange, Overdrive Clutch
35675	35675-60020	Flange, Overdrive Clutch
35675	35675-60050	Flange, Overdrive Clutch
35675	35675-60060	Flange, Overdrive Clutch
35701	35701-60050	Shaft Sub-Assy, Input
35701	90374-34001	Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)
35701	35789-36100	Race, Thrust Bearing (For Input Shaft)
35701	35789-36110	Race, Thrust Bearing (For Input Shaft)
35701	35789-36120	Race, Thrust Bearing (For Input Shaft)
35701	35789-36130	Race, Thrust Bearing (For Input Shaft)
35701	35789-36140	Race, Thrust Bearing (For Input Shaft)
35712	35712-36010	Ring, Oil Seal (For Overdrive Planetary Ring Gear Flange)

OEM	Part name	Category
35602-36020	Piston Sub-Assy, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35603-60010	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35604-60010	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35606-60010	Piston Sub-Assy, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35631-60030	Hub, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35633-36040	Disc, Clutch (For Front Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35633-60020	Disc, Clutch (For Front Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35634-36010	Plate, Clutch (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35634-36020	Plate, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35634-36040	Plate, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35634-36050	Plate, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35651-60010	Drum, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35654-36011	Hub, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35672-36010	Plate, Clutch Cushion	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35675-60010	Flange, Overdrive Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35675-60020	Flange, Overdrive Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35675-60050	Flange, Overdrive Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35675-60060	Flange, Overdrive Clutch	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35701-60050	Shaft Sub-Assy, Input	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35712-36010	Ring, Oil Seal (For Overdrive Planetary Ring Gear Flange)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35789-36020	Race, Thrust Bearing (For Overdrive Case Front)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35789-36090	Race, Thrust Bearing(For Front Clutch Hub Front)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35789-36100	Race, Thrust Bearing (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35789-36110	Race, Thrust Bearing (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35789-36120	Race, Thrust Bearing (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35789-36130	Race, Thrust Bearing (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
35789-36140	Race, Thrust Bearing (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
90301-62004	Ring, O (For Front Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
90301-99027	Ring, O (For Overdrive Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
90301-99028	Ring, O (For Rear Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
90374-32005	Bearing, Thrust(For Front Clutch Hub)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
90374-34001	Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
90520-50001	Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)
90521-99017	Ring, Hole Snap (For Overdrive Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC)

Source: Public OEM parts-catalog data
Variants: 2 / 40
Category: 264
Collected: 2026-07-23
