FZJ75

Toyota LAND-CRUISER · 1992 · 3,666 parts · 199 categories
FZJ75 ×

← Back to categories

3,666 items

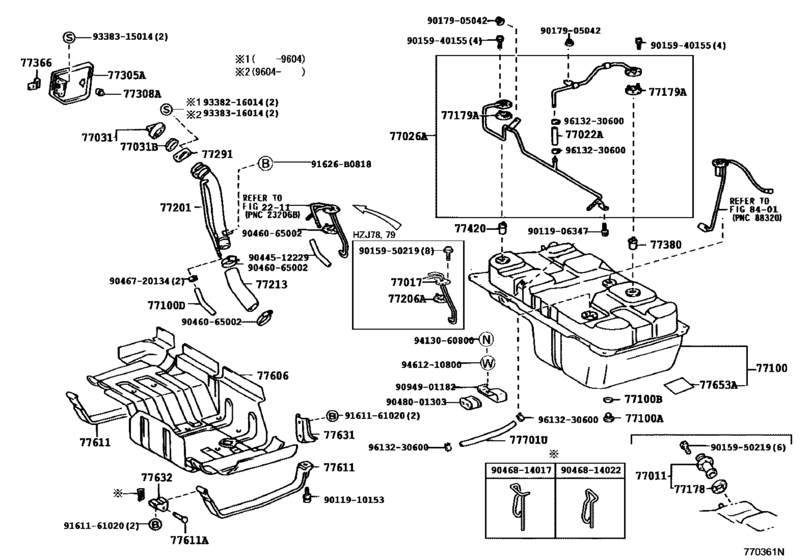

Fuel Tank & Tube ([01.1992 - 01.2007] FUEL TANK (9201-0701)FZJ75,78,79..EFI) 49
#OEMPart name
77022 77249-60090 Hose, Fuel(For Fuel Evaporative Separator)
77031 77310-48010 Cap Assy, Fuel Tank
77031 77316-16010 Gasket (For Fuel Tank Cap)
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77100 95311-13022 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-60390 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-60050 Hose, Fuel Tank Sub Inlet
77291 77293-60060 Packing, Fuel Tank Support, Upper
77305 77305-90K01 Lid Sub-Assy, Fuel Filler Opening
77308 90541-05018 Cushion(For Fuel Inlet Box Cover)
77366 77366-12010 Spring, Fuel Filler Opening Lid Hinge
77380 77380-26010 Valve Assy, Fuel Cut Off
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77606 77606-60060 Protector Sub-Assy, Fuel Tank, No.1
77611 77601-60160 Band, Fuel Tank
77611 77602-60070 Band, Fuel Tank
77611 90240-10011 Pin (For Fuel Tank Band)
77611 90249-14002 Pin (For Fuel Tank Band)
77631 77616-60080 Bracket, Fuel Tank, No.1
77632 77615-60050 Bracket, Fuel Tank, No.2
77701 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77701 95337-06020 Hose, Differential Pressure Control
91626 91626-B0818 New Genuine Part
9011906347 90119-06347 New Genuine Part
9011910153 90119-10153 BOLT
9015940155 90159-40155 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9017905042 90179-05042 NUT
9044512229 90445-12229 Hose, Fuel
9046065002 90460-65002 Clamp Or Clip(For Air Hose, No.1)
9046720134 90467-20134 Clip(For Ventilation Hose No.2)
9046814017 90468-14017 Clip, No.2(For Parking Brake)
9046814022 90468-14022 CLIP
9048001303 90480-01303 Grommet, Fuel Hose
9094901182 90949-01182 Plate, Fuel Tube Grommet Support
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9338216014 93382-16014 SCREW
9338315014 93383-15014 Screw(For Steering Tilt Lever)
9338316014 93383-16014 New Genuine Part
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
