FZJ70

Toyota LAND-CRUISER · 1992 · 3,982 parts · 203 categories
FZJ70 ×

← Back to categories

3,982 items

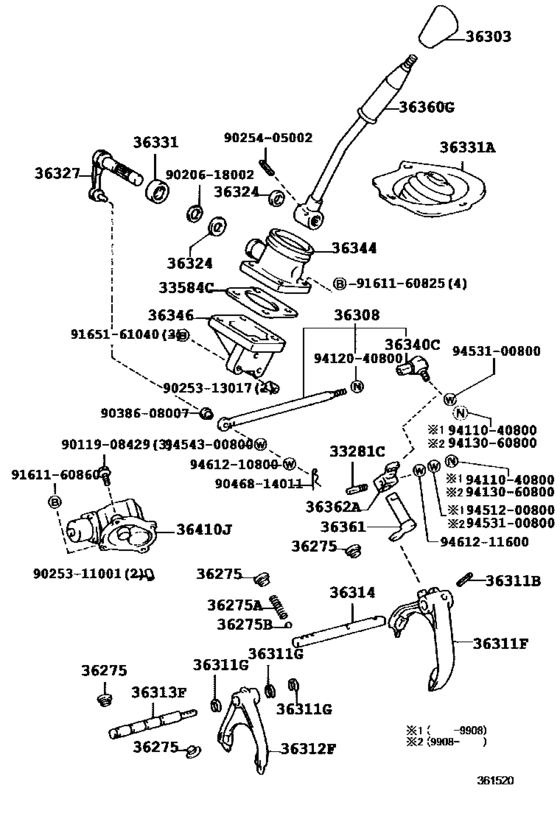

Transfer Lever & Shift Rod ([01.1992 - 06.2001] W(ELECTRIC CONTROL TRANSFER) (9201-9908)FZJ75..ARL ; (9201-9911)FZJ73,75..CBR ; (9201-0106)FZJ70) 49
#OEMPart name
33281 33281-16020 Pin, Lever Lock (For Shift Outer Lever)
33584 33584-60020 Gasket,transfer Control Shift Lever Retainer
36275 90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)
36275 90501-12128 Spring, Compression (For Shift Detent Ball)
36275 90501-14134 Spring, Compression (For Shift Detent Ball)
36275 90501-18090 Spring, Compression (For Shift Detent Ball)
36275 90360-08009 Ball, Reverse Shift Restrict
36275 90360-10003 Ball(For Transmission Oil Pump Cover)
36303 36303-60161-B0 Knob Sub-Assy, Shift Lever
36303 36303-60161-C0 Knob Sub-Assy, Shift Lever
36303 36303-60161-E1 Knob Sub-Assy, Shift Lever
36308 36308-60210 Rod Sub-Assy, High & Low Shift
36311 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
36311 36311-60100 Fork, Transfer Gear Shift, No.1
36311 90520-13004 Ring, Shaft Snap (For Transfer Gear Shift Fork)
36312 36302-60150 Fork, Transfer Gear Shift, No.2
36313 36313-60090 Shaft, Transfer Front Drive Shift Fork
36314 36314-60050 Shaft, Transfer High And Low Shift Fork
36324 36324-60060 Bush, Transfer Shift Lever
36327 36327-60100 Shaft, Transfer Shift Lever
36331 36331-60040 Boot, Transfer Shift Lever
36331 36331-60030 Boot, Transfer Shift Lever, No.2
36340 33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)
36344 36344-60011 Retainer, Transfer Control Shift Lever
36346 36346-60011 Bracket, Transfer Control Shift Lever Retainer
36360 36360-60320 Lever Assy, Transfer High & Low Shift
36361 36361-60040 Lever, Transfer Shift, Inner
36362 36362-60030 Lever, Transfer Shift, Outer
9011908429 90119-08429 Bolt, W/washer(For Transmission Case Cover)
9020618002 90206-18002 RING
9025311001 90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)
9025313017 90253-13017 Pin, Ring W/head
9025405002 90254-05002 Pin, Slotted Spring(For Shift Lever Shaft Set)
9038608007 90386-08007 Bush (For Accelerator Link)
9046814011 90468-14011 Clip, No.2(For Parking Brake)
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160860 91611-60860 Bolt(For Rocker Support Set)
9165161040 91651-61040 Bolt (For Transfer Case)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
9454300800 94543-00800 New Genuine Part
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
9461211600 94612-11600 Washer, Shift Lever Shaft Housing, No.2
