Search › Model › FZJ70

FZJ70

Toyota LAND-CRUISER · 1992 · 3,982 parts · 203 categories
FZJ70 ×

← Back to categories

3,982 items

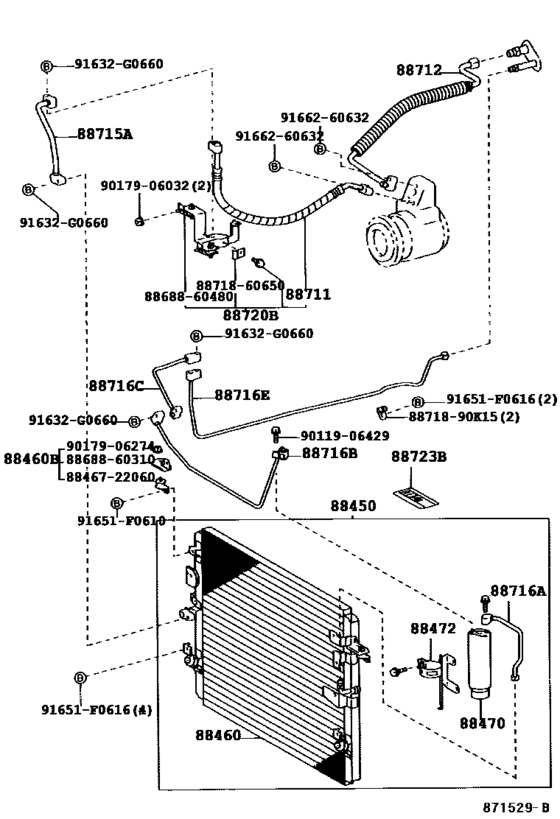

Heating & Air Conditioning - Cooler Piping ([09.1997 - 05.2004] MAKER OPTION (9201-9908)FZJ7#..LHD..CBR ; (9709-0405)FZJ70,73 ,75..GEN..EFI) 25
#OEMPart name
88460 88460-60180 Condenser Assy, Cooler
88460 88409-60020 Bracket, Cooler Condenser, No.1
88470 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-60090 Bracket, Receiver Tank, No.1
88711 88711-60320 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-60490 Hose, Cooler Refrigerant Suction, No.1
88715 88715-60091 Pipe, Cooler Refrigerant Discharge, A
88716 88716-6A290 Pipe, Cooler Refrigerant Liquid, A
88716 88716-6A201 Pipe, Cooler Refrigerant Liquid, B
88716 88716-6A210 Pipe, Cooler Refrigerant Liquid, E
88723 88723-20040 Label, Cooler Service Caution
91632 91632-G0660 New Genuine Part
91651 91651-F0610 New Genuine Part
91651 91651-F0616 BOLT
8871890 88718-90K15 Pipe, Cooler Refrigerant Suction, No.2
8846722060 88467-22060 Cushion, Cooler Condenser, No.1
8868860310 88688-60310 Bracket, Cooler Diaphragm
8868860480 88688-60480 Bracket, Cooler Diaphragm
8871860650 88718-60650 Pipe, Cooler Refrigerant Suction, No.2
9011906429 90119-06429 New Genuine Part
9011906429 90119-06553 New Genuine Part
9011906429 91651-F0625 BOLT WWASHER
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9166260632 91662-60632 New Genuine Part
